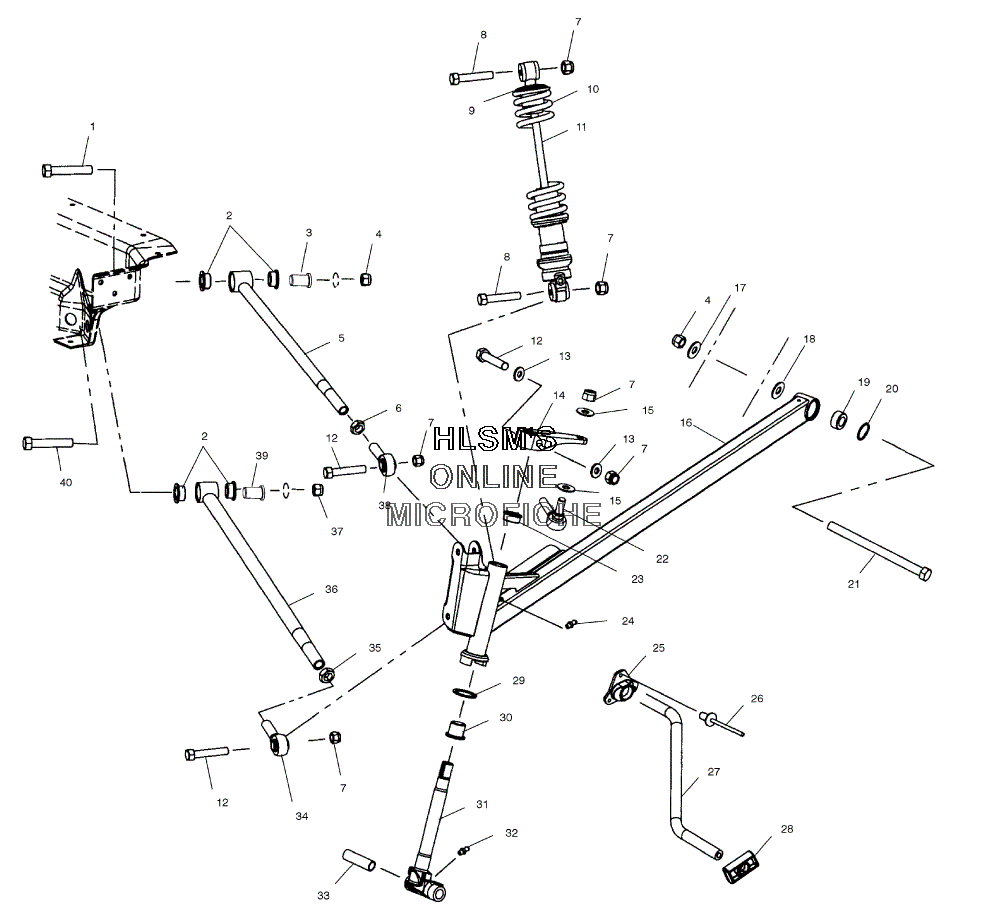

SUSPENSION - FRONT для Polaris 600 XC EDGE F/O (S03NP6ES) - 2003 года выпуска

№

Артикул

Название
1

7517980 BOLT

BOLT
2

5434036 BUSHING, PIVOT, INNER

BUSHING, PIVOT, INNER
3

5132779 BUSHING - SHLDR

BUSHING - SHLDR
4

7547066 NUT

NUT
5

1820679-067 RADIUS ROD, UPPER (BLACK)

RADIUS ROD, UPPER (BLACK)
5

1820679-216 WELD - RADIUS ROD, UPPER, (YELLOW)

WELD - RADIUS ROD, UPPER, (YELLOW)
6

7542520 NUT, JAM

NUT, JAM
7

7542439 NUT, NYLOK

NUT, NYLOK
8

7515433 SCREW

SCREW
9

5630580 RETAINER, SPRING, SLOTTED

RETAINER, SPRING, SLOTTED
10

7041950-067 SPRING - COMP, 68/160#, 11.5, BLACK

SPRING - COMP, 68/160#, 11.5, BLACK
11

7041976 SHOCK - IFS, IFP, 11X16.25, ALUM, AR

SHOCK - IFS, IFP, 11X16.25, ALUM, AR
12

7517583 SCREW

SCREW
13

7555832 WASHER

WASHER
14

5132728 ARM - STEERING, MACHINED

ARM - STEERING, MACHINED
15

7555797 WASHER, FLAT

WASHER, FLAT
16

1821165-293 ASSY. - TRAILING ARM, SVC, (RED) (LEFT) [INCL. 19, 20)

ASSY. - TRAILING ARM, SVC, (RED) (LEFT) [INCL. 19, 20)
16

1821166-293 ASSY. - TRAILING ARM, SVC, (RED) (RIGHT) [INCL. 19, 20)

ASSY. - TRAILING ARM, SVC, (RED) (RIGHT) [INCL. 19, 20)
16

1821165-216 ASSY. - TRAILING ARM, SVC (LEFT) (YELLOW) [INCL. 19, 20)

ASSY. - TRAILING ARM, SVC (LEFT) (YELLOW) [INCL. 19, 20)
16

1821166-216 ASSY. - TRAILING ARM, SVC (RIGHT) (YELLOW) [INCL. 19, 20)

ASSY. - TRAILING ARM, SVC (RIGHT) (YELLOW) [INCL. 19, 20)
16

1821165-385 ASSY. - TRAILING ARM, SVC, (CLOUDSILVER) [INCL. 19, 20)

ASSY. - TRAILING ARM, SVC, (CLOUDSILVER) [INCL. 19, 20)
16

1821166-385 ASSY. - TRAILING ARM, SVC, (CLOUDSILVER) [INCL. 19, 20)

ASSY. - TRAILING ARM, SVC, (CLOUDSILVER) [INCL. 19, 20)
17

7555820 WASHER, FLAT

WASHER, FLAT
18

5132364 CUP, TRAILING ARM MNT

CUP, TRAILING ARM MNT
19

7061042 BEARING - SPHERICAL, 7/16, PLASTIC

BEARING - SPHERICAL, 7/16, PLASTIC
20

7710437 RING, RETAINING

RING, RETAINING
21

7512099 SCREW

SCREW
22

7061057 ROD END - 3/8, PL, 75Ш, 1.00 (RIGHT)

ROD END - 3/8, PL, 75Ш, 1.00 (RIGHT)
23

3573909 BUSHING - FLANGE

BUSHING - FLANGE
24

7080433 FITTING, LUBRICATION, THREADED

FITTING, LUBRICATION, THREADED
25

5433234 BUSHING - TORSION BAR

BUSHING - TORSION BAR
26

7621452 RIVET

RIVET
27

5244415-067 BAR, TRSN, 1/2, 42.5 (BLACK)

BAR, TRSN, 1/2, 42.5 (BLACK)
28

5434369 SLIDE - TORSION BAR, 1/2, ANTIRATTL

SLIDE - TORSION BAR, 1/2, ANTIRATTL
29

7556509 BUSHING

BUSHING
30

3574208 BUSHING, FLANGED

BUSHING, FLANGED
31

6230225-067 SHAFT - SPINDLE, W/STEER STOP (BLACK)

SHAFT - SPINDLE, W/STEER STOP (BLACK)
32

7080306 FITTING, LUBE.W/BALL CK.

FITTING, LUBE.W/BALL CK.
33

5010158 BUSHING, PIVOT

BUSHING, PIVOT
34

7061060 ROD END, RADIUS, 1/2

ROD END, RADIUS, 1/2
35

7542711 NUT - JAM

NUT - JAM
36

1820677-067 RADIUS ROD, LOWER (BLACK)

RADIUS ROD, LOWER (BLACK)
36

1820677-216 WELD - RADIUS ROD, LOWER, (YELLOW)

WELD - RADIUS ROD, LOWER, (YELLOW)
37

7547065 NUT

NUT
38

7061061 ROD END, RADIUS, 7/16

ROD END, RADIUS, 7/16
39

5132780 BUSHING - SHLDR

BUSHING - SHLDR
40

7512684 BOLT

BOLT
