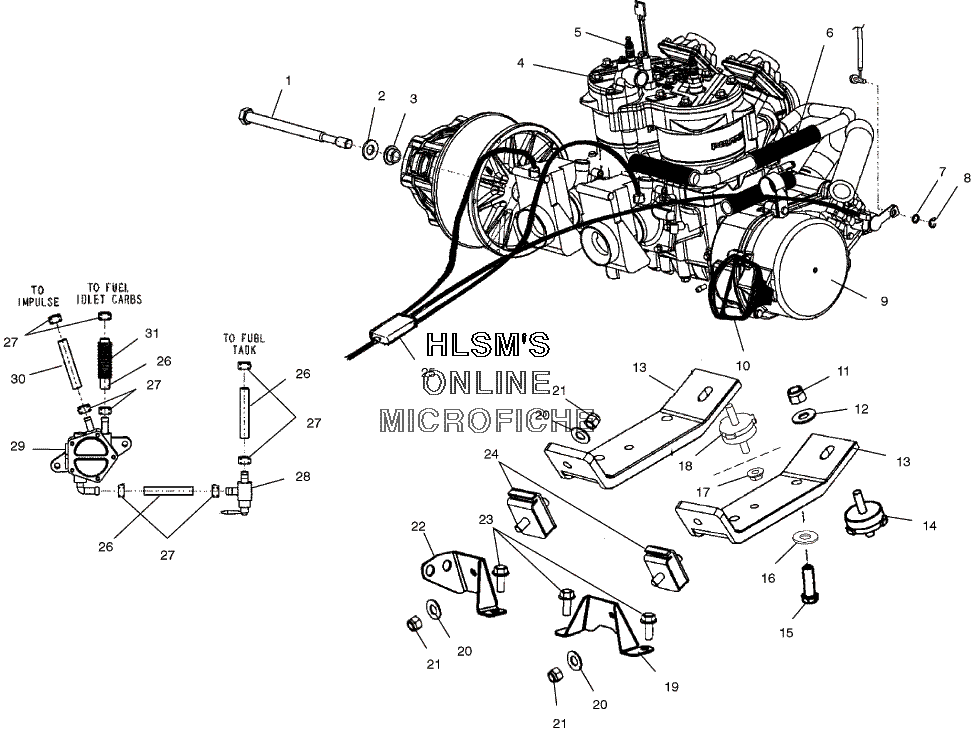

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 RMK 144 (S03NK6ES) - 2003 года выпуска
‹-+›
-
№АртикулНазвание
-
17517501 SCREWSCREW
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
42202256 SHORT BLOCK ASSEMBLYSHORT BLOCK ASSEMBLY
-
53070190 SP.PLUG, CHAMPION RN57Y CCSP.PLUG, CHAMPION RN57Y CC
-
65521398-13 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
77555944 WASHERWASHER
-
87710427 RING E, RETAINERRING E, RETAINER
-
95811485 FOIL TAPE, 5.5"DIAFOIL TAPE, 5.5"DIA
-
105431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
117542451 NUT, NYLOKNUT, NYLOK
-
127555893 WASHER, FLATWASHER, FLAT
-
135245465 STRAP ENGINE MOUNT, S44 (LEFT)STRAP ENGINE MOUNT, S44 (LEFT)
-
135245474 STRAP ENGINE MOUNT, S44 (RIGHT)STRAP ENGINE MOUNT, S44 (RIGHT)
-
143021290 MOUNT ENGINE, 3/8-16 50 DURMOUNT ENGINE, 3/8-16 50 DUR
-
157512539 BOLTBOLT
-
167553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
177547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
183021220 MOUNT ENGINEMOUNT ENGINE
-
195245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
207555806 WASHER, FLATWASHER, FLAT
-
217547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
221013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
237517854 SCREWSCREW
-
243021206 MOUNT ENGINE RECTMOUNT ENGINE RECT
-
257080867 CABLE, THROTTLECABLE, THROTTLE
-
268350017-600 FUEL, LINE ETHER 5/16" (RED)FUEL, LINE ETHER 5/16" (RED)
-
277080003 CLAMP, HOSECLAMP, HOSE
-
287052268 VLV, FUEL SHUTOFF (5/16 ID)VLV, FUEL SHUTOFF (5/16 ID)
-
292520275 PUMP FUEL, 5/16 (INNER/OUTER)PUMP FUEL, 5/16 (INNER/OUTER)
-
308450040-600 LINE FUEL (1/4 ID/600 CM.)LINE FUEL (1/4 ID/600 CM.)
-
318360052-15 TUBING, CONVOLUTEDTUBING, CONVOLUTED
