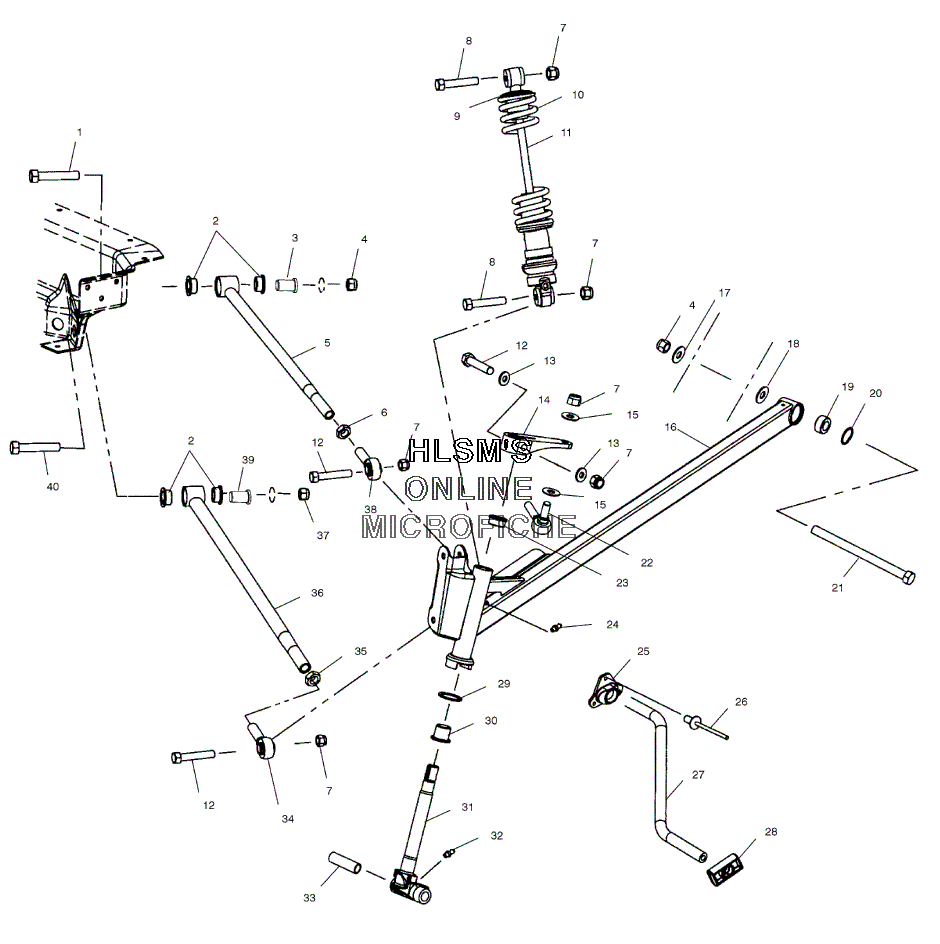

SUSPENSION - FRONT для Polaris 500 XC EDGE F/O (S03NP5CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517980 BOLT
    BOLT
  • 2
    5434036 BUSHING, PIVOT (INNER)
    BUSHING, PIVOT (INNER)
  • 3
    5132779 BUSHING, SHOULDER
    BUSHING, SHOULDER
  • 4
    7547066 NUT, NYLOK
    NUT, NYLOK
  • 5
    1820679-067 RADIUS ROD (UPPER/BLACK)
    RADIUS ROD (UPPER/BLACK)
  • 5
    1820679-216 WELD, RADIUS ROD (UPPER/YELLOW)
    WELD, RADIUS ROD (UPPER/YELLOW)
  • 6
    7542520 NUT JAM
    NUT JAM
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7515433 SCREW
    SCREW
  • 9
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 10
    7041950-067 SPRING COMP (BLACK)
    SPRING COMP (BLACK)
  • 11
    7041976 SHOCK, IFS IFP ALUMINUM AR
    SHOCK, IFS IFP ALUMINUM AR
  • 12
    7517583 SCREW
    SCREW
  • 13
    7555832 WASHER
    WASHER
  • 14
    5132728 ARM, STEERING MACHINED
    ARM, STEERING MACHINED
  • 15
    7555797 WASHER, FLAT
    WASHER, FLAT
  • 16
    1821165-293 TRAILING ARM, ASSY SERVICE (LEFT/RED) (INCL. 19, 20)
    TRAILING ARM, ASSY SERVICE (LEFT/RED) (INCL. 19, 20)
  • 16
    1821166-293 TRAILING ARM, ASSY SERVICE (RIGHT/RED) (INCL. 19, 20)
    TRAILING ARM, ASSY SERVICE (RIGHT/RED) (INCL. 19, 20)
  • 16
    1821165-216 TRAILING ARM, ASSY SERVICE (LEFT/S YELLOW) (INCL. 19, 20)
    TRAILING ARM, ASSY SERVICE (LEFT/S YELLOW) (INCL. 19, 20)
  • 16
    1821166-216 TRAILING ARM, ASSY SERVICE (RIGHT/S YELLOW) (INCL. 19, 20)
    TRAILING ARM, ASSY SERVICE (RIGHT/S YELLOW) (INCL. 19, 20)
  • 16
    1821165-385 TRAILING ARM, ASSY SERVICE (LEFT/CLOUD SILVER) (INCL. 19, 20)
    TRAILING ARM, ASSY SERVICE (LEFT/CLOUD SILVER) (INCL. 19, 20)
  • 16
    1821166-385 TRAILING ARM, ASSY SERVICE (RIGHT/CLOUD SILVER) (INCL. 19, 20)
    TRAILING ARM, ASSY SERVICE (RIGHT/CLOUD SILVER) (INCL. 19, 20)
  • 17
    7555820 WASHER, FLAT
    WASHER, FLAT
  • 18
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 19
    7061042 BEARING, SPHERICAL 7/16 PLASTIC
    BEARING, SPHERICAL 7/16 PLASTIC
  • 20
    7710437 RING, RETAINING
    RING, RETAINING
  • 21
    7512099 SCREW
    SCREW
  • 22
    7061057 ROD, END (RIGHT)
    ROD, END (RIGHT)
  • 23
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 24
    7080433 ZERK, FITTING THREADED
    ZERK, FITTING THREADED
  • 25
    5433234 BUSHING, TORSION BAR
    BUSHING, TORSION BAR
  • 26
    7621452 RIVET
    RIVET
  • 27
    5244415-067 BAR, TORSION (BLACK)
    BAR, TORSION (BLACK)
  • 28
    5434369 SLIDE, TORSION BAR 1/2 ANTIRATTLE
    SLIDE, TORSION BAR 1/2 ANTIRATTLE
  • 29
    7556509 BUSHING
    BUSHING
  • 30
    3574208 BUSHING, FLANGED
    BUSHING, FLANGED
  • 31
    6230225-067 SHAFT, SPINDLE W/STEER STOP (BLACK)
    SHAFT, SPINDLE W/STEER STOP (BLACK)
  • 32
    7080306 FITTING, LUBE. W/BALL CHECK
    FITTING, LUBE. W/BALL CHECK
  • 33
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 34
    7061060 ROD END, RADIUS 1/2
    ROD END, RADIUS 1/2
  • 35
    7542711 NUT, JAM
    NUT, JAM
  • 36
    1820677-067 RADIUS ROD (LOWER/BLACK)
    RADIUS ROD (LOWER/BLACK)
  • 36
    1820677-216 WELD, RADIUS ROD (LOWER) (YELLOW)
    WELD, RADIUS ROD (LOWER) (YELLOW)
  • 37
    7547065 NUT, NYLOK
    NUT, NYLOK
  • 38
    7061061 ROD END, RADIUS 7/16
    ROD END, RADIUS 7/16
  • 39
    5132780 BUSHING, SHOULDER
    BUSHING, SHOULDER
  • 40
    7512684 BOLT
    BOLT
