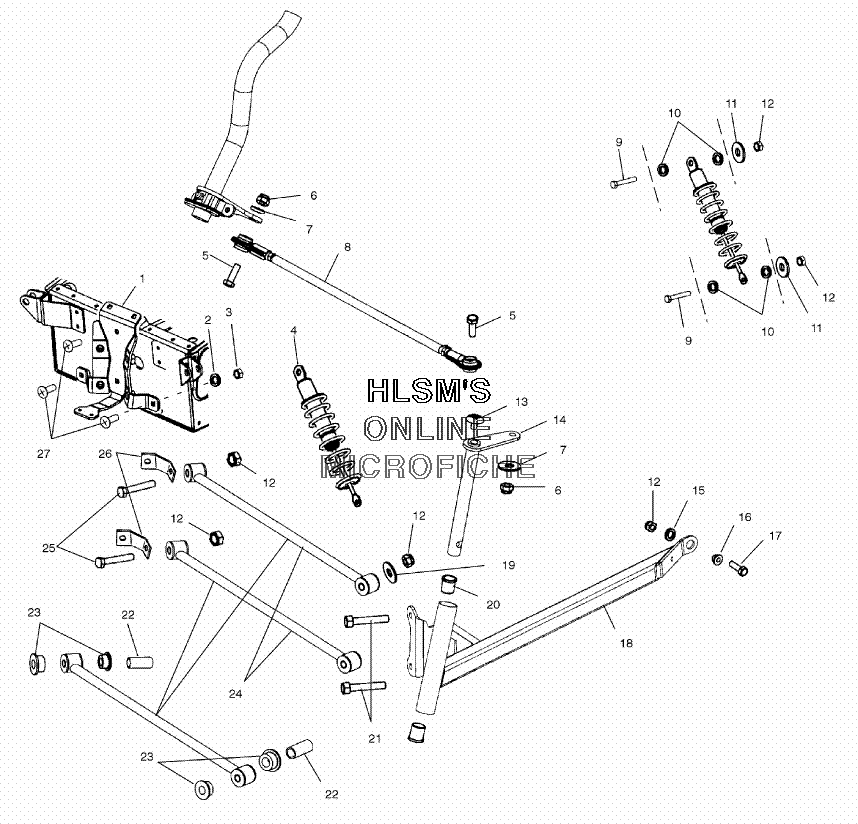

SUSPENSION - FRONT W/ STEERING для Polaris 120 XC SP (S03WB1AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5243858-067 BRACKET, RADIUS ROD/STRPST MOUNT (BLACK)
    BRACKET, RADIUS ROD/STRPST MOUNT (BLACK)
  • 2
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 3
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 4
    1820768-293 SHOCK (IFS) (RED)
    SHOCK (IFS) (RED)
  • 5
    7515534 SCREW
    SCREW
  • 6
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 7
    7558403 WASHER WROUGHT
    WASHER WROUGHT
  • 8
    1820767 TIE ROD ASSY
    TIE ROD ASSY
  • 9
    7517745 BOLT, SHOULDER
    BOLT, SHOULDER
  • 10
    5433624 BUSHING, SHOCK MOUNT
    BUSHING, SHOCK MOUNT
  • 11
    7556160 WASHER
    WASHER
  • 12
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 13
    5433481 CAP, SPINDLE
    CAP, SPINDLE
  • 14
    1820764 SPINDLE
    SPINDLE
  • 15
    5433593 BUSHING (EUROTHANE)
    BUSHING (EUROTHANE)
  • 16
    5132329 BUSHING
    BUSHING
  • 17
    7512310 SCREW
    SCREW
  • 18
    1820774-216 WELD, TRAIL ARM (SCRAMBLER YELLOW/LEFT)
    WELD, TRAIL ARM (SCRAMBLER YELLOW/LEFT)
  • 18
    1820775-216 WELD, TRAIL ARM (SCRAMBLER YELLOW/RIGHT)
    WELD, TRAIL ARM (SCRAMBLER YELLOW/RIGHT)
  • 19
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 20
    3514343 BUSHING, SPINDLE
    BUSHING, SPINDLE
  • 21
    7512329 BOLT
    BOLT
  • 22
    5333834 SPACER
    SPACER
  • 23
    5433547 BUSHING, RADIUS ROD
    BUSHING, RADIUS ROD
  • 24
    1820780-216 WELD, RADIUS ROD (SCRAMBLER YELLOW)
    WELD, RADIUS ROD (SCRAMBLER YELLOW)
  • 25
    7517778 BOLT
    BOLT
  • 26
    5244330-067 BRACKET SUPPORT, RADIUS ROD (BLACK)
    BRACKET SUPPORT, RADIUS ROD (BLACK)
  • 27
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
