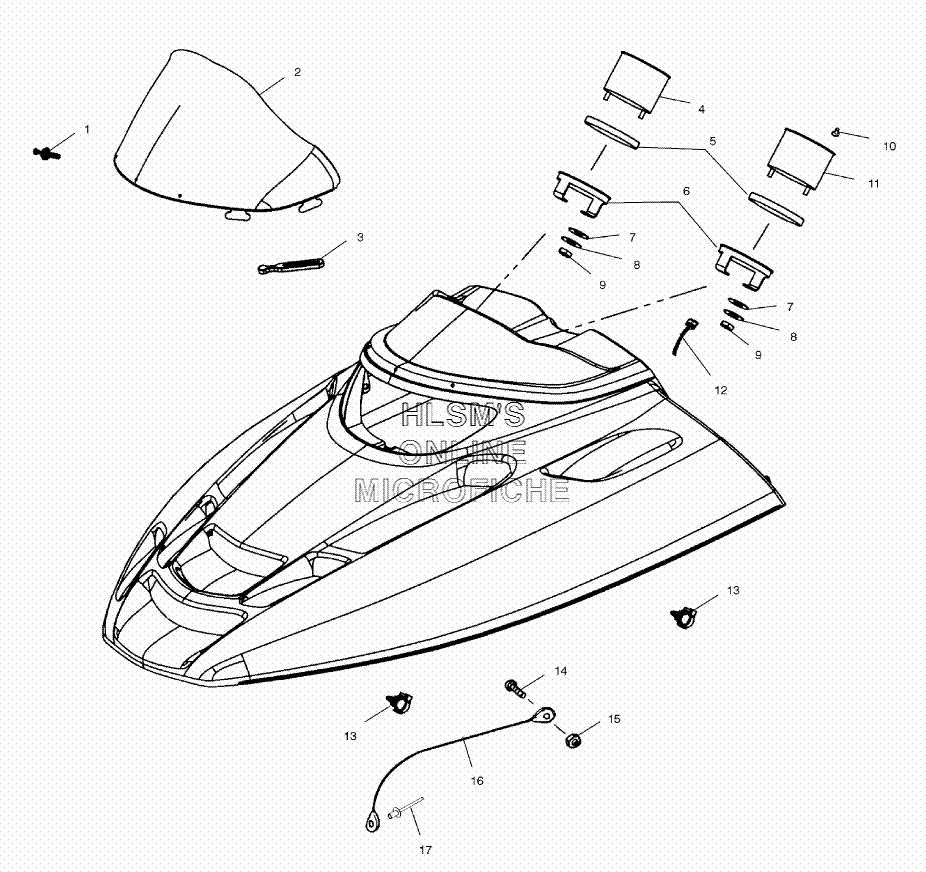

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 800 RMK F/O 151 STOCK (S02NL8CSA) - 2002 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTICRIVET, PLASTIC
-
25434324 WINDSHIELD (15'') [BLUE]WINDSHIELD (15'') [BLUE]
-
25434194 WINDSHIELD (13'')WINDSHIELD (13'')
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACHMETER (6P WHITE W/FUEL LIGHT)TACHMETER (6P WHITE W/FUEL LIGHT)
-
44030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
53280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
63280210 BRACKET, TACHOMETER/SPEEDOMETER 5''BRACKET, TACHOMETER/SPEEDOMETER 5''
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER (LEFT)KNOB, TRIP ODOMETER (LEFT)
-
113280348 SPEEDOMETER (5'' 120MPH WHITE W/O-RING)SPEEDOMETER (5'' 120MPH WHITE W/O-RING)
-
114030015 BULB, TAILLIGHT/TACH/SPEEDOBULB, TAILLIGHT/TACH/SPEEDO
-
123280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
134010589 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
147512018 SCREWSCREW
-
157541925 NUTNUT
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177661637 RIVET, INTERLOCKRIVET, INTERLOCK
