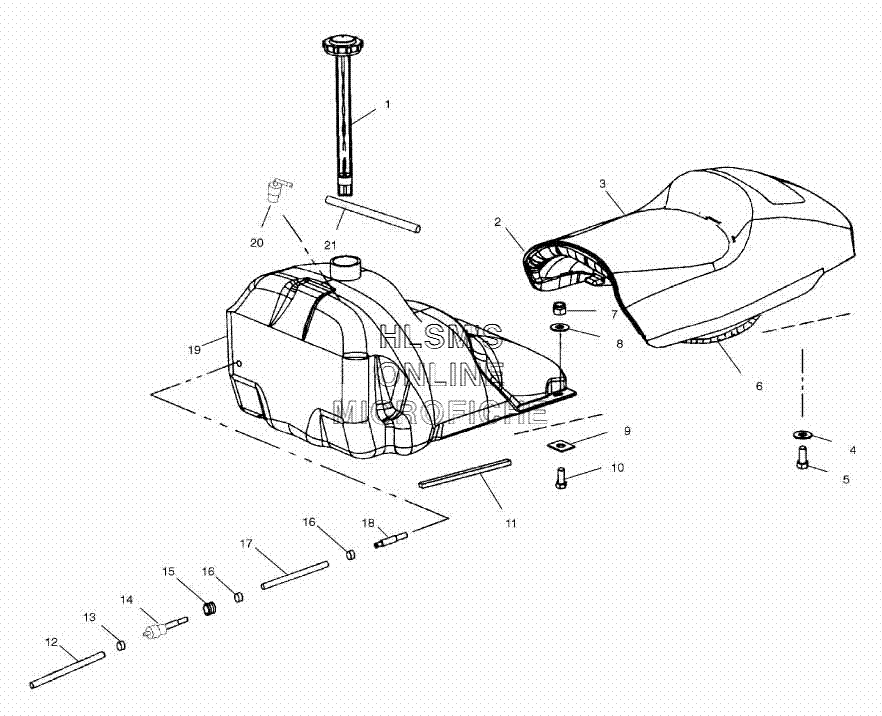

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 RMK F/O 144 (S02NK8CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240066 CAP, FUEL 12.5 W/GAUGE
    CAP, FUEL 12.5 W/GAUGE
  • 2
    2682778 SEAT ASSY., EDGE RMK (BLUE) (INCL. 3, 6)
    SEAT ASSY., EDGE RMK (BLUE) (INCL. 3, 6)
  • 2
    2682710 SEAT ASSY., EDGE RMK (RED) (INCL. 3, 6)
    SEAT ASSY., EDGE RMK (RED) (INCL. 3, 6)
  • 2
    2682827 SEAT ASSY., EDGE RMK (BLACK) (INCL. 3, 6)
    SEAT ASSY., EDGE RMK (BLACK) (INCL. 3, 6)
  • 3
    2682779 SEAT COVER ASSY. (BLUE)
    SEAT COVER ASSY. (BLUE)
  • 3
    2682822 SEAT COVER ASSY., EDGE RMK (RED)
    SEAT COVER ASSY., EDGE RMK (RED)
  • 3
    2682828 SEAT COVER ASSY., EDGE RMK (BLACK)
    SEAT COVER ASSY., EDGE RMK (BLACK)
  • 4
    7558301 WASHER
    WASHER
  • 5
    7517219 SCREW
    SCREW
  • 6
    2460935 HARNESS, TAILLIGHT RMK EDGE
    HARNESS, TAILLIGHT RMK EDGE
  • 7
    7542122 NUT, LOCK
    NUT, LOCK
  • 8
    7555960 WASHER
    WASHER
  • 9
    7670021 SPEED NUT
    SPEED NUT
  • 10
    7512193 BOLT
    BOLT
  • 11
    5810947 SEAL, FOAM, COOLER (REAR)
    SEAL, FOAM, COOLER (REAR)
  • 12
    8350017-600 FUEL, LINE ETHER 5/16'' (RED)
    FUEL, LINE ETHER 5/16'' (RED)
  • 13
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    7052269 FITTING (5/16''/ 3/8 STRAIGHT)
    FITTING (5/16''/ 3/8 STRAIGHT)
  • 15
    5432981 GROMMET
    GROMMET
  • 16
    7080768 RING, COMPRESSION
    RING, COMPRESSION
  • 17
    8350020-600 FUEL, LINE ETHER VLT 3/8''
    FUEL, LINE ETHER VLT 3/8''
  • 18
    7052215 PICK-UP, FUEL W/MESH
    PICK-UP, FUEL W/MESH
  • 19
    2520262 FUEL TANK ASSY., EDGE
    FUEL TANK ASSY., EDGE
  • 20
    7052095 FITTING (90 DEG 1/8'')
    FITTING (90 DEG 1/8'')
  • 21
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
