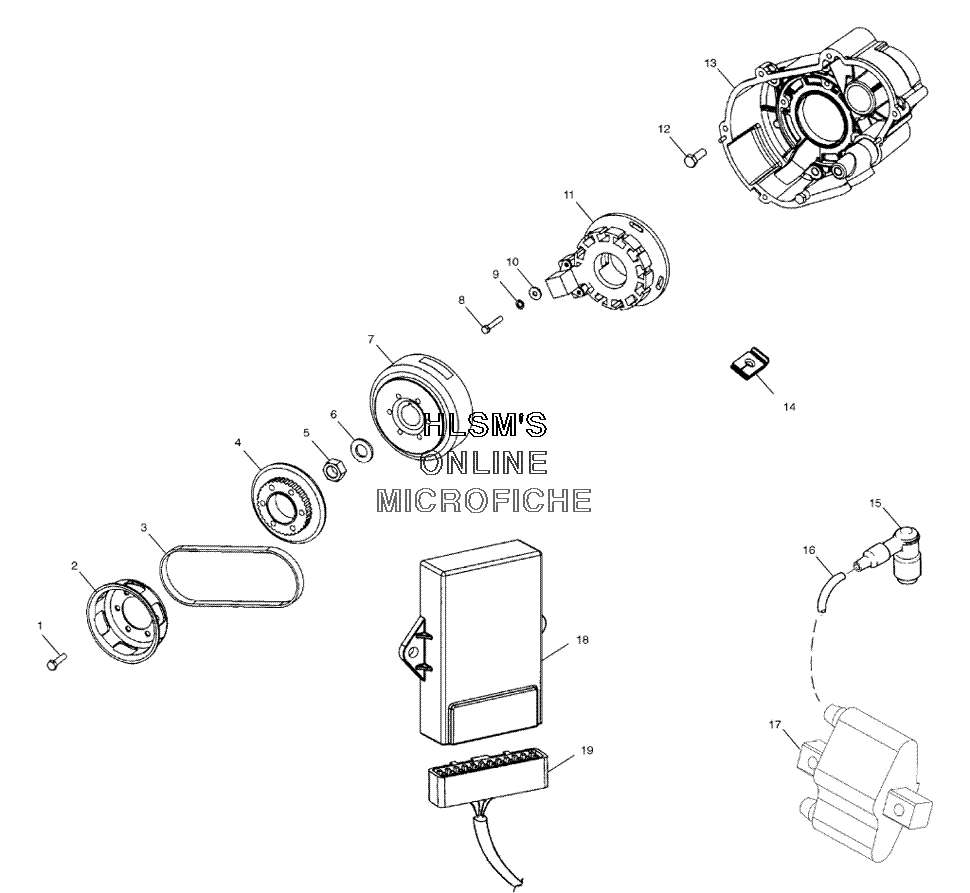

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 700 RMK F/O 144 BUILT AFTER 3/1/01 (S02NK7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7516823 SCREW
    SCREW
  • 2
    3021144 PULLEY, RECOIL
    PULLEY, RECOIL
  • 3
    5411998 WATERPUMP BELT KIT
    WATERPUMP BELT KIT
  • 4
    5630824 PULLEY, WATERPUMPDRIVE
    PULLEY, WATERPUMPDRIVE
  • 5
    7546909 NUT
    NUT
  • 6
    7555907 WASHER
    WASHER
  • 7
    4010523 FLYWHEEL-IGN SNO KOK W/O GLUE
    FLYWHEEL-IGN SNO KOK W/O GLUE
  • 8
    7517246 SCREW
    SCREW
  • 9
    7555969 WASHER, LOCK
    WASHER, LOCK
  • 10
    7555970 WASHER, FLAT
    WASHER, FLAT
  • 11
    4010297 STATOR, IGNITION
    STATOR, IGNITION
  • 12
    7516734 SCREW
    SCREW
  • 13
    1202161 HOUSING, IGN., ASSY.
    HOUSING, IGN., ASSY.
  • 14
    5411178 GROMMET, STATOR WIRES
    GROMMET, STATOR WIRES
  • 15
    4020159 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 16
    4010124 WIRE, IGN, BULK, 305CM.
    WIRE, IGN, BULK, 305CM.
  • 17
    4060229 COIL, IGNITION, KOK
    COIL, IGNITION, KOK
  • 18
    2201926 CDI KIT, S70-70 4010553 (INCL. 18, NYOGEL & DECAL)
    CDI KIT, S70-70 4010553 (INCL. 18, NYOGEL & DECAL)
  • 18
    7077026 DECAL, SPARKPLUG REC.
    DECAL, SPARKPLUG REC.
  • 19
    4010549 HARNESS-IGN SNO TWN KOK NEW
    HARNESS-IGN SNO TWN KOK NEW
