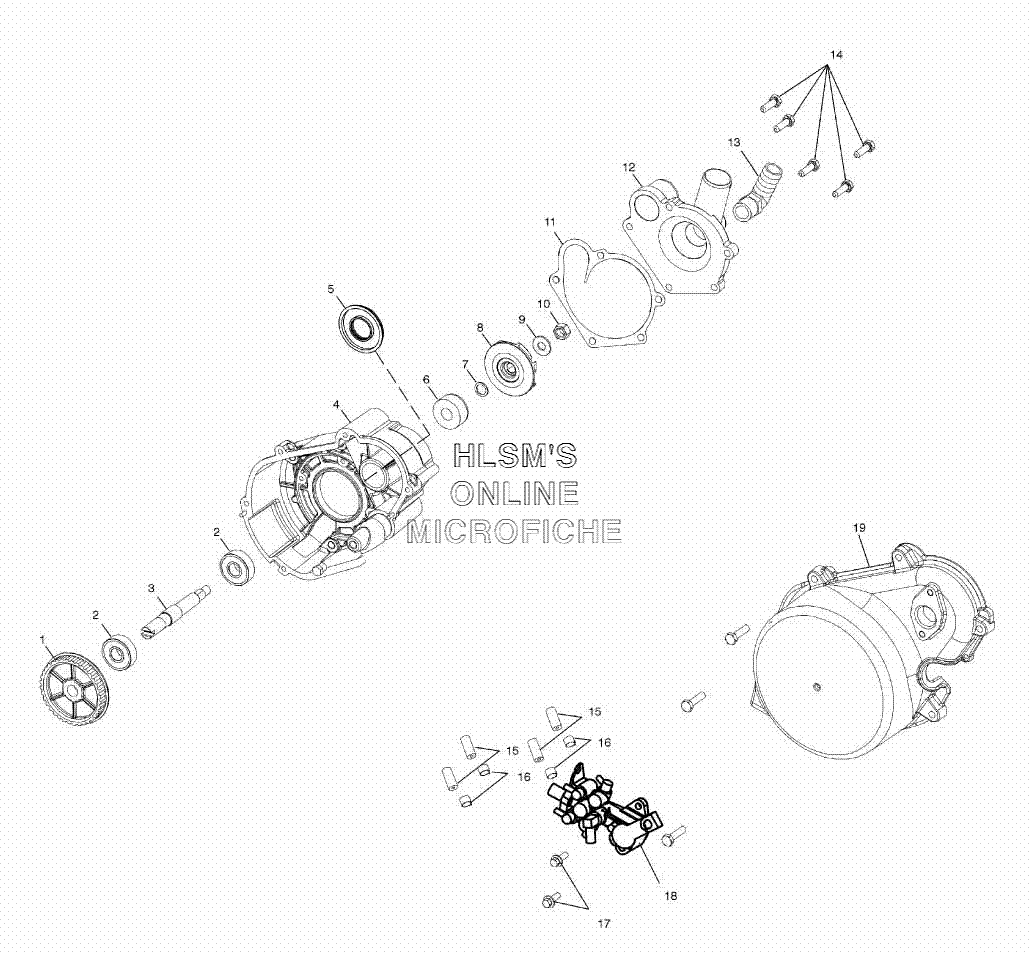

WATER PUMP/OIL PUMP для Polaris 700 CLASSIC BUILT BEFORE 1/1/01 (S02ND7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3021044 PULLEY, WATERPUMP DRIVEN (17.00)
    PULLEY, WATERPUMP DRIVEN (17.00)
  • 2
    3514311 BEARING, BALL (SLD.DGRV.)
    BEARING, BALL (SLD.DGRV.)
  • 3
    5132273 SHAFT, WATERPUMP (700BASE, 17.00)
    SHAFT, WATERPUMP (700BASE, 17.00)
  • 4
    1201812 HOUSING, IGNITION [SEE MAGNETO REF. 13]
    HOUSING, IGNITION [SEE MAGNETO REF. 13]
  • 5
    3610044 SEAL
    SEAL
  • 6
    3610067 SEAL, WATERPUMP
    SEAL, WATERPUMP
  • 7
    7556006 WASHER, FLAT (S.S.)
    WASHER, FLAT (S.S.)
  • 8
    5432330 IMPELLER, WATERPUMP
    IMPELLER, WATERPUMP
  • 9
    7555874 WASHER, FLAT, (S.S.)
    WASHER, FLAT, (S.S.)
  • 10
    7546804 NUT, HEX
    NUT, HEX
  • 11
    5811627 GASKET, COVER, WATERPUMP
    GASKET, COVER, WATERPUMP
  • 12
    5630864 COVER, WATERPUMP
    COVER, WATERPUMP
  • 13
    7052312 FITTING (90Ш, 3/8 NPT, 5/8ID HOSE)
    FITTING (90Ш, 3/8 NPT, 5/8ID HOSE)
  • 14
    7516822 SCREW
    SCREW
  • 15
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
  • 16
    7080603 CLAMP
    CLAMP
  • 17
    7516607 SCREW
    SCREW
  • 18
    2540053 PUMP ASSY., OIL (4M136, 03, SNO)
    PUMP ASSY., OIL (4M136, 03, SNO)
  • 19
    1201812 HOUSING, IGNITION [SEE MAGNETO REF. 13]
    HOUSING, IGNITION [SEE MAGNETO REF. 13]
