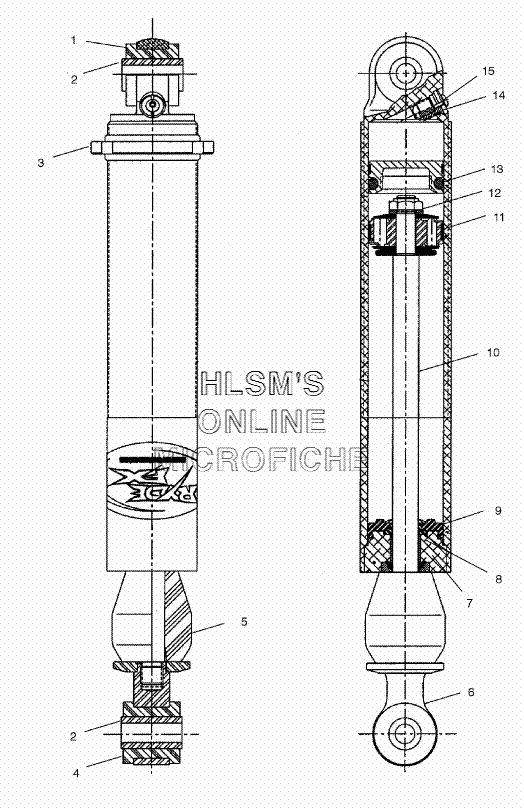

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
1A7041976 SHOCK, IFS (IFP, 11X16.25, ALUM, AR)SHOCK, IFS (IFP, 11X16.25, ALUM, AR)
-
1B2200618 VALV. PISTON KIT (FOX SHOCK)VALV. PISTON KIT (FOX SHOCK)
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVE (.38''IDX.63''ODX1.18STEEL)SLEEVE (.38''IDX.63''ODX1.18STEEL)
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700072 BUSHINGBUSHING
-
51700042 COMP, BUMPERCOMP, BUMPER
-
61700010 UPPER MOUNTUPPER MOUNT
-
71700007 CYLINDER HEAD ASSY. (1/2'' ROD)CYLINDER HEAD ASSY. (1/2'' ROD)
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFT (1/2''DIAX7.88''L)SHAFT (1/2''DIAX7.88''L)
-
111700110 BANDED PISTON (.094'' ORIFICE)BANDED PISTON (.094'' ORIFICE)
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP, OUT WASHERTOP, OUT WASHER
-
111700078 BACK, UP WASHERBACK, UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP, O-RINGIFP, O-RING
-
141700076 PRESS, VALVE ASSY.PRESS, VALVE ASSY.
-
141700047 PRESS, VALVE O-RINGPRESS, VALVE O-RING
-
151700056 VALVE SCREWVALVE SCREW
