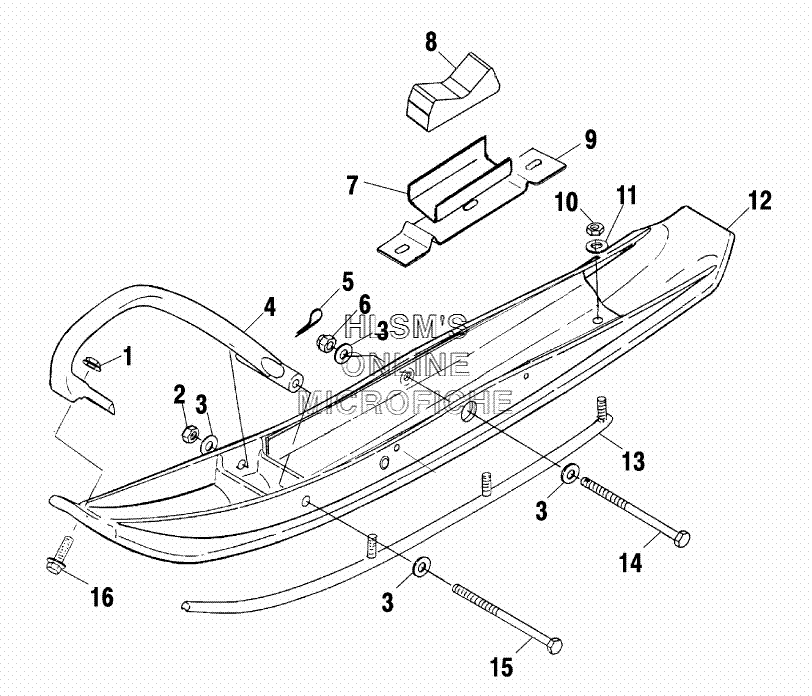

SKI ASSEMBLY для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
17542321 NUT LOCKNUT LOCK
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
45434165-216 TOE, PLASTIC SKI (S/YELLOW)TOE, PLASTIC SKI (S/YELLOW)
-
57661205 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
85412018 STOP, SKI, RUBBER (IF BUILT BEFORE 9/28/01)STOP, SKI, RUBBER (IF BUILT BEFORE 9/28/01)
-
85412018 STOP, SKI, RUBBER (IF BUILT AFTER 9/28/01)STOP, SKI, RUBBER (IF BUILT AFTER 9/28/01)
-
95241912-067 SUPPORT, SKI, RUBBER (BLACK)SUPPORT, SKI, RUBBER (BLACK)
-
107542324 NUTNUT
-
117558302 WASHER, WROUGHTWASHER, WROUGHT
-
121820821-070 CMP SKI BLANK ASSY. (W/RK SDL, BLACK)CMP SKI BLANK ASSY. (W/RK SDL, BLACK)
-
121820821-1123 COMP SKI BLANK ASSY. (W/SDL, (BLACK/AL)COMP SKI BLANK ASSY. (W/SDL, (BLACK/AL)
-
132872566 SKAG (3'' 90Ш COMP) [PAIR]SKAG (3'' 90Ш COMP) [PAIR]
-
147512596 SCREWSCREW
-
157515514 BOLTBOLT
-
167515307 BOLTBOLT
Все узлы модели:
- AIR BOX
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CHAINCASE (REVERSE MODELS)
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVEN
- CLUTCH DRIVE (ELECTRIC START MODELS)
- CLUTCH DRIVE (MANUAL START MODELS)
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DECALS (EDGE X)
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- REVERSE LINKAGE
- SEAT W/ GAS TANK ASSEMBLY
- • SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK AND RESERVOIR
- SUSPENSION - SHOCK COMPRESSION DAMPING RESERVOIR
- SUSPENSION SHOCK (FRONT TRACK EDGE)
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
