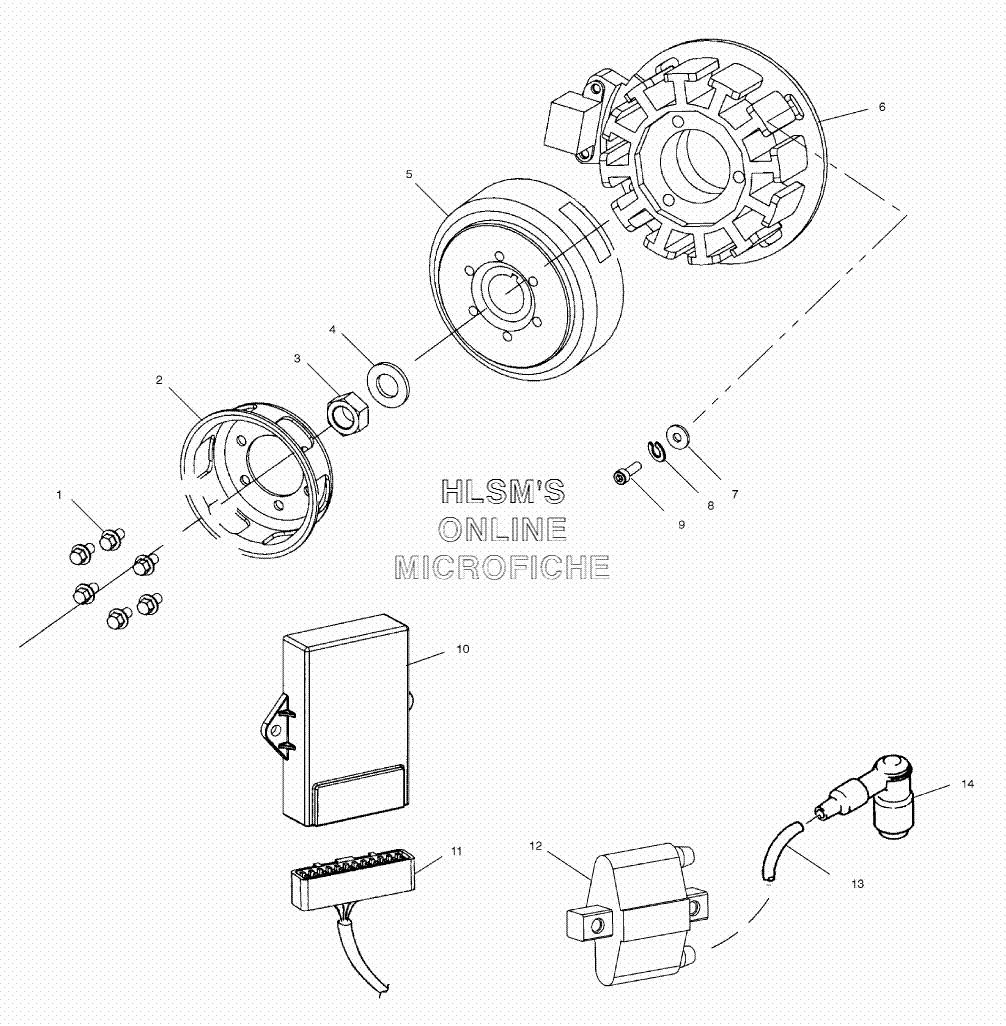

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010629 FLYWHEEL, IGN (SNO KOK W/O GLUE)FLYWHEEL, IGN (SNO KOK W/O GLUE)
-
64060222 STATOR, IGNITION (TWIN, SNOW)STATOR, IGNITION (TWIN, SNOW)
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102201980 CDI KIT (S60, 44, 4010585) [INCL. NYOGEL AND DECAL]CDI KIT (S60, 44, 4010585) [INCL. NYOGEL AND DECAL]
-
114010279 HARNESS, IGN. (SNO, KOK)HARNESS, IGN. (SNO, KOK)
-
124060229 COIL, IGNITION (SNO, KOK)COIL, IGNITION (SNO, KOK)
-
134010124-305 WIRE, IGN. (BULK, 305CM.)WIRE, IGN. (BULK, 305CM.)
-
144020159 CAP, SPARK PLUGCAP, SPARK PLUG
