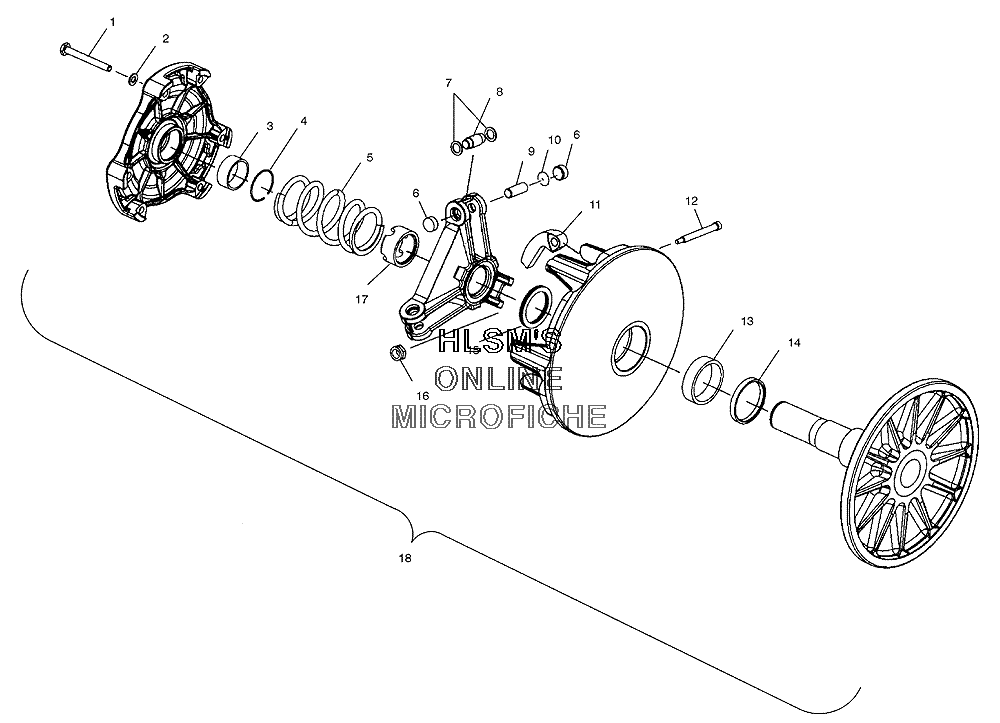

DRIVE CLUTCH - MANUAL START для Polaris 600 XC SP EDGE F/O (S02NP6ES) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 3
    3576516 BEARING COVER
    BEARING COVER
  • 4
    7710417 RING RETAINING, COVER
    RING RETAINING, COVER
  • 5
    7041781 SPRING CLUTCH (DARK BLUE/WHITE)
    SPRING CLUTCH (DARK BLUE/WHITE)
  • 6
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321457 ROLLER/BUSHING ASSY
    ROLLER/BUSHING ASSY
  • 9
    5020422 PIN ROLLER
    PIN ROLLER
  • 10
    2200387 SHIM, DRIVE CLUTCH KIT
    SHIM, DRIVE CLUTCH KIT
  • 11
    1321588 WT/BUSH. ASSY 10-58
    WT/BUSH. ASSY 10-58
  • 12
    7515105 PIN, WT. HARDENED
    PIN, WT. HARDENED
  • 13
    3576502 BEARING SLEEVE
    BEARING SLEEVE
  • 14
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 15
    5210754 SPACER (.050MM)
    SPACER (.050MM)
  • 15
    5210753 SPACER (.032MM)
    SPACER (.032MM)
  • 15
    5242981 SPACER (.025MM)
    SPACER (.025MM)
  • 15
    5210752 SPACER (.020MM)
    SPACER (.020MM)
  • 16
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 17
    5020425 NUT, JAM
    NUT, JAM
  • 18
    1321928 DRIVE CLUTCH, ASSY BASIC 114 W/B (INCL. ALL LESS 5, 11)
    DRIVE CLUTCH, ASSY BASIC 114 W/B (INCL. ALL LESS 5, 11)
