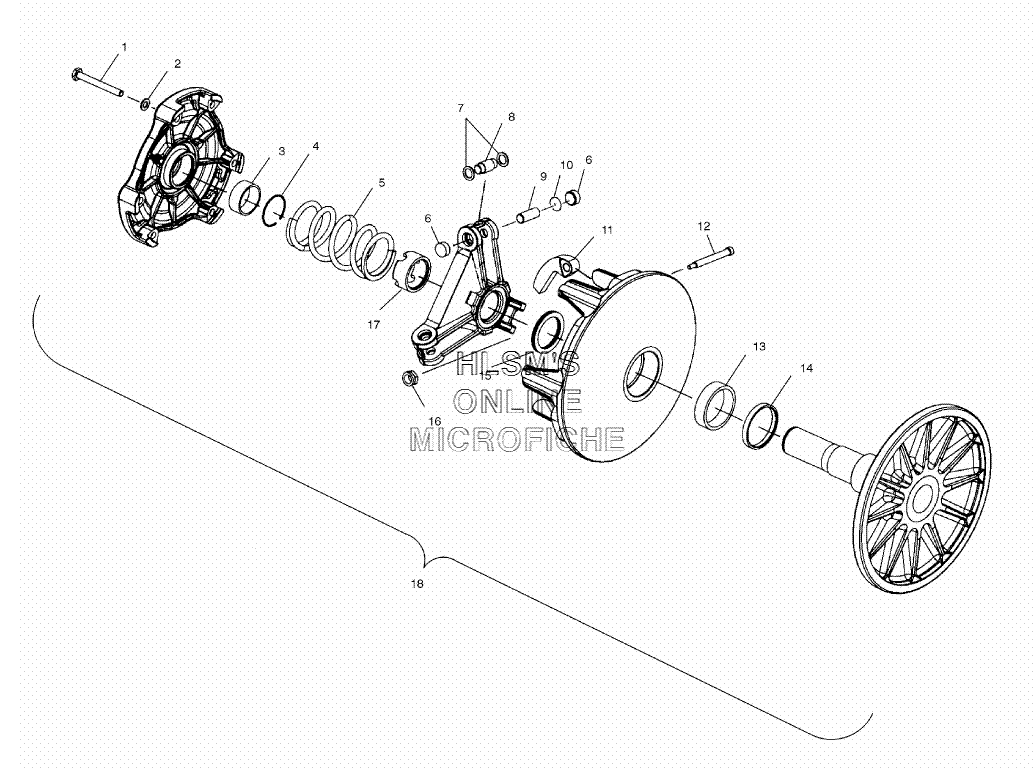

DRIVE CLUTCH - MANUAL START для Polaris 500 XC SP M-10 F/O (S02NE5CS) - 2002 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95133079 PIN ROLLER, 1", SBNPIN ROLLER, 1", SBN
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111321685 WT/BUSH.ASSY., 10 54(3)WT/BUSH.ASSY., 10 54(3)
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155210754 SPACER (.050MM)SPACER (.050MM)
-
155210753 SPACER (.032MM)SPACER (.032MM)
-
155242981 SPACER (.025MM)SPACER (.025MM)
-
155210752 SPACER (.020MM)SPACER (.020MM)
-
167541906 NUT FLEXLOCNUT FLEXLOC
-
175020425 NUT, JAMNUT, JAM
-
181321928 DRIVE CLUTCH ASSY., BASIC, 114 W/B (LESS 5, 11)DRIVE CLUTCH ASSY., BASIC, 114 W/B (LESS 5, 11)
