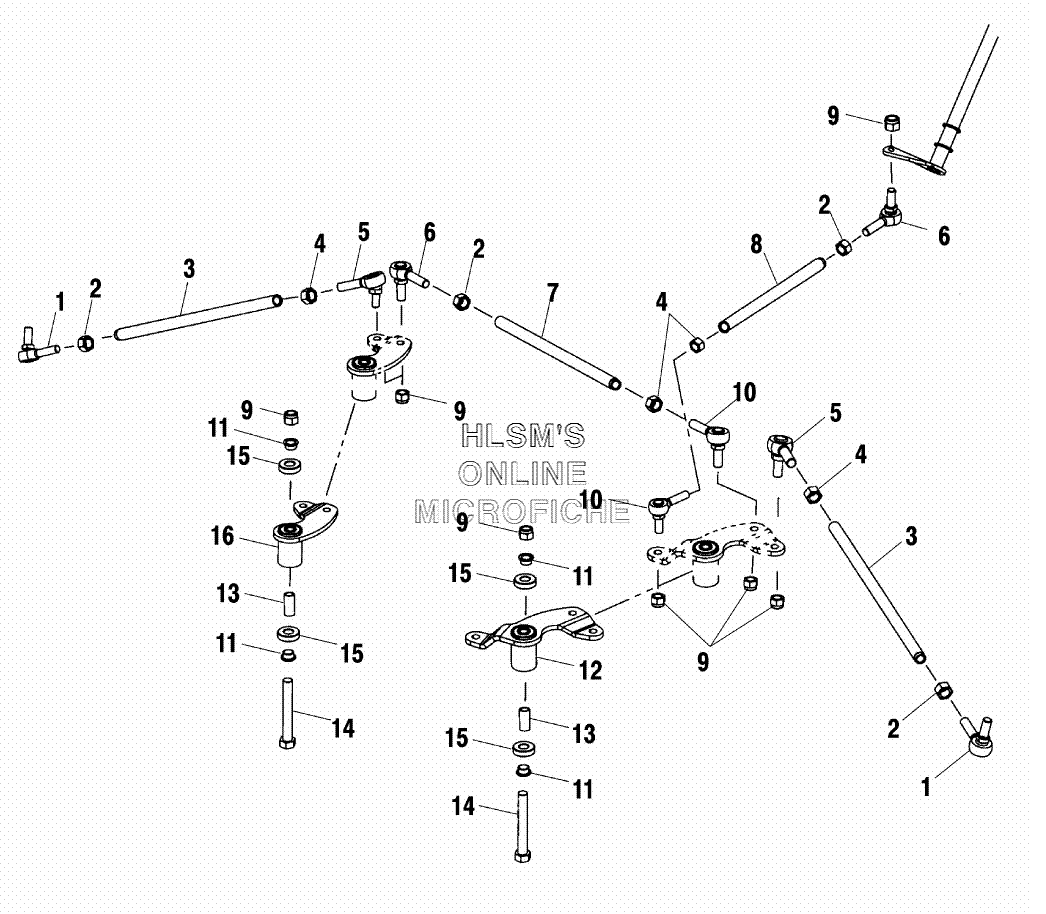

STEERING ASSEMBLY для Polaris 500 XC SP EDGE/EDGE X F/O (S02NP5CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7061057 ROD, END (3/8, PL, 75Ш, 1.00, RIGHT)
    ROD, END (3/8, PL, 75Ш, 1.00, RIGHT)
  • 2
    7542401 NUT HEX
    NUT HEX
  • 3
    5333949-293 ROD, TIE (RED)
    ROD, TIE (RED)
  • 3
    5333949-216 ROD, TIE (YELLOW)
    ROD, TIE (YELLOW)
  • 4
    7542424 NUT
    NUT
  • 5
    7061055 ROD, END (3/8, PL, 75Ш LEFT, 750 STUD)
    ROD, END (3/8, PL, 75Ш LEFT, 750 STUD)
  • 6
    7061076 ROD END (3/8 RIGHT, HI, ANGLE, PR)
    ROD END (3/8 RIGHT, HI, ANGLE, PR)
  • 7
    5333772 STEERING ROD RACK (11.50)
    STEERING ROD RACK (11.50)
  • 8
    5333773-067 ROD, DRAGLINK (12.50, STEEL, BLACK)
    ROD, DRAGLINK (12.50, STEEL, BLACK)
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7061075 ROD END (3/8 LEFT, HI, ANGLE, PR)
    ROD END (3/8 LEFT, HI, ANGLE, PR)
  • 11
    5132106 BUSHING, REDUCER (12MM TO .385)
    BUSHING, REDUCER (12MM TO .385)
  • 12
    1820957 ARM, PITMAN ARM, EDGE [INCL. 11, 13, 15]
    ARM, PITMAN ARM, EDGE [INCL. 11, 13, 15]
  • 13
    5133368 SPACER, TUBE PITMAN/IDLER ARMS
    SPACER, TUBE PITMAN/IDLER ARMS
  • 14
    7512435 BOLT
    BOLT
  • 15
    3514320 BEARING, BALL, 600ILLU
    BEARING, BALL, 600ILLU
  • 16
    1820959 IDLER ARM, EDGE ASSY. [INCL. 11, 13, 15]
    IDLER ARM, EDGE ASSY. [INCL. 11, 13, 15]
