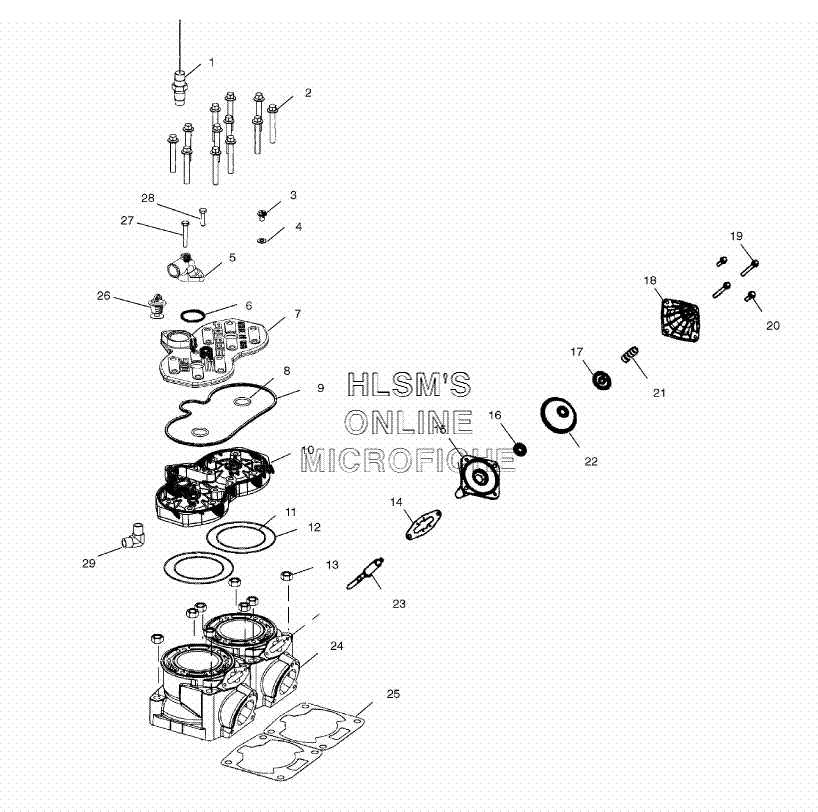

CYLINDER ASSEMBLY для Polaris 500 XC SP EDGE F/O (S02NP5CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    4010614 SENSOR THERMISTER
    SENSOR THERMISTER
  • 2
    7517533 SCREW,M8X1.25X55
    SCREW,M8X1.25X55
  • 3
    7517679 SCREW,M6X1.0 X 13,SL/HX/FL Z
    SCREW,M6X1.0 X 13,SL/HX/FL Z
  • 4
    7555998 WASHER,FLAT
    WASHER,FLAT
  • 5
    5630992 COVER, THERMOSTAT M6 BLEED MACH
    COVER, THERMOSTAT M6 BLEED MACH
  • 6
    5411521 O-RING,LIPSEAL
    O-RING,LIPSEAL
  • 7
    5631198-329 COVER HEAD 70.5 500 (BLACK) E COAT
    COVER HEAD 70.5 500 (BLACK) E COAT
  • 8
    5411411 O-RING
    O-RING
  • 9
    5411465 SEAL
    SEAL
  • 10
    3021276 HEAD CYLINDER 70.5MM,W/BYPASS 3/8
    HEAD CYLINDER 70.5MM,W/BYPASS 3/8
  • 11
    5411199 O-RING
    O-RING
  • 12
    5411359 O-RING
    O-RING
  • 13
    7547013 NUT
    NUT
  • 14
    5812241 GASKET CASE TO CYLINDER EXHAUST VALVE
    GASKET CASE TO CYLINDER EXHAUST VALVE
  • 15
    1202216 BASE EXHAUST VALVE DOM ASSY.
    BASE EXHAUST VALVE DOM ASSY.
  • 16
    5132950 WASHER BELLOWS, EXHAUST VALVE,DOM
    WASHER BELLOWS, EXHAUST VALVE,DOM
  • 17
    5631152 CAP/NUT, BELLOWS, EXHAUST VALVE DOM
    CAP/NUT, BELLOWS, EXHAUST VALVE DOM
  • 18
    5434175 HOUSING ASSY., W/BUSHING
    HOUSING ASSY., W/BUSHING
  • 19
    7516820 SCREW
    SCREW
  • 20
    7517932 SCREW, HEXAGON FLANGE M6X1.0X50.0 YD
    SCREW, HEXAGON FLANGE M6X1.0X50.0 YD
  • 21
    7041786-07 SPRING COMP, GEN3.5EV (PURPLE/WHITE)
    SPRING COMP, GEN3.5EV (PURPLE/WHITE)
  • 22
    5412056 BELLOW, EXHAUST MODIFIED
    BELLOW, EXHAUST MODIFIED
  • 23
    1201959 VALVE, GUILLOTINE 500, FORGED
    VALVE, GUILLOTINE 500, FORGED
  • 24
    3021256 CYLINDER 70.5 SNO EV
    CYLINDER 70.5 SNO EV
  • 25
    5811916 GASKET CYLINDER BASE
    GASKET CYLINDER BASE
  • 26
    7052267 THERMOSTAT 50C TBYS SS STEM
    THERMOSTAT 50C TBYS SS STEM
  • 27
    7516818 SCREW
    SCREW
  • 28
    7516822 SCREW
    SCREW
  • 29
    7052221 FITTING, HOSE (3/8 NPT) (5/8 ID)
    FITTING, HOSE (3/8 NPT) (5/8 ID)
