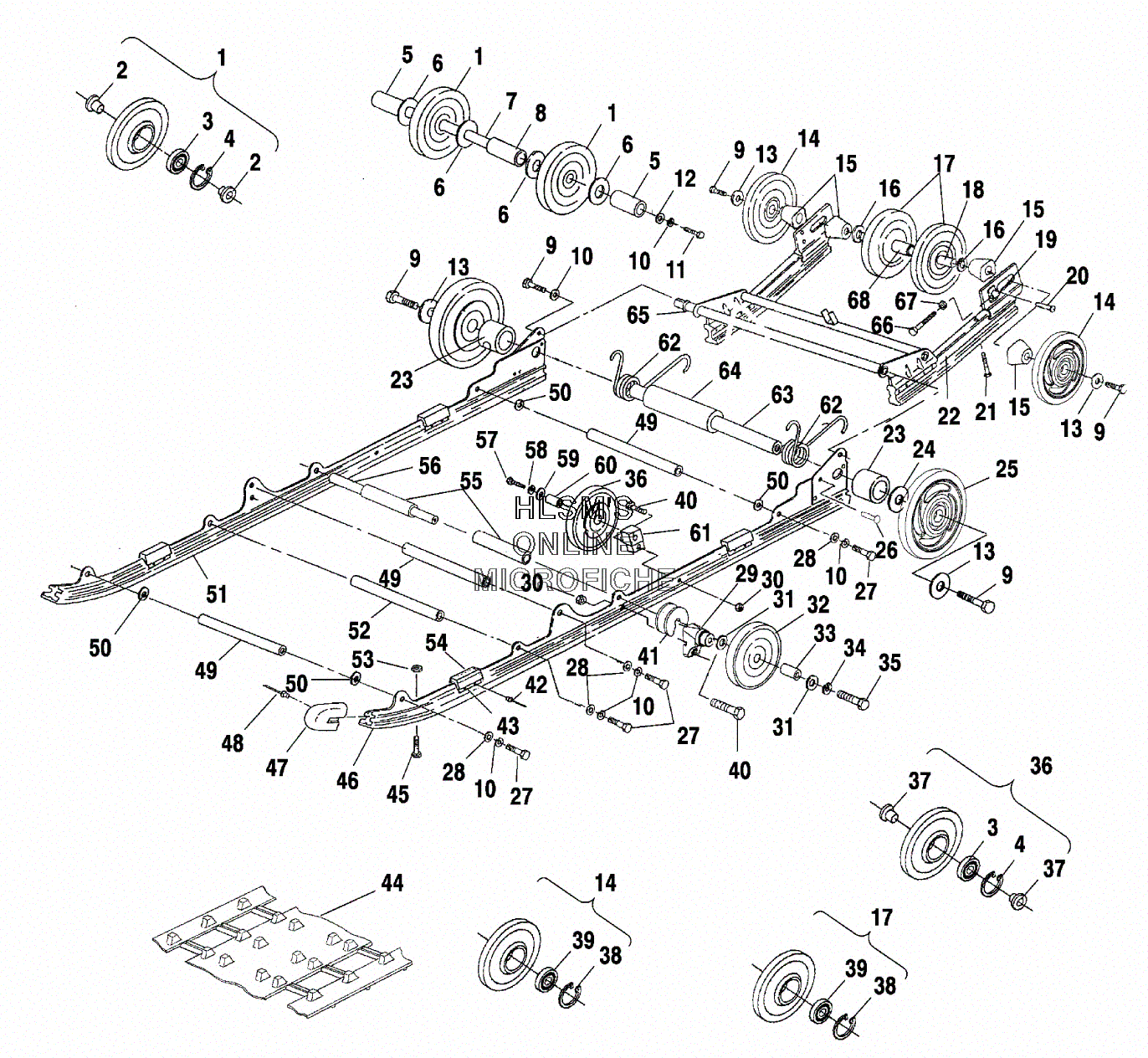

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris WIDETRAK LX (S01SU4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1543021 WHEEL, CARRIER (INCL. 2, 3, 4)
    WHEEL, CARRIER (INCL. 2, 3, 4)
  • 2
    5430723 INSERTS, WHEEL
    INSERTS, WHEEL
  • 3
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 4
    7718407 RING-RETAINING (1 PER WHEEL)
    RING-RETAINING (1 PER WHEEL)
  • 5
    5333019-067 SPACER (OUTER)
    SPACER (OUTER)
  • 6
    7555726 WASHER
    WASHER
  • 7
    5020836 SHAFT, MOUNTING.
    SHAFT, MOUNTING.
  • 8
    5333020-067 SPACER, IN.CARRIER (BLK)
    SPACER, IN.CARRIER (BLK)
  • 9
    7517731 BOLT
    BOLT
  • 10
    7552603 WASHER
    WASHER
  • 11
    7517435 BOLT
    BOLT
  • 12
    7555893 WASHER
    WASHER
  • 13
    7556130 WASHER
    WASHER
  • 14
    1594083-246 WHEEL ASSY., IDLER, SCRLLD, (RIG BLUE)
    WHEEL ASSY., IDLER, SCRLLD, (RIG BLUE)
  • 15
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 16
    7555918 BUSHING
    BUSHING
  • 17
    1594087 WHEEL ASSY., PLAIN (6.38 O.D.)
    WHEEL ASSY., PLAIN (6.38 O.D.)
  • 18
    5020879 SHAFT, IDLER
    SHAFT, IDLER
  • 19
    5130530 BLOCK, IDLER BOLT ADJUSTER
    BLOCK, IDLER BOLT ADJUSTER
  • 20
    7621501 RIVET
    RIVET
  • 21
    7512225 SCREW
    SCREW
  • 22
    1541133 RAIL ASSY., SWING ARM, RIVETED (INCL. 19, 20)
    RAIL ASSY., SWING ARM, RIVETED (INCL. 19, 20)
  • 22
    5521452 SLIDER (WHITE)
    SLIDER (WHITE)
  • 23
    5330171-067 TUBESPACER, OUTSIDE (CENTER)
    TUBESPACER, OUTSIDE (CENTER)
  • 24
    7556301 MACHINERY BUSHING
    MACHINERY BUSHING
  • 25
    1590276-246 WHEEL IDLER SCREW ASSY.
    WHEEL IDLER SCREW ASSY.
  • 26
    7621508 RIVET
    RIVET
  • 27
    7517247 SCREW
    SCREW
  • 28
    7555806 WASHER
    WASHER
  • 29
    5630399 SPACER
    SPACER
  • 30
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 31
    7555852 WASHER, FLAT
    WASHER, FLAT
  • 32
    1594082-246 WHEEL ASSY., SCROLLED, BOGIE (R BLUE)
    WHEEL ASSY., SCROLLED, BOGIE (R BLUE)
  • 33
    5333116 SPACER, WHEEL
    SPACER, WHEEL
  • 34
    7553101 WASHER LOCK
    WASHER LOCK
  • 35
    7512538 BOLT
    BOLT
  • 36
    1543018 WHEEL, IDLER (INCL. 3, 4, 37)
    WHEEL, IDLER (INCL. 3, 4, 37)
  • 37
    5431531 INSERT, WHEEL (2 PER WHEEL)
    INSERT, WHEEL (2 PER WHEEL)
  • 38
    7710444 RING, RETAINING
    RING, RETAINING
  • 39
    3514012 BEARING
    BEARING
  • 40
    7512404 BOLT
    BOLT
  • 41
    5431366 ROLLER, SPRING
    ROLLER, SPRING
  • 42
    7621476 RIVET
    RIVET
  • 43
    5222629 REINF., BUMPER
    REINF., BUMPER
  • 44
    5411682 TRACK, SHOCKWAVE (20''X156X1'')
    TRACK, SHOCKWAVE (20''X156X1'')
  • 44
    5222839 CLIP, TRACK (CAMOPLAST)
    CLIP, TRACK (CAMOPLAST)
  • 44
    5222840 CLIP, GUIDE (CAMOPLAST)
    CLIP, GUIDE (CAMOPLAST)
  • 45
    7512227 SCREW
    SCREW
  • 46
    1540751 RAIL ASSY. (LEFT/W'TRAK) (INCL. 43, 47, 54)
    RAIL ASSY. (LEFT/W'TRAK) (INCL. 43, 47, 54)
  • 46
    5521452 SLIDER (WHITE)
    SLIDER (WHITE)
  • 47
    5430627 COVER, RAIL TIP
    COVER, RAIL TIP
  • 48
    7621435 RIVET
    RIVET
  • 49
    5132239 SHAFT, PIVOT (.750X13.235)
    SHAFT, PIVOT (.750X13.235)
  • 50
    7555823 WASHER
    WASHER
  • 51
    1540752 RAIL ASSY., (RIGHT/W'TRAK) (INCL. 43, 47, 54)
    RAIL ASSY., (RIGHT/W'TRAK) (INCL. 43, 47, 54)
  • 51
    5521452 SLIDER (WHITE)
    SLIDER (WHITE)
  • 52
    5020720 SHAFT, SPANNER
    SHAFT, SPANNER
  • 53
    7542122 NUT, LOCK
    NUT, LOCK
  • 54
    5810554 BUMPER, RAIL
    BUMPER, RAIL
  • 55
    5333138 SPACER, SHOCK (REAR)
    SPACER, SHOCK (REAR)
  • 56
    5020651 SHAFT, SHOCK (REAR)
    SHAFT, SHOCK (REAR)
  • 57
    7512659 BOLT
    BOLT
  • 58
    7553201 LOCK WASHER
    LOCK WASHER
  • 59
    7555804 WASHER
    WASHER
  • 60
    5332786 SPACER
    SPACER
  • 61
    5130570 BRACKET, BOGIE WHEEL
    BRACKET, BOGIE WHEEL
  • 62
    7041231-067 SPRING, EXT (REAR/BLK).
    SPRING, EXT (REAR/BLK).
  • 63
    5020726 SHAFT, IDLER
    SHAFT, IDLER
  • 64
    5333014-067 TUBE, IDLER (CENTER/BLK).
    TUBE, IDLER (CENTER/BLK).
  • 65
    5020725 SHAFT, PIVOT ARM
    SHAFT, PIVOT ARM
  • 66
    7515459 BOLT
    BOLT
  • 67
    7542404 NUT
    NUT
  • 68
    5333523 SPACER, IDLER
    SPACER, IDLER
