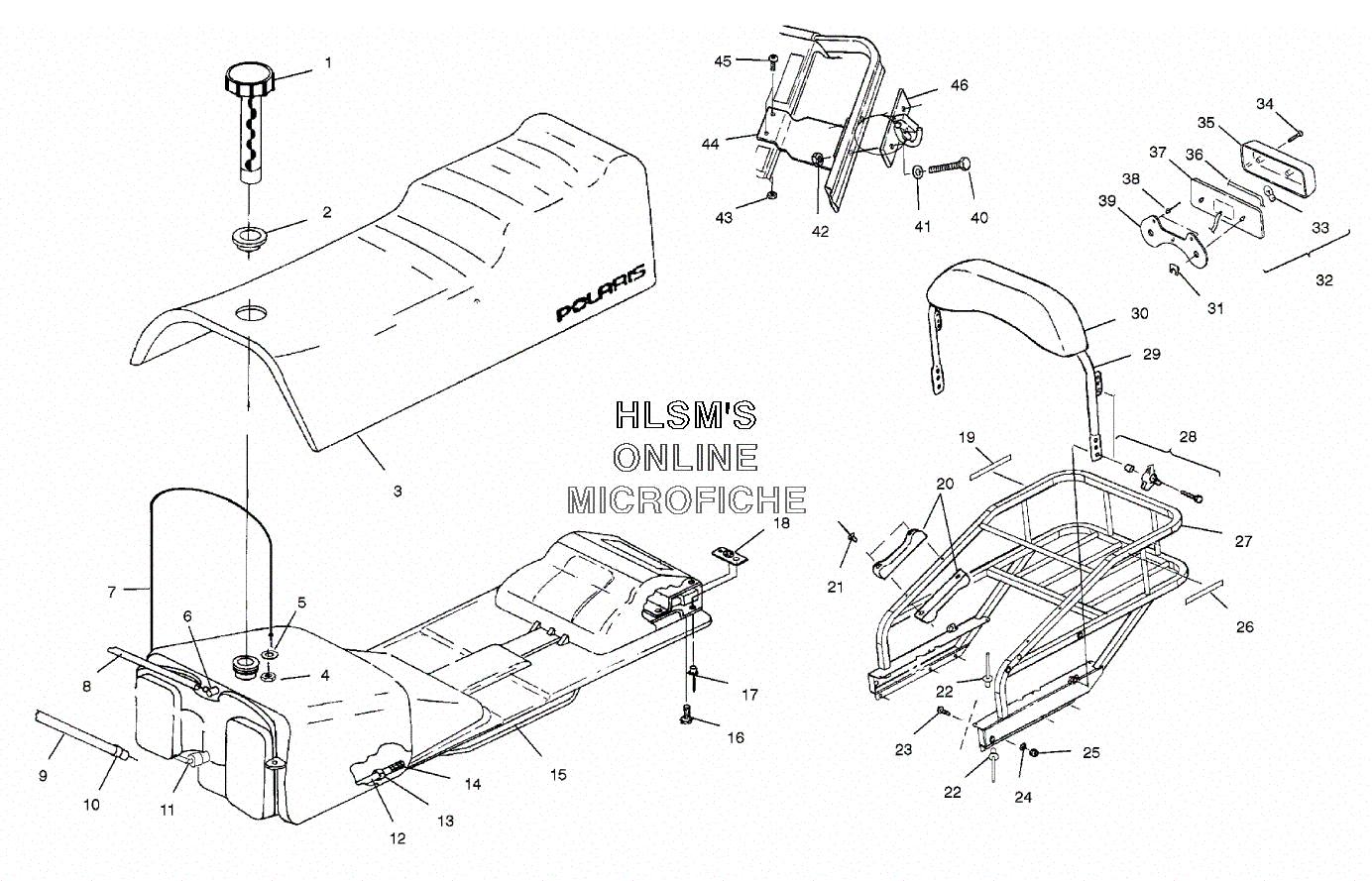

SEAT W/ GAS TANK ASSEMBLY для Polaris SPORT TOURING (S01SD5BS) - 2001 года выпуска
-
№АртикулНазвание
-
12511248 CAP, GAS, W/GAUGECAP, GAS, W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
25410842 GROMMET, FUELTANKGROMMET, FUELTANK
-
32682594 SEAT CUSHION ASSY (INCL. 2,3,5,6,7,8,11,13,14,15,17)SEAT CUSHION ASSY (INCL. 2,3,5,6,7,8,11,13,14,15,17)
-
32682595 SEAT COVER ASSYSEAT COVER ASSY
-
47541925 NUTNUT
-
57555746 BURR, RIVETBURR, RIVET
-
67052095 FITTING (90 DEG) (1/8)FITTING (90 DEG) (1/8)
-
77080559 CABLE, TANK, RETENTIONCABLE, TANK, RETENTION
-
88450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
98350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
107080307 CLAMPCLAMP
-
117052143 FITTING, DOUBLE (OUTER) (90 DEG)FITTING, DOUBLE (OUTER) (90 DEG)
-
128350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
137080402 RING, COMPRESSIONRING, COMPRESSION
-
147052301 PICK-UP, FUEL, W/FILTER (105 MICRN)PICK-UP, FUEL, W/FILTER (105 MICRN)
-
152460808 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
167512242 SCREWSCREW
-
177621301 RIVETRIVET
-
187542147 NUT, RETAINER, WELDNUT, RETAINER, WELD
-
197072266 DECAL, CARRIER (FRONT)DECAL, CARRIER (FRONT)
-
205433383 GRIP, HAND W/INSERTGRIP, HAND W/INSERT
-
217661059 RIVET (5MMX35MM-AL-B)RIVET (5MMX35MM-AL-B)
-
227661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
237515363 BOLTBOLT
-
247558402 WASHER STEELWASHER STEEL
-
257542324 NUTNUT
-
267072225 DECAL, CARRIER (ENGINE)DECAL, CARRIER (ENGINE)
-
271012964-067 WELD-RACK, W/GRAB-HANDLE (BLK)WELD-RACK, W/GRAB-HANDLE (BLK)
-
282670130 KNOB ASSY, BACKRESTKNOB ASSY, BACKREST
-
292682617 BACKREST ASSY, ST (INCL. 30)BACKREST ASSY, ST (INCL. 30)
-
302682597 BACKREST COVER ASSYBACKREST COVER ASSY
-
317670093 CLIP, RETAINERCLIP, RETAINER
-
322410180 TAILLIGHT, ASSY (INCL. 33-37)TAILLIGHT, ASSY (INCL. 33-37)
-
334030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
347512088 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
354032085 LENS, STOPLIGHT AND TAILLIGHTLENS, STOPLIGHT AND TAILLIGHT
-
364032086 GASKET, TAILLIGHT AND STOPLIGHTGASKET, TAILLIGHT AND STOPLIGHT
-
374032087 BACKING (STOPANDTAIL)BACKING (STOPANDTAIL)
-
387621472 RIVETRIVET
-
395811832 MOUNT, TAILLIGHTMOUNT, TAILLIGHT
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- REVERSE LINKAGE
- • SEAT W/ GAS TANK ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- TUNNEL ASSEMBLY
