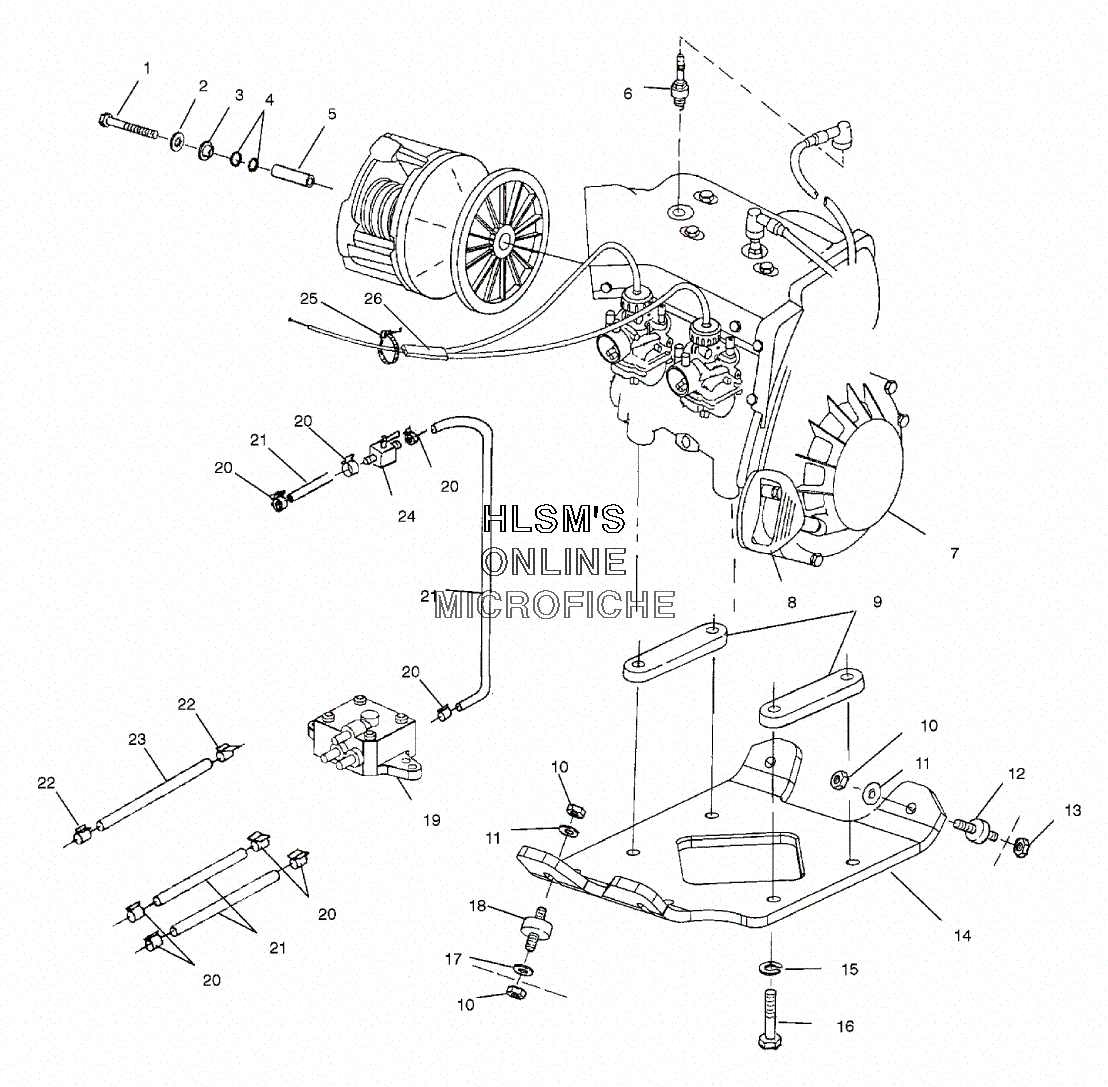

ENGINE MOUNTING W/ SHORT BLOCK для Polaris SPORT TOURING ES (S01ST5BS) - 2001 года выпуска`
-
№АртикулНазвание
-
17517776 SCREWSCREW
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAINWASHER, CLUTCH RETAIN
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070163 SPARKPLUG (BR9ES)SPARKPLUG (BR9ES)
-
73085618 ENGINE (SHORT BLOCK) EC55PM-010 (SEE FOOTNOTE)ENGINE (SHORT BLOCK) EC55PM-010 (SEE FOOTNOTE)
-
85431499 HANDLE, RECOIL (BLK)HANDLE, RECOIL (BLK)
-
95243195 SPACER-ENGINE (.50)SPACER-ENGINE (.50)
-
107547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
117555893 WASHERWASHER
-
123021099 MOUNT-ENGINE (3/8-16) (3-TAB)MOUNT-ENGINE (3/8-16) (3-TAB)
-
137542402 NUT FLEX LOCNUT FLEX LOC
-
145132001 PLATE-MOTOR MOUNTPLATE-MOTOR MOUNT
-
157553101 WASHER LOCKWASHER LOCK
-
167517442 BOLT,BOLT,
-
177555915 WASHER, FLATWASHER, FLAT
-
183110062 MOUNT, ENGINEMOUNT, ENGINE
-
207080307 CLAMPCLAMP
-
218350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
227080003 CLAMP, HOSECLAMP, HOSE
-
238450040-600 FUEL LINE (1/4 ID) (600 CM.)FUEL LINE (1/4 ID) (600 CM.)
-
247052219 VALVE, FUEL SHUT-OFF, FANVALVE, FUEL SHUT-OFF, FAN
-
257080138 STRAP PANDUITSTRAP PANDUIT
-
267080888 CABLE, THROTTLECABLE, THROTTLE
