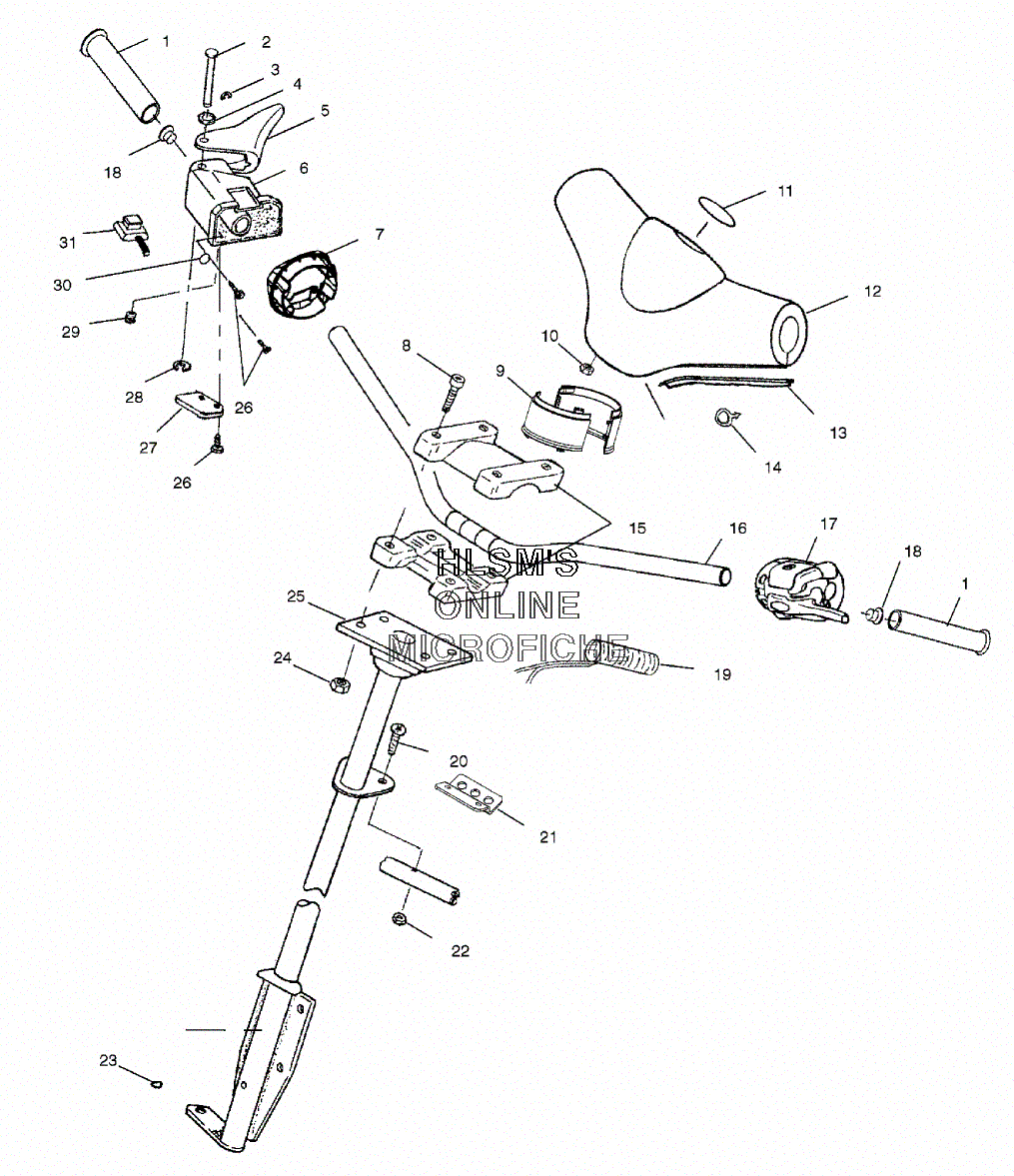

HANDLEBAR ASSEMBLY для Polaris EURO SPORT TOURING (E01SD5BU) - 2001 года выпуска`
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN, HINGEPIN, HINGE
-
37710503 RETAINING RINGRETAINING RING
-
47555730 WASHERWASHER
-
52010171 LEVER ASSY, HTR (HI/LO) (35.5MM)LEVER ASSY, HTR (HI/LO) (35.5MM)
-
55432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER, BLOCK, THROTTLEADAPTER, BLOCK, THROTTLE
-
87517238 SCREW,SCREW,
-
95433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
107670106 NUT, PUSH ON (.170-.180-Y)NUT, PUSH ON (.170-.180-Y)
-
115433754 EMBLEM-''STAR'', CHR.BEZEL, HANDLEBAREMBLEM-''STAR'', CHR.BEZEL, HANDLEBAR
-
125433159 COVER, HANDLEBAR (BLK)COVER, HANDLEBAR (BLK)
-
135433160 SLIDE, HANDLEBAR COVER (BLK)SLIDE, HANDLEBAR COVER (BLK)
-
135433161 SLIDE, HANDLEBAR COVER (BLK)SLIDE, HANDLEBAR COVER (BLK)
-
144010287 DART, CLIP NYLON (BLK)DART, CLIP NYLON (BLK)
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
165243355-067 HANDLEBAR (BLK)HANDLEBAR (BLK)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP (LO/MED/HI)HEATER, GRIP (LO/MED/HI)
-
207517377 SCREWSCREW
-
215242553-067 BRACKET, RETENTION (BLK)BRACKET, RETENTION (BLK)
-
227542103 NUT, LOCKNUT, LOCK
-
237080424 FITTING, LUBE.FITTING, LUBE.
-
247542122 NUT, LOCKNUT, LOCK
-
251820649-067 STEERING POST, RMK (BLK)STEERING POST, RMK (BLK)
-
267511848 SCREW SEMSSCREW SEMS
-
275432261 HOLDER, WIREHOLDER, WIRE
-
287710401 E-RINGE-RING
-
297512465 SCREWSCREW
-
307555727 RIVET BURRRIVET BURR
-
314110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
