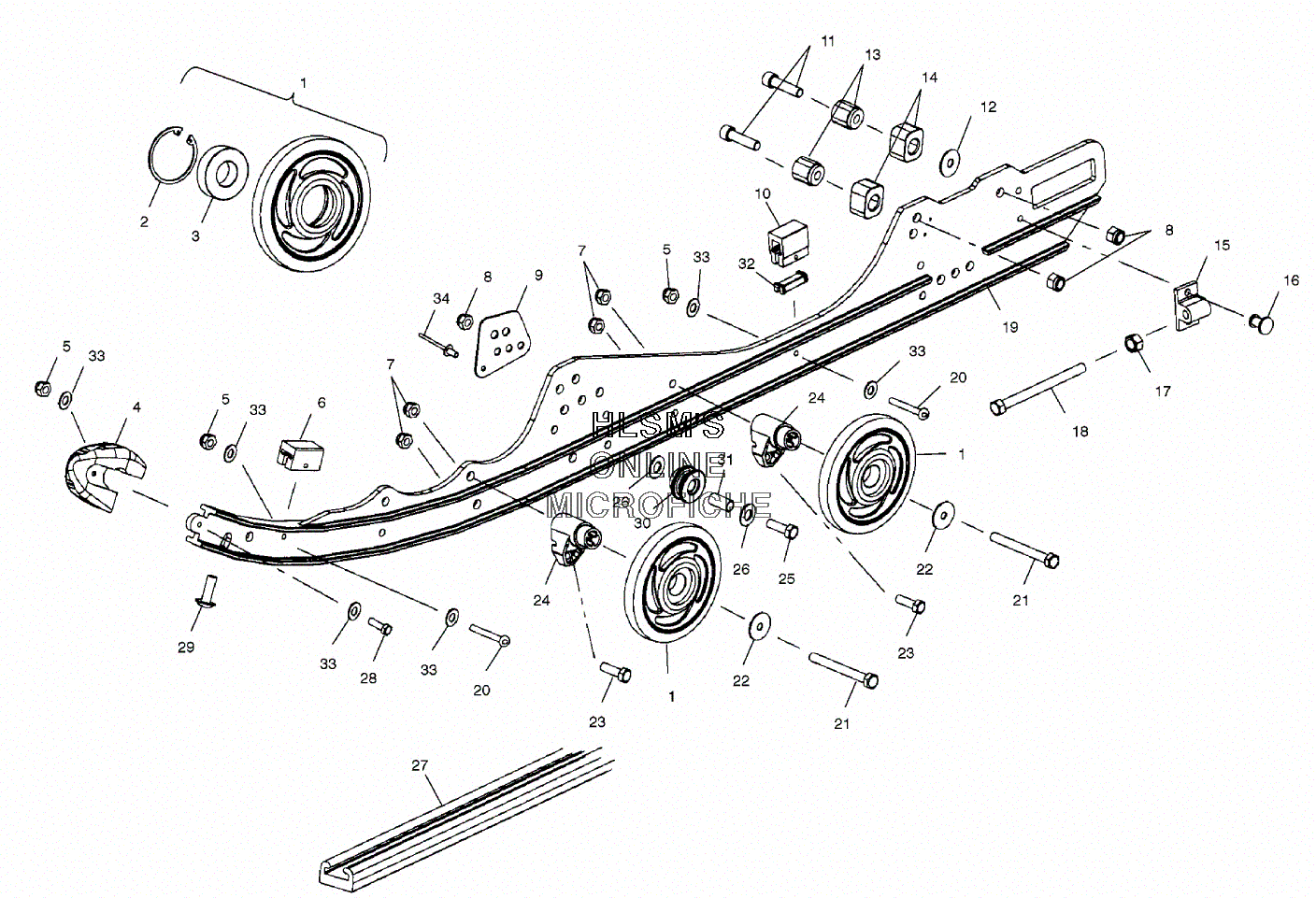

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 800 XC SP (BLUE) (S01NP8BSB) - 2001 года выпуска`
-
№АртикулНазвание
-
11590275-293 WHEEL, ADM (INDY RED) (INCL. 2, 3)WHEEL, ADM (INDY RED) (INCL. 2, 3)
-
27718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
45433735 CAP, RAIL TIPCAP, RAIL TIP
-
57541925 NUTNUT
-
65521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
77542324 NUTNUT
-
87542439 NUT, NYLOKNUT, NYLOK
-
95244677 BRACKET, RAIL REINFORCEMENTBRACKET, RAIL REINFORCEMENT
-
105521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
117515537 BOLTBOLT
-
125244371 SPACER (1.00X.390X.105)SPACER (1.00X.390X.105)
-
135131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
145410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
155132444 BLOCK, IDLER BOLT ADJUSTER (7/16)BLOCK, IDLER BOLT ADJUSTER (7/16)
-
167621501 RIVET,RIVET,
-
177547156 NUT, JAM (7/16 14 )NUT, JAM (7/16 14 )
-
187517773 SCREWSCREW
-
191541480 RAIL ASSY. (121) (LEFT) (INCL. 4, 6, 10, 14, 15)RAIL ASSY. (121) (LEFT) (INCL. 4, 6, 10, 14, 15)
-
191541481 RAIL ASSY. (121) (RIGHT) (INCL. 4, 6, 10, 14, 15)RAIL ASSY. (121) (RIGHT) (INCL. 4, 6, 10, 14, 15)
-
207510504 SCREWSCREW
-
217515346 BOLTBOLT
-
227571618 WASHERWASHER
-
237515317 BOLTBOLT
-
245631065 BLOCK WHEEL MOUNT, LWTBLOCK WHEEL MOUNT, LWT
-
257515438 BOLTBOLT
-
267555983 WASHER, FLATWASHER, FLAT
-
275521528 HI, FAX, XL, SERVICE, BASICHI, FAX, XL, SERVICE, BASIC
-
287511930 SCREWSCREW
-
297515199 SCREWSCREW
-
305433959 ROLLER SPRING, SQUAREROLLER SPRING, SQUARE
-
315333948 SPACER (.407X.625X1.33)SPACER (.407X.625X1.33)
-
325432946 LINER, BUMPERLINER, BUMPER
-
337555783 WASHERWASHER
-
347661845 RIVETRIVET
