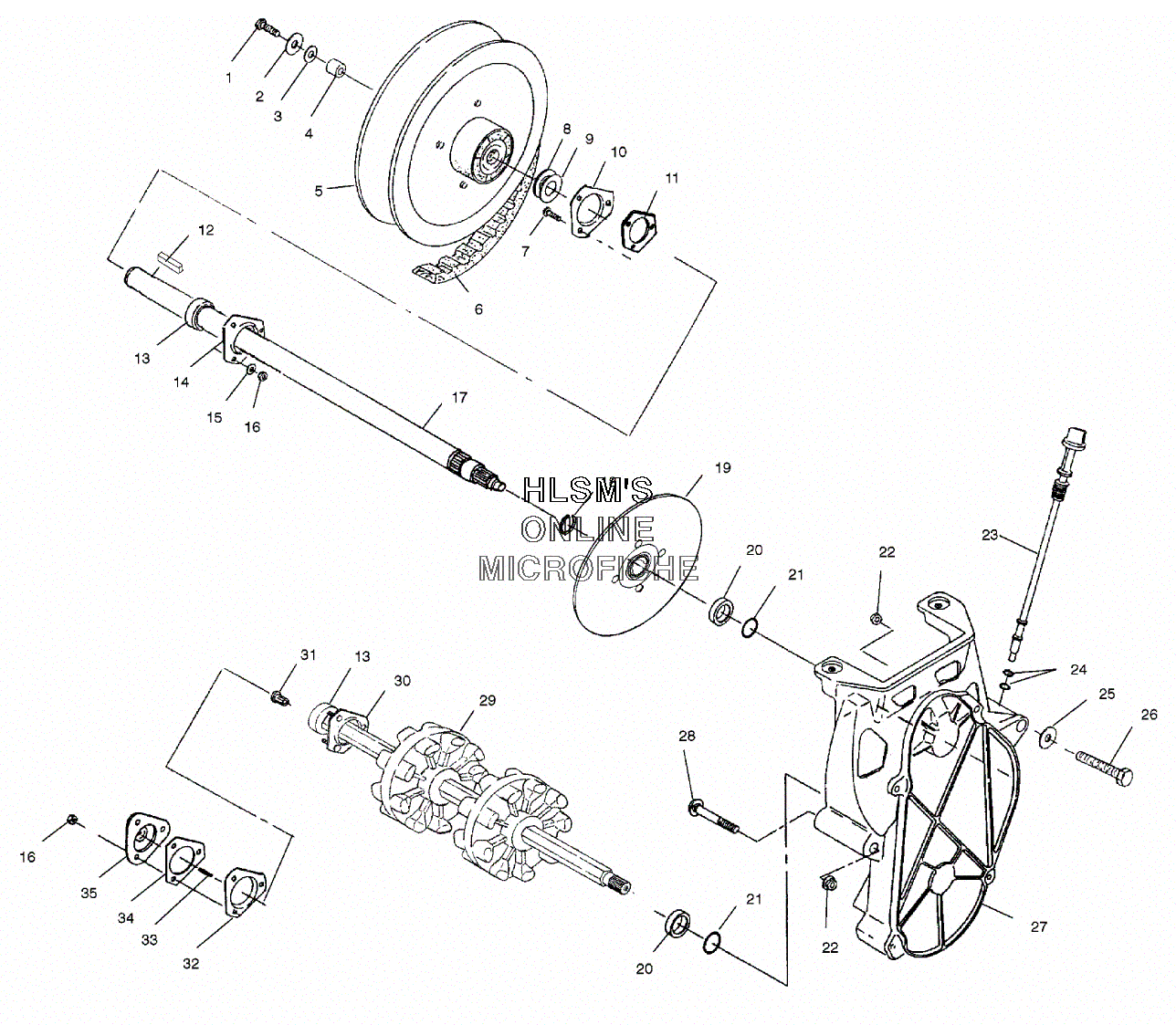

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 RMK SP 144'' (S01SM8BSC) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7517820 BOLT (5/16, 18X1 3/4 HX/LK, GR5, Z)
    BOLT (5/16, 18X1 3/4 HX/LK, GR5, Z)
  • 2
    7555701 WASHER FLAT
    WASHER FLAT
  • 3
    7555734 WASHER
    WASHER
  • 4
    5020291 SPACER
    SPACER
  • 6
    3211065 BELT, DRIVE
    BELT, DRIVE
  • 7
    7512377 BOLT
    BOLT
  • 8
    7555864 BUSHING
    BUSHING
  • 9
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 10
    5241359 FLANGE RD, RELUBE W/ZERK
    FLANGE RD, RELUBE W/ZERK
  • 11
    5811095 GASKET, JACKSHAFT, (BLACK)
    GASKET, JACKSHAFT, (BLACK)
  • 12
    7721128 KEY, (1/4X3/16X2.75)
    KEY, (1/4X3/16X2.75)
  • 13
    3514525 BEARING
    BEARING
  • 14
    5222751 FLANGETTE
    FLANGETTE
  • 15
    7558402 WASHER STEEL
    WASHER STEEL
  • 16
    7542324 NUT
    NUT
  • 17
    1332207 JACKSHAFT ASSY., 15 SPL (INCL. 13, 18)
    JACKSHAFT ASSY., 15 SPL (INCL. 13, 18)
  • 18
    7710422 RING, RETAINING
    RING, RETAINING
  • 19
    1910403 BRAKE DISC, SNOW, 6385 CR, ASSY.
    BRAKE DISC, SNOW, 6385 CR, ASSY.
  • 20
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 21
    5410613 O RING
    O RING
  • 22
    7542423 NUT
    NUT
  • 23
    1332143 DIPSTICK ASSY.
    DIPSTICK ASSY.
  • 24
    5410675 O, RING
    O, RING
  • 25
    7558403 WASHER WROUGHT
    WASHER WROUGHT
  • 26
    7515485 BOLT
    BOLT
  • 28
    7515428 BOLT
    BOLT
  • 29
    1590284 DRIVESHAFT ASSY., (2 DR WIDE, XHS) (INCL. 30, 31)
    DRIVESHAFT ASSY., (2 DR WIDE, XHS) (INCL. 30, 31)
  • 30
    1012945 FLANGETTE ASSY., (W/SCREWS)
    FLANGETTE ASSY., (W/SCREWS)
  • 31
    3280019 BUSHING METAL SPEEDO
    BUSHING METAL SPEEDO
  • 32
    5243529 FLANGETTE, OFFSET, (W/HOLE)
    FLANGETTE, OFFSET, (W/HOLE)
  • 33
    3280017 SQ. KEY SPEEDOMETER
    SQ. KEY SPEEDOMETER
  • 34
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 35
    3280116 ADAPTER, DRIVE, W/ZERK
    ADAPTER, DRIVE, W/ZERK
