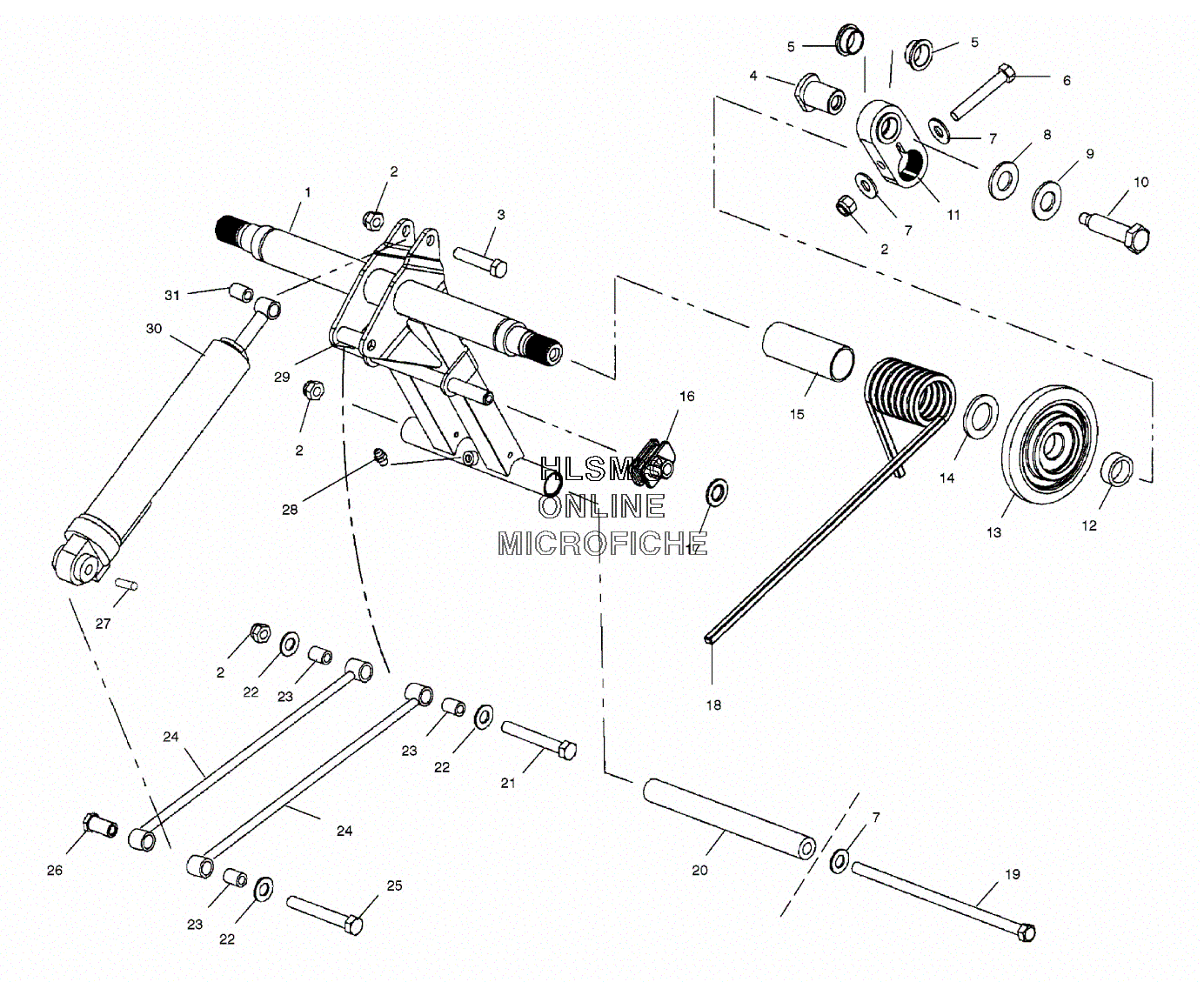

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 700 XC SP (RED) (S01NP7AS) - 2001 года выпуска
-
№АртикулНазвание
-
11541561-293 WELDREAR TORQUE ARM (RED)WELDREAR TORQUE ARM (RED)
-
27542439 NUT, NYLOKNUT, NYLOK
-
37512410 BOLTBOLT
-
45333758 SHAFT ARMSHAFT ARM
-
53514331 BUSHING ARMBUSHING ARM
-
67515415 BOLTBOLT
-
77555806 WASHERWASHER
-
87555893 WASHERWASHER
-
97552603 WASHERWASHER
-
107517435 BOLTBOLT
-
111541461 ARM ASSY., RTA (INCL. 5)ARM ASSY., RTA (INCL. 5)
-
125132388 SPACER, WHEELSPACER, WHEEL
-
131590278 WHEEL ASSY., PLAIN (BLK)WHEEL ASSY., PLAIN (BLK)
-
147555787 WASHER, REVERSEWASHER, REVERSE
-
155431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
165432983 ROLLER, SPRING, ADJUSTER, SQUARE (XTRA 10)ROLLER, SPRING, ADJUSTER, SQUARE (XTRA 10)
-
177080394 CLIPCLIP
-
187041942-067 SPRING TORSION (375/77) (LEFT) (STD)SPRING TORSION (375/77) (LEFT) (STD)
-
187041943-067 SPRING TORSION (375/77) (RIGHT) (STD)SPRING TORSION (375/77) (RIGHT) (STD)
-
187041629-067 SPRING, TORSION (359/77) (LEFT/BLACK) (OPT)SPRING, TORSION (359/77) (LEFT/BLACK) (OPT)
-
187041630-067 SPRING, TORSION (359/77) (RIGHT/BLACK) (OPT)SPRING, TORSION (359/77) (RIGHT/BLACK) (OPT)
-
187041940-067 SPRING TORSION (405/77) (LEFT/BLK) (OPT)SPRING TORSION (405/77) (LEFT/BLK) (OPT)
-
187041941-067 SPRING TORSION (.405/77) (RIGHT/BLK) (OPT)SPRING TORSION (.405/77) (RIGHT/BLK) (OPT)
-
197517232 SCREWSCREW
-
205333873 SHAFT (.740X.390X7.055, 6066)SHAFT (.740X.390X7.055, 6066)
-
217515514 BOLTBOLT
-
227555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
235132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
241541479-067 SHOCK ROD (12.850) (BLK)SHOCK ROD (12.850) (BLK)
-
257517851 SCREWSCREW
-
265132390 BUSHING, NUTBUSHING, NUT
-
275333907 SLEEVE (.385X.560X1.30)SLEEVE (.385X.560X1.30)
-
287080424 FITTING, LUBE.FITTING, LUBE.
-
295333904 SPACER (.397X.562X1.250)SPACER (.397X.562X1.250)
-
307041846 SHOCK, R/T, PPSSHOCK, R/T, PPS
-
315010422 BUSHINGBUSHING
