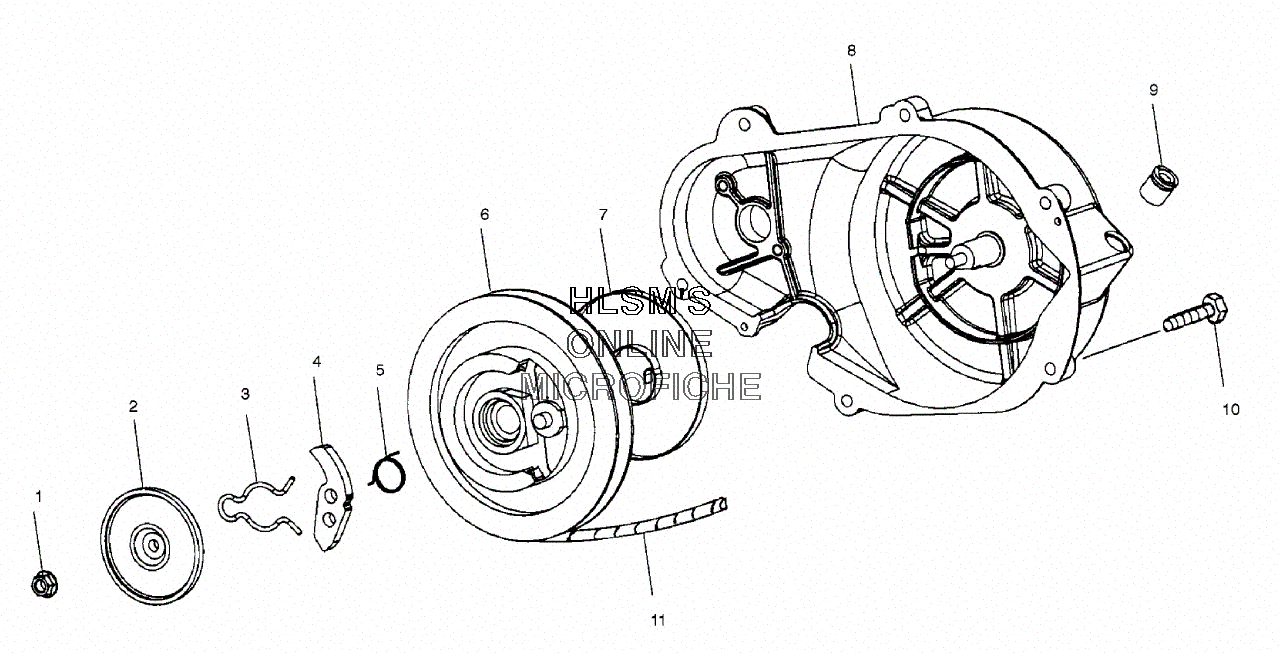

STARTER - RECOIL ASSEMBLY для Polaris 700 XC SP (BLUE) (S01NP7ASB) - 2001 года выпуска
-
№АртикулНазвание
-
1A1201814 RECOIL ASSY. (INCL. 19, 11 AND STARTING PULLEY)RECOIL ASSY. (INCL. 19, 11 AND STARTING PULLEY)
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
43040165 RATCHETRATCHET
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040160 RECOIL ASSY., E/R SHIELDRECOIL ASSY., E/R SHIELD
-
93040171 GUIDE, ROPEGUIDE, ROPE
-
107516823 SCREWSCREW
-
113040169 ROPE, STARTERROPE, STARTER
