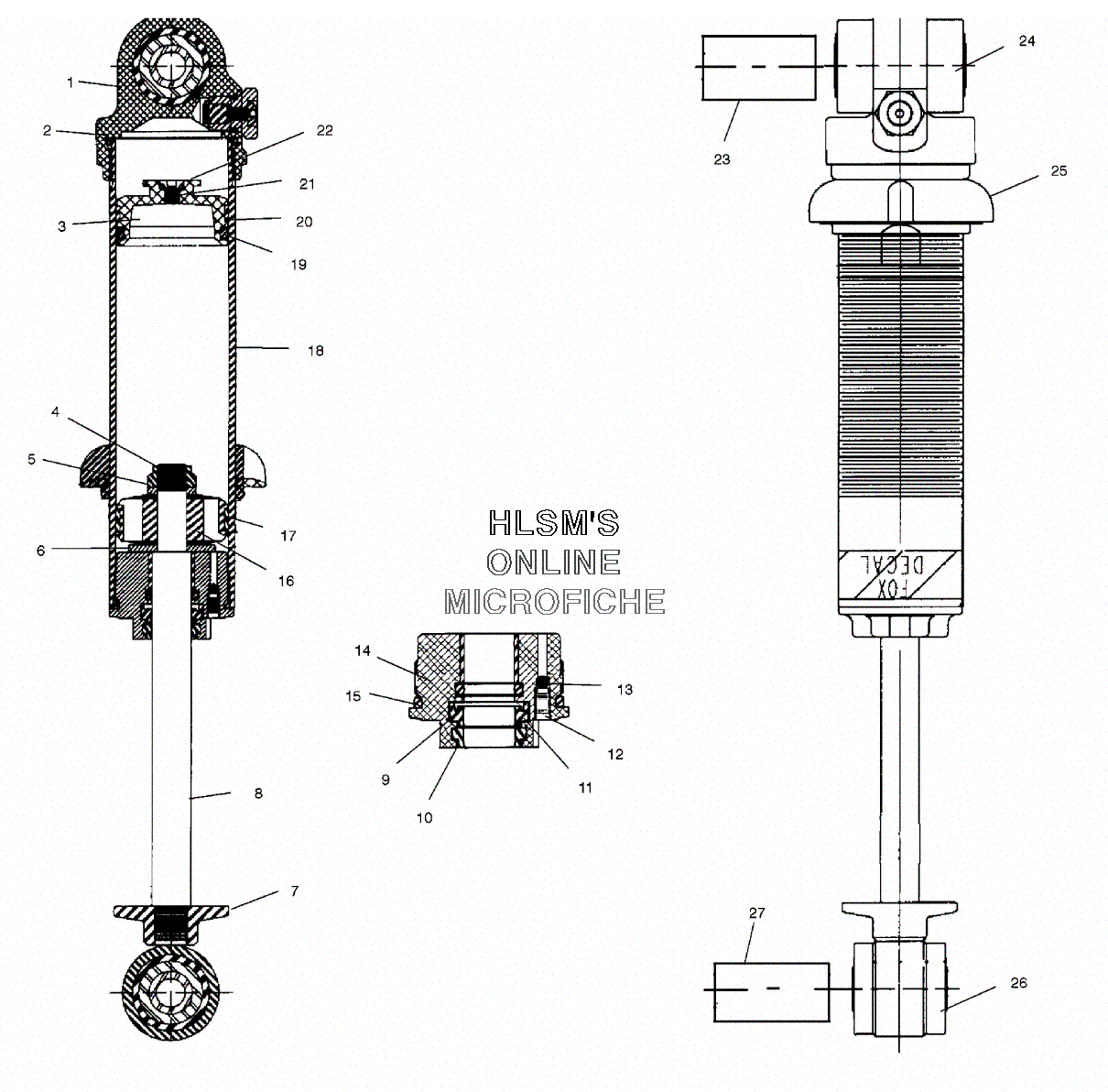

SUSPENSION - FOX SHOCK - FRONT TRACK для Polaris 700 XC SP (BLACK) (S01NP7ASA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1A
    7041847 SHOCK, TRACK, FOX (FRONT)
    SHOCK, TRACK, FOX (FRONT)
  • 1
    1500315 CAP, ASSY., BODY
    CAP, ASSY., BODY
  • 2
    1500108 O-RING (.103W1.549ID)
    O-RING (.103W1.549ID)
  • 3
    1500187 PISTON FLOATING
    PISTON FLOATING
  • 4
    1500016 NUT, LOCK
    NUT, LOCK
  • 5
    1500015 BUSHING, BACKUP
    BUSHING, BACKUP
  • 6
    1500017 PLATE (TOP/OUT
    PLATE (TOP/OUT
  • 7
    1500164 EYELET, BASE
    EYELET, BASE
  • 8
    1500321 SHAFT (.498X6.25 TLG)
    SHAFT (.498X6.25 TLG)
  • 9
    1500266 UCUP4300 URETH, 03601006
    UCUP4300 URETH, 03601006
  • 10
    1500268 SEAL, WIPER, URETHANE
    SEAL, WIPER, URETHANE
  • 11
    1500021 O-RING INNER
    O-RING INNER
  • 12
    1500070 SCREW
    SCREW
  • 13
    1500071 BALL
    BALL
  • 14
    1500186 BEARING ASSY.
    BEARING ASSY.
  • 15
    1500020 O-RING (.103W1.299ID)
    O-RING (.103W1.299ID)
  • 16
    2200618 VALVE PISTON KIT
    VALVE PISTON KIT
  • 17
    1500002 DAMPER, PISTONRING, FOX
    DAMPER, PISTONRING, FOX
  • 18
    1500318 BODY, THREADED (6.15 TLG, 4.7)
    BODY, THREADED (6.15 TLG, 4.7)
  • 19
    1500003 O-RING, ENDCAP, FOX,
    O-RING, ENDCAP, FOX,
  • 20
    1500006 RING, PISTON, FLOATING
    RING, PISTON, FLOATING
  • 21
    1500022 O-RING, DRUM (OUTER)
    O-RING, DRUM (OUTER)
  • 22
    1500018 SCREW
    SCREW
  • 23
    1500312 SLEEVE (.56X.81X1.68)
    SLEEVE (.56X.81X1.68)
  • 24
    1500308 BUSHING (.35ILG) (.82TLG)
    BUSHING (.35ILG) (.82TLG)
  • 25
    1500323 RING, PRELOAD, AL (1.8 FLG)
    RING, PRELOAD, AL (1.8 FLG)
  • 26
    1500309 BUSHING (.35ILG) (.595TLG)
    BUSHING (.35ILG) (.595TLG)
  • 27
    1500310 SLEEVE (.56X.81X1.2)
    SLEEVE (.56X.81X1.2)
