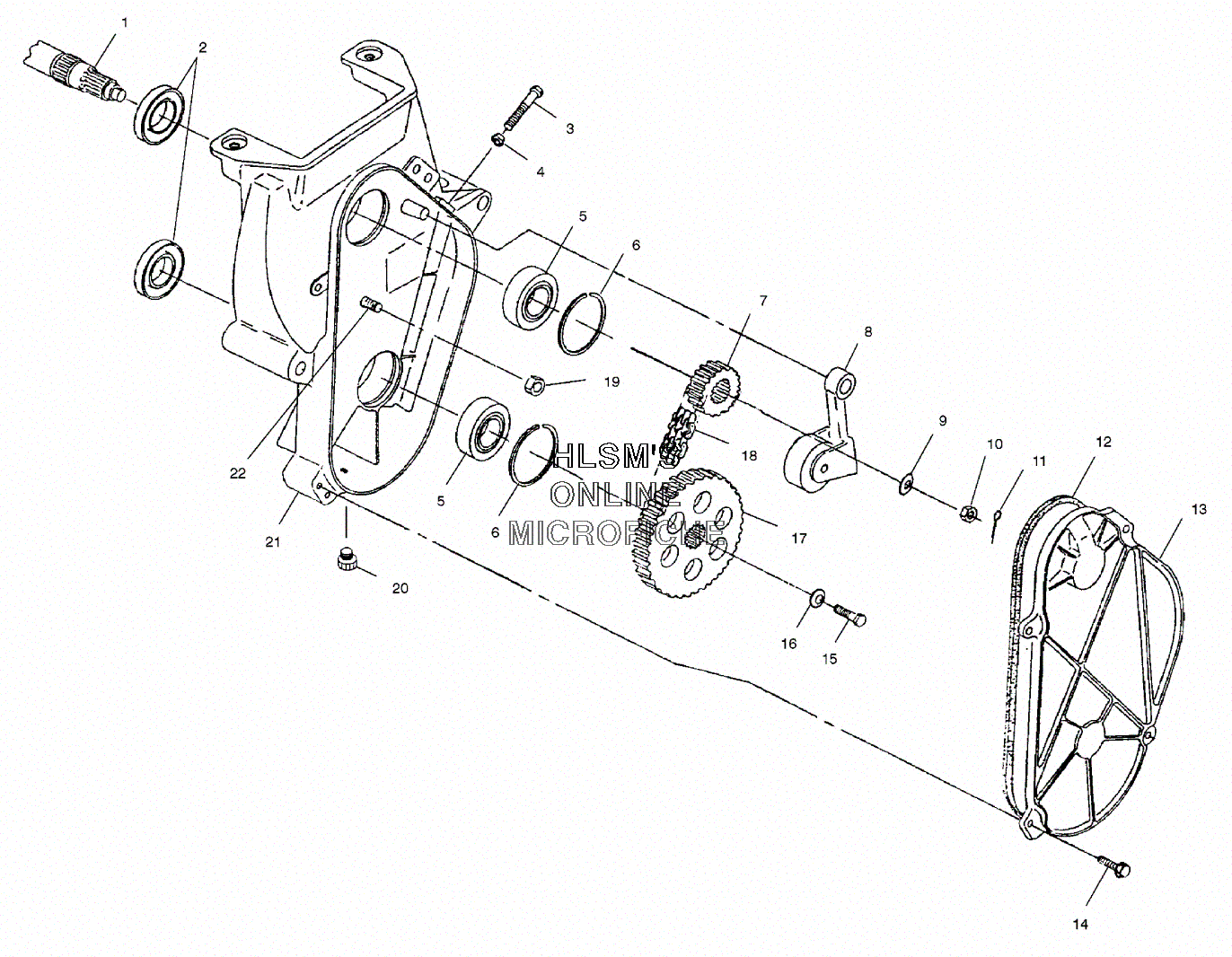

CHAINCASE ASSEMBLY для Polaris 700 RMK 136'' (S01SR7AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 2
    3610030 SEAL, OIL
    SEAL, OIL
  • 3
    7515551 SCREW
    SCREW
  • 4
    7542404 NUT
    NUT
  • 5
    3514309 BEARING, BALL
    BEARING, BALL
  • 6
    7718406 RING, RETAINING
    RING, RETAINING
  • 7
    3221096 SPROCKET, SPLINE (20 TEETH, 3/4W) HV
    SPROCKET, SPLINE (20 TEETH, 3/4W) HV
  • 8
    1332213 TIGHTENER, CHAINCASE (INCLUDES BEARING, BLOCK, WHEEL, WASHER, PIN)
    TIGHTENER, CHAINCASE (INCLUDES BEARING, BLOCK, WHEEL, WASHER, PIN)
  • 8
    3553002 BEARING
    BEARING
  • 8
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 8
    7558702 WASHER THRUST
    WASHER THRUST
  • 8
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 9
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 10
    7542811 NUT
    NUT
  • 11
    7661401 COTTER PIN
    COTTER PIN
  • 12
    5411207 GASKET, CHAINCASE, LONG
    GASKET, CHAINCASE, LONG
  • 13
    5630691 COVER, CHAINCASE
    COVER, CHAINCASE
  • 14
    7512242 SCREW
    SCREW
  • 15
    7515350 SCREW
    SCREW
  • 16
    7571618 WASHER
    WASHER
  • 17
    3222108 SPROCKET, 3/4W, 15/39 TEETH HYVO
    SPROCKET, 3/4W, 15/39 TEETH HYVO
  • 18
    3221112 CHAIN, HYVO 68 P, 3/4W
    CHAIN, HYVO 68 P, 3/4W
  • 19
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 20
    7052115 PLUG
    PLUG
  • 21
    5131455 CHAINCASE, VENTED
    CHAINCASE, VENTED
  • 22
    7515477 BOLT
    BOLT
