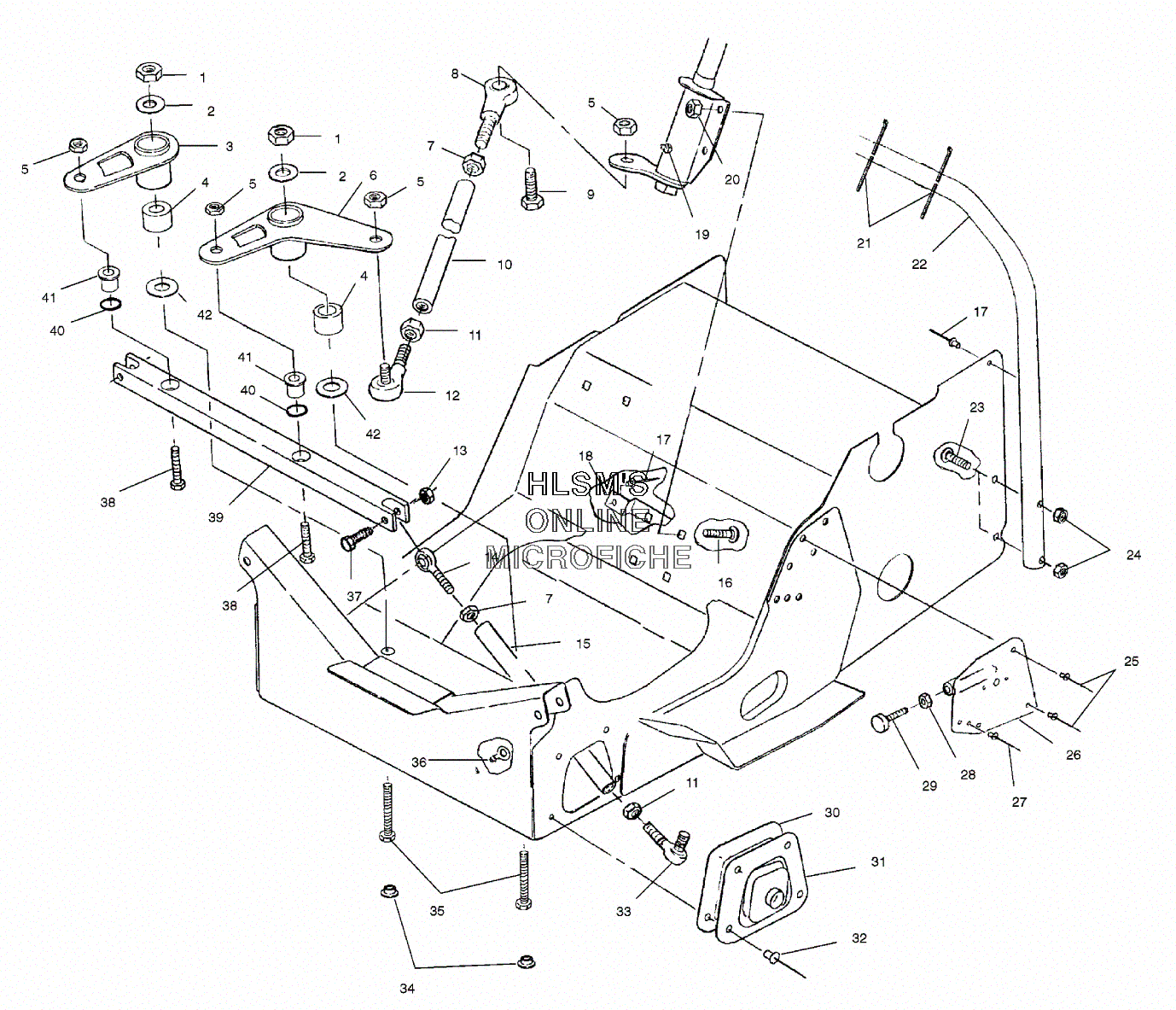

STEERING ASSEMBLY для Polaris 600 RMK 136'' (S01SR6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17547029 NUT, FLEX LOCKNUT, FLEX LOCK
-
27555721 WASHERWASHER
-
31820579 IDLER ARM (INCL. 4)IDLER ARM (INCL. 4)
-
45010468 SPACERSPACER
-
57542403 NUT LOCKNUT LOCK
-
61822562 ARM, PITMAN ASSY. (INCL. 4)ARM, PITMAN ASSY. (INCL. 4)
-
77542424 NUTNUT
-
87060164 ROD END (LEFT)ROD END (LEFT)
-
97512404 BOLTBOLT
-
105333411 ROD, DRAGLINKROD, DRAGLINK
-
117542401 NUT HEXNUT HEX
-
127060174 ROD, END (3/8 HI-ANGLE) (RIGHT)ROD, END (3/8 HI-ANGLE) (RIGHT)
-
137542411 NUT LOCKNUT LOCK
-
147061046 ROD END (3/8-24 LONG) (LEFT)ROD END (3/8-24 LONG) (LEFT)
-
155132182 ROD, TIEROD, TIE
-
167517428 BOLTBOLT
-
177661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
185241997 BRACKET, BOLT RETAINERBRACKET, BOLT RETAINER
-
197080424 FITTING, LUBEFITTING, LUBE
-
207542303 NUT FLEX, LOCNUT FLEX, LOC
-
217080804 CABLE TIE, RELEASABLE (5 1/2'')CABLE TIE, RELEASABLE (5 1/2'')
-
221013152-067 STEERING, HOOPSTEERING, HOOP
-
237512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
247542103 NUT, LOCKNUT, LOCK
-
257661639 RIVETRIVET
-
261012618 STOP, TORQUESTOP, TORQUE
-
277661079 RIVETRIVET
-
287542404 NUTNUT
-
293110078 STOP, TORQUESTOP, TORQUE
-
305411249 BOOT, TIERODBOOT, TIEROD
-
315211796-067 PLATE, BOOTPLATE, BOOT
-
327621323 POP, RIVETPOP, RIVET
-
337061047 ROD END-3/8, HIGH ANGLE LONG (LEFT)ROD END-3/8, HIGH ANGLE LONG (LEFT)
-
347080689 PLUG, HOLEPLUG, HOLE
-
357517328 SCREWSCREW
-
364020139 CLIP, PLASTICCLIP, PLASTIC
-
377515434 SCREWSCREW
-
387517574 SCREWSCREW
-
391820691 STEERING RACKASSY., W/WEBBS (LEFT)STEERING RACKASSY., W/WEBBS (LEFT)
-
405411220 O-RINGO-RING
-
415010384 TUBE, SPACERTUBE, SPACER
-
427556053 WASHERWASHER
