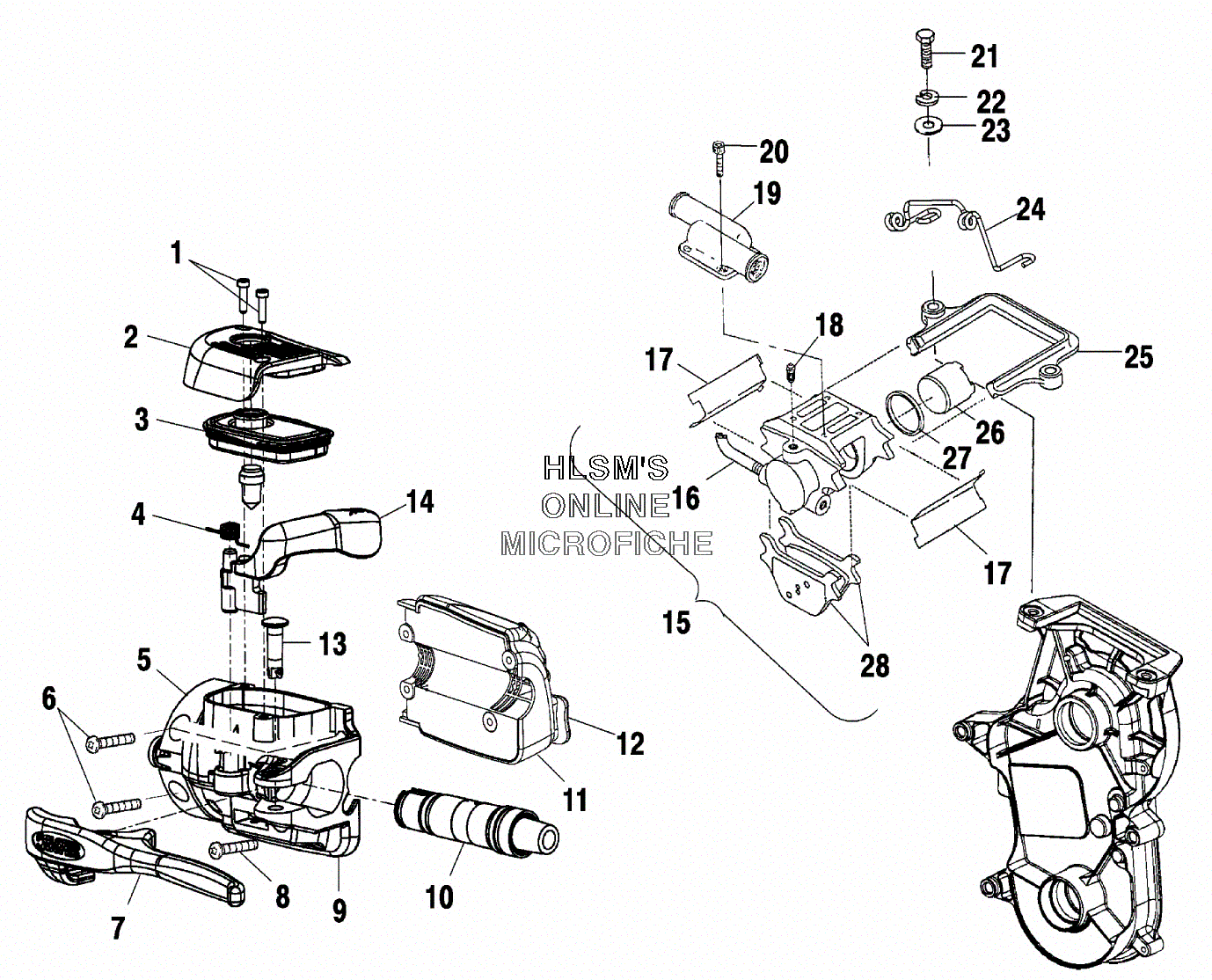

BRAKE ASSEMBLY для Polaris 500 XC SP (BLUE) (S01NP5CSB) - 2001 года выпуска

№

Артикул

Название
1

2201254 COVER SCREW KIT (HAYES)

COVER SCREW KIT (HAYES)
2

2201255 COVER ASSY KIT (HAYES) (INCL. 1, 3)

COVER ASSY KIT (HAYES) (INCL. 1, 3)
4

2201250 PARKLEVER SPRING KIT

PARKLEVER SPRING KIT
5

2050087 KASSY, MASTER CYLINDER, HAYES KIT (INCL. 2, 4, 7, 9, 10, 13)

KASSY, MASTER CYLINDER, HAYES KIT (INCL. 2, 4, 7, 9, 10, 13)
6

7517441 SCREW

SCREW
7

2201253 LEVER AND PIVOT PIN KIT (HAYES)

LEVER AND PIVOT PIN KIT (HAYES)
8

7517566 SCREW

SCREW
9

2201249 ASSY, MASTER CYLINDER, HAYES KIT

ASSY, MASTER CYLINDER, HAYES KIT
9

4010157 SWITCH, BRAKE LIGHT

SWITCH, BRAKE LIGHT
10

2201248 5/8'' CARTRIDGE SUB-ASSY. KIT

5/8'' CARTRIDGE SUB-ASSY. KIT
11

2010167 CONTROL ASSY (LEFT) (BASIC)

CONTROL ASSY (LEFT) (BASIC)
12

5433291 BUTTON SWITCH HI/LO

BUTTON SWITCH HI/LO
13

2201252 PIVOT PIN, ALUM W/SNAP RING KIT

PIVOT PIN, ALUM W/SNAP RING KIT
14

2201251 PARKLEVER AND SPRING KIT (INCL. 4)

PARKLEVER AND SPRING KIT (INCL. 4)
15

1910344 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 28)

BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 28)
16

1910417 LINE, BRAKE, EDGE

LINE, BRAKE, EDGE
17

2200467 CLIP SPRING KIT (QTY. 2)

CLIP SPRING KIT (QTY. 2)
18

1930735 INLET KIT

INLET KIT
19

1930728 COOLER, WATER, BRAKE

COOLER, WATER, BRAKE
19

2201024 GASKET, BRAKE COOLER

GASKET, BRAKE COOLER
20

1930729 SCREW SET (PKG. OF 4)

SCREW SET (PKG. OF 4)
21

7515521 BOLT

BOLT
22

7552603 WASHER

WASHER
23

7555801 WASHER

WASHER
24

5244413 GUIDE, ROPE

GUIDE, ROPE
25

1930733 CALIPER BRACKET KIT

CALIPER BRACKET KIT
26

1930734 PISTON SEAL KIT (INCL. 27)

PISTON SEAL KIT (INCL. 27)
27

2200466 SEAL

SEAL
28

2201430 BRAKE, PAD TYPE 81 KIT (LARGE) (INCL. 17)

BRAKE, PAD TYPE 81 KIT (LARGE) (INCL. 17)
