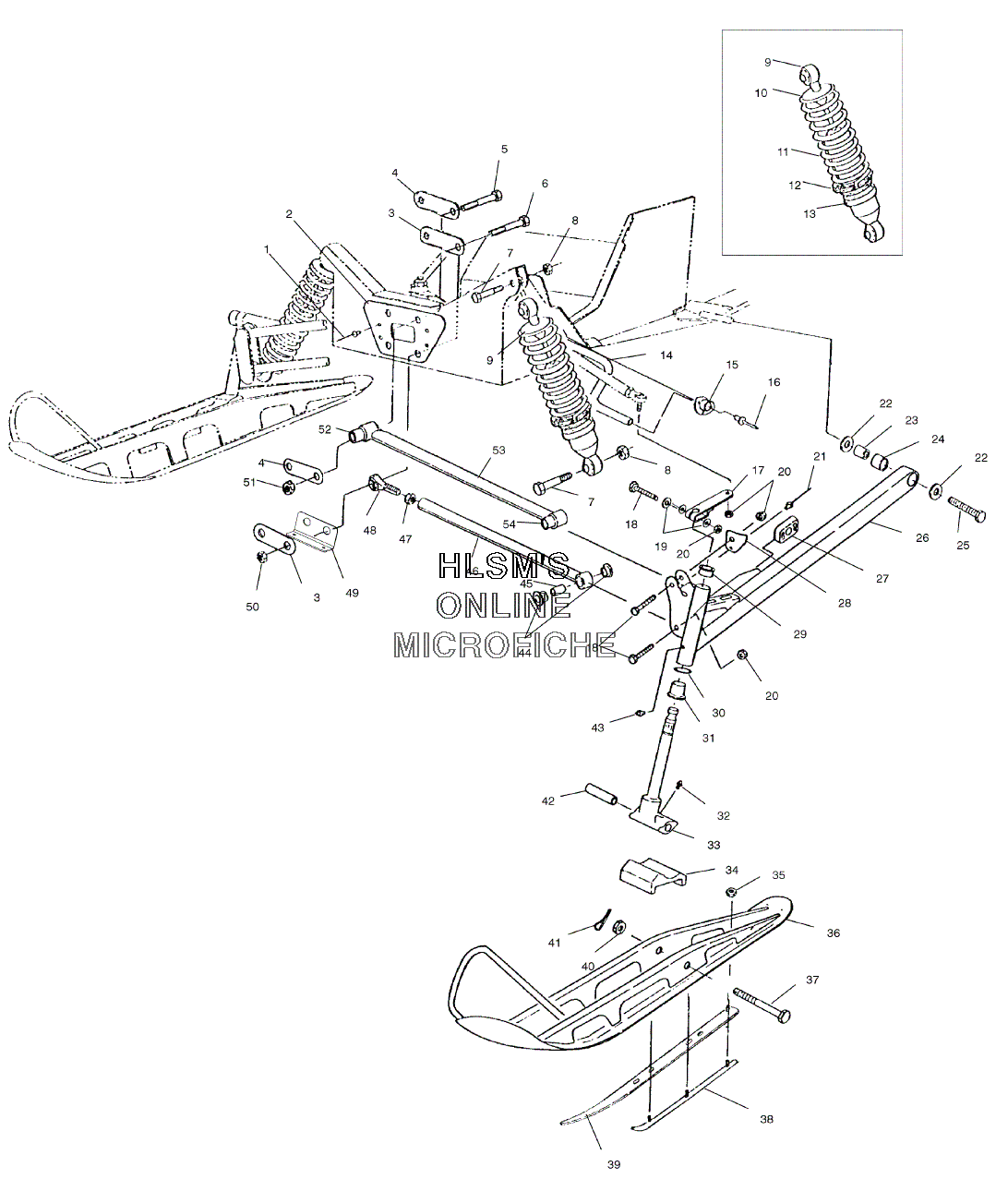

SUSPENSION - FRONT W/ SKI для Polaris SUPERSPORT (WHITE) (S00SB5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
17661638 RIVET, INTERLOCK, BRIVET, INTERLOCK, B
-
25211589-067 BRACE, (BLACK)HD/STRG, (BLACK).BRACE, (BLACK)HD/STRG, (BLACK).
-
35211345 STRAP, SPACER BOTTOMSTRAP, SPACER BOTTOM
-
45211344 STRAP, SPACER TOPSTRAP, SPACER TOP
-
57512582 BOLTBOLT
-
67512684 BOLTBOLT
-
77515415 BOLTBOLT
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041539 SHOCK, GAS, IFSSHOCK, GAS, IFS
-
105630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
117041552-067 SPRING, COMP, IFSSPRING, COMP, IFS
-
125431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
131500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
145224749-067 BAR, SWAY, 9/16 (X-12)(BLACK)BAR, SWAY, 9/16 (X-12)(BLACK)
-
155432412 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621433 RIVETRIVET
-
175241560-067 ARM, STRG, (BLACK)ARM, STRG, (BLACK)
-
187517583 SCR-3/8-24X2 HX/CP GR5-Y-SPSCR-3/8-24X2 HX/CP GR5-Y-SP
-
197555832 WASHERWASHER
-
207542403 NUT LOCKNUT LOCK
-
217661643 RIVET-3/16-.214-.420RIVET-3/16-.214-.420
-
227555721 WASHERWASHER
-
235010310 TUBE, BUSHINGTUBE, BUSHING
-
245410872 PIVOT, TRLG.ARM, RUBBERPIVOT, TRLG.ARM, RUBBER
-
257512557 BOLTBOLT
-
261822506 ASSY.-TRAILING ARM (LEFT), (BLACK) (INCL. 23, 24)ASSY.-TRAILING ARM (LEFT), (BLACK) (INCL. 23, 24)
-
261822507 ASSY.-TRAILING ARM (RIGHT), (BLACK) (INCL. 23, 24)ASSY.-TRAILING ARM (RIGHT), (BLACK) (INCL. 23, 24)
-
275432674 SLIDE, SWAYBAR, 9/16SLIDE, SWAYBAR, 9/16
-
285241569-067 STOP (LEFT), STRG, (BLACK).STOP (LEFT), STRG, (BLACK).
-
285241570-067 STOP (RIGHT), STRG, (BLACK).STOP (RIGHT), STRG, (BLACK).
-
293573909 BUSHING-FLANGEBUSHING-FLANGE
-
307556509 WASHER SPECIALWASHER SPECIAL
-
313574208 BUSHING, SPINDLE HSG,BUSHING, SPINDLE HSG,
-
327080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
336230102-067 SHAFT, SPINDLE, TRLG, (BLACK)SHAFT, SPINDLE, TRLG, (BLACK)
-
345411083 STOP, RUBBERSTOP, RUBBER
-
357542324 NUTNUT
-
361820430-067 SKI WELDSKI WELD
-
377515462 BOLTBOLT
-
381820318-067 SKAG, (BLACK).SKAG, (BLACK).
-
391011829-067 PLATE, SKAGPLATE, SKAG
-
407542438 NUT, CASTLENUT, CASTLE
-
417661209 PIN-COTTERPIN-COTTER
-
425010158 BUSHING, PIVOT,BUSHING, PIVOT,
-
437080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
445431486 BUSH, RAD.ROD PIVOT, OUT.BUSH, RAD.ROD PIVOT, OUT.
-
455010127 BUSHING-RADIUS ROD,BUSHING-RADIUS ROD,
-
461822383-067 ROD, RAD, LOWER, (BLACK).ROD, RAD, LOWER, (BLACK).
-
477542711 NUT-JAMNUT-JAM
-
487061027 ROD END-RADIUS (RIGHT), LOWERROD END-RADIUS (RIGHT), LOWER
-
495242578 BRKT, RAD.ROD, BTM.BRKT, RAD.ROD, BTM.
-
507542703 NUT FLEX,NUT FLEX,
-
517542503 NUT, LOCK,NUT, LOCK,
-
525411095 BUSHING, PIVOT, 7/16BUSHING, PIVOT, 7/16
-
531822510 ROD, RAD, UPPER, FIXEDROD, RAD, UPPER, FIXED
-
545411099 BUSHING, RAD.ROD PIVOT, 3/8BUSHING, RAD.ROD PIVOT, 3/8
