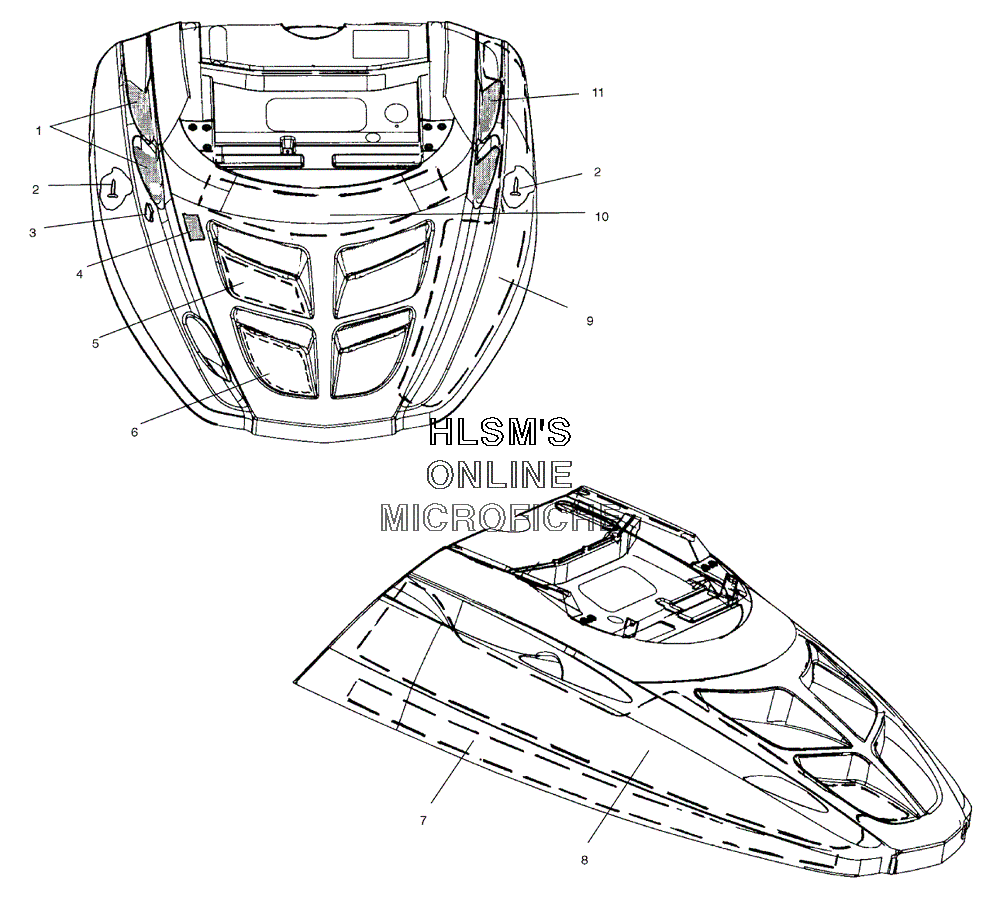

HOOD - FOAM/FOIL для Polaris SUPERSPORT (WHITE) (S00SB5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
15242858-067 SCREEN (RIGHT), HOOD, (BLACK).SCREEN (RIGHT), HOOD, (BLACK).
-
27511864 BOLTBOLT
-
37670040 CLIP-U TYPECLIP-U TYPE
-
45811703 FOIL-HOOD TAB, REINFFOIL-HOOD TAB, REINF
-
55811621 FOIL, TAPE, W/CUTOUTFOIL, TAPE, W/CUTOUT
-
65811616 FOIL, TAPEFOIL, TAPE
-
75811612 FOIL (RIGHT), HOODFOIL (RIGHT), HOOD
-
85811611 FOIL/FOAM, HEAT SHIELD (LEFT), HD.FOIL/FOAM, HEAT SHIELD (LEFT), HD.
-
95811607 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
105811717 FOAM-HOOD CENTER, BEVELEDFOAM-HOOD CENTER, BEVELED
-
115243172-067 COVER-L/H LOUVER, F/C, (BLACK)COVER-L/H LOUVER, F/C, (BLACK)
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- • HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
