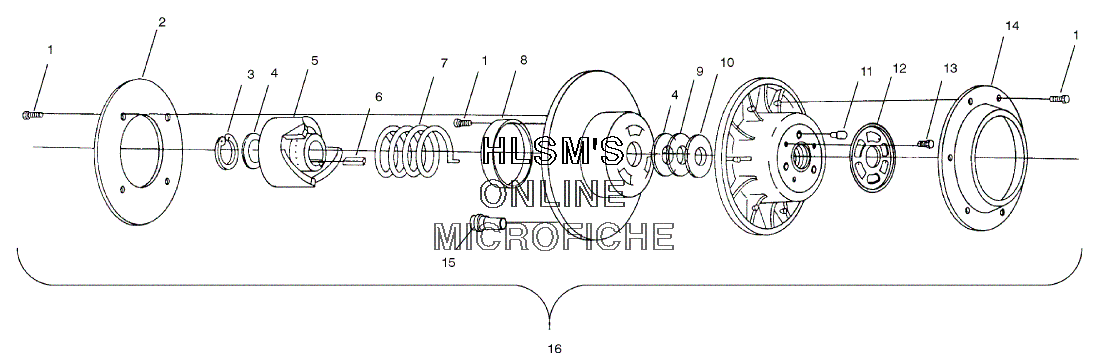

CLUTCH - DRIVEN для Polaris SUPERSPORT (WHITE) (S00SB5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25210749 PLATEPLATE
-
37714804 RING, RETAININGRING, RETAINING
-
47556804 WASHERWASHER
-
55130895 RAMP, DRIVEN, 36 DEGREERAMP, DRIVEN, 36 DEGREE
-
67721103 KEY SQUAREKEY SQUARE
-
77041646 SPRING, CLUTCH, SVR/BLUESPRING, CLUTCH, SVR/BLUE
-
83569803 BUSHING, D.U.BUSHING, D.U.
-
97555898 WASHER (.02)WASHER (.02)
-
107555865 WASHER, DRIVE CLUTCHWASHER, DRIVE CLUTCH
-
115020653 PIN, CLUTCHPIN, CLUTCH
-
125222878 CAM, DRIVEN, ADJUSTABLECAM, DRIVEN, ADJUSTABLE
-
137515133 SCREW *SCREW *
-
145243157 CAP-DRIVEN, VENTEDCAP-DRIVEN, VENTED
-
155430466 BUTTON, RAMPBUTTON, RAMP
-
161321815 CLUTCH, DRIVEN, 36D, SLV/BLUE (INCL. 1-14)CLUTCH, DRIVEN, 36D, SLV/BLUE (INCL. 1-14)
