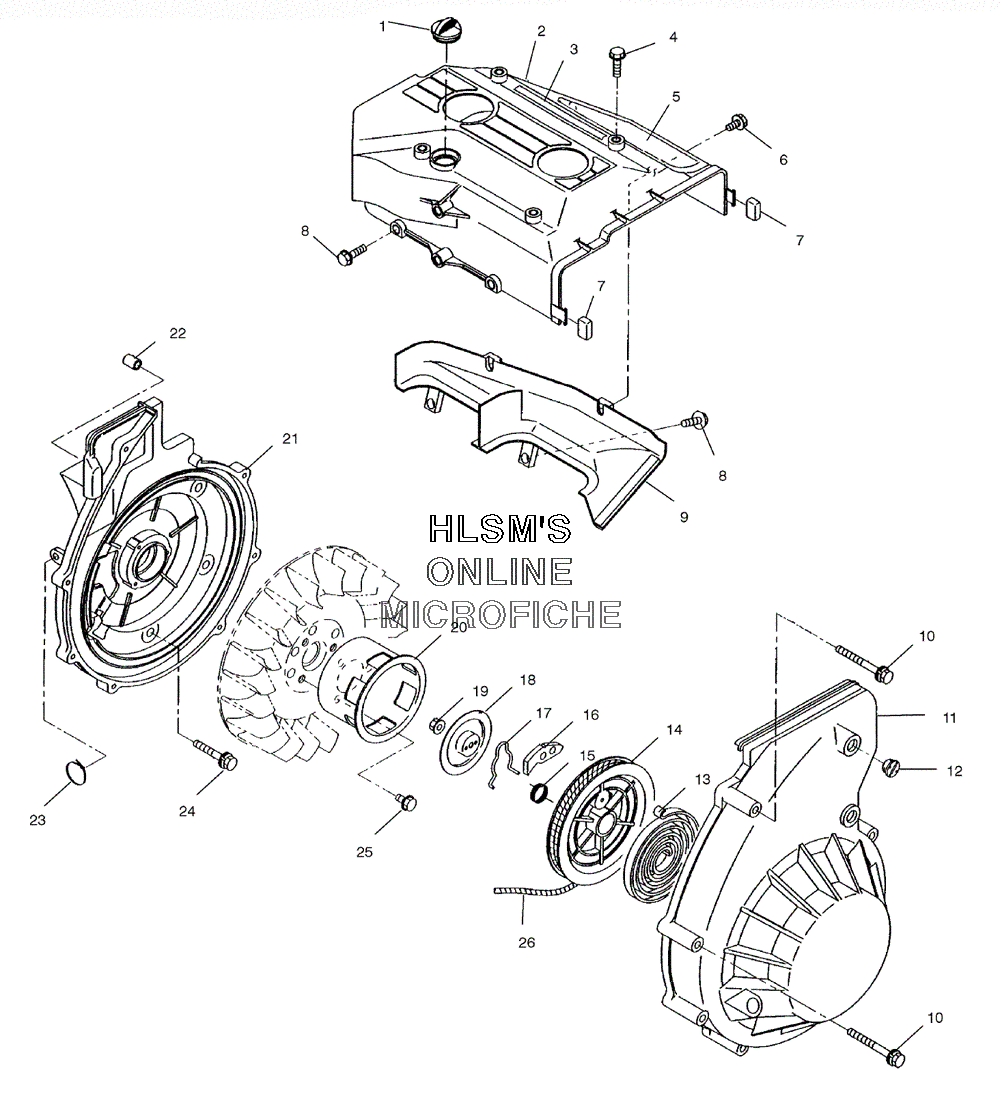

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris SUPERSPORT (BLUE) (S00SB5BSA) - 2000 года выпуска`
-
№АртикулНазвание
-
13085931 PLUG, HEAT VALVEPLUG, HEAT VALVE
-
23085689 BAFFLE, CYL.#1BAFFLE, CYL.#1
-
37077754 DECAL-''POLARIS'', ENG.SHROUD, BLUDECAL-''POLARIS'', ENG.SHROUD, BLU
-
43084566 BOLT, FLANGEBOLT, FLANGE
-
57077753 DECAL-''550'', ENGINE SHROUDDECAL-''550'', ENGINE SHROUD
-
63085693 BOLT, FLANGEBOLT, FLANGE
-
73085690 CAP, CYL.BAFFLECAP, CYL.BAFFLE
-
83085694 BOLT, FLANGEBOLT, FLANGE
-
93085691 BAFFLE #2, CYL.BAFFLE #2, CYL.
-
103083550 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
113085684 STARTER-RECOIL (INCL. 13-19, 26)STARTER-RECOIL (INCL. 13-19, 26)
-
113085722 STARTER CASE COMPL.STARTER CASE COMPL.
-
123086792 PLUG, RUBBERPLUG, RUBBER
-
133083376 SPRING, SPIRALSPRING, SPIRAL
-
143083377 REEL, REWINDREEL, REWIND
-
153083463 SPRING, RETURNSPRING, RETURN
-
163083378 RATCHETRATCHET
-
173083379 SPRING, FRICTIONSPRING, FRICTION
-
183083464 PLATE, FRICTIONPLATE, FRICTION
-
193083381 NUT, FLANGENUT, FLANGE
-
203085685 PULLEY, STARTINGPULLEY, STARTING
-
213085913 HOUSING, BLOWERHOUSING, BLOWER
-
223084857 PIN, STRAIGHTPIN, STRAIGHT
-
233084823 BAND, WIREBAND, WIRE
-
243084225 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
253085688 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
262870621 ROPE, 100 FT, NYL.STARTERROPE, 100 FT, NYL.STARTER
