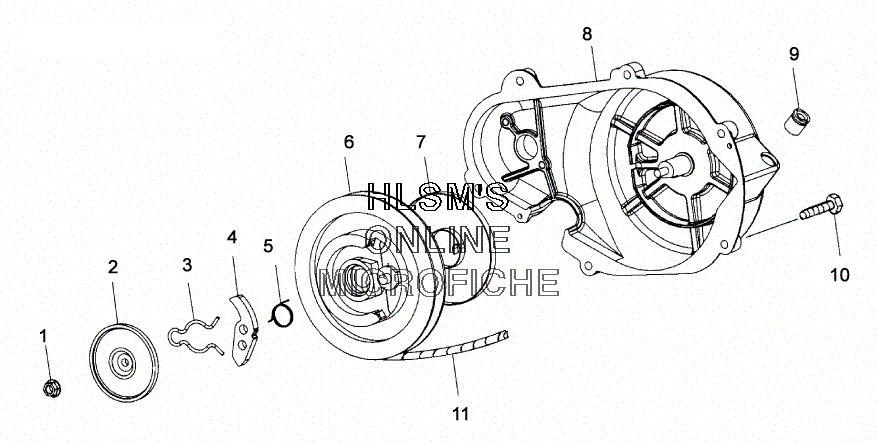

STARTER - RECOIL ASSEMBLY для Polaris 600 RMK (S00SR6DS) - 2000 года выпуска
‹-+›
-
№АртикулНазвание
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
43040165 RATCHETRATCHET
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040160 ASSY RECOIL E/R, SHEILDASSY RECOIL E/R, SHEILD
-
93040171 SUBSTITUTED BY 3083107SUBSTITUTED BY 3083107
-
107516823 SCREWSCREW
-
113040169 ROPE, STARTERROPE, STARTER
-
111201814 RECOIL ASSY. (SEE FOOTNOTE)RECOIL ASSY. (SEE FOOTNOTE)
