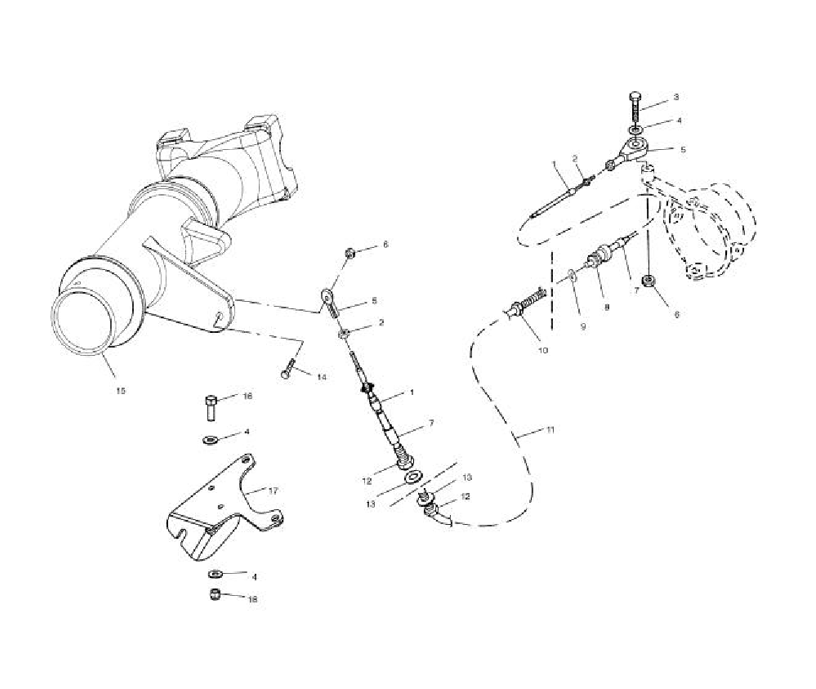

STEERING CABLE ASSY. - REAR для Polaris GENESIS I (IA) - 2004 года выпуска
-
№АртикулНазвание
-
15412206 SEAL-ROD, 1/4'', STEERING CBLSEAL-ROD, 1/4'', STEERING CBL
-
27542150 NUTNUT
-
37515120 BOLTBOLT
-
47555839 WASHER, FLATWASHER, FLAT
-
57060170 ROD ENDROD END
-
67542133 NUT, NYLOKNUT, NYLOK
-
75411818 SEAL, RODSEAL, ROD
-
81860115 SEAL, WASHER, STRG.SEAL, WASHER, STRG.
-
91860117 WASHER-CLIP, STRG.CABLEWASHER-CLIP, STRG.CABLE
-
101860114 NUTNUT
-
117081086 CABLE-STEERING, ACCABLE-STEERING, AC
-
127547001 NUTNUT
-
137555856 WASHER, FLATWASHER, FLAT
-
147518026 SCR-1/4-20-1.25, HEX-SSSCR-1/4-20-1.25, HEX-SS
-
167516717 BOLTBOLT
-
171821244 WELD-MOUNT, SHROUD, STR CBLWELD-MOUNT, SHROUD, STR CBL
-
187546704 NUT, NYLOKNUT, NYLOK
