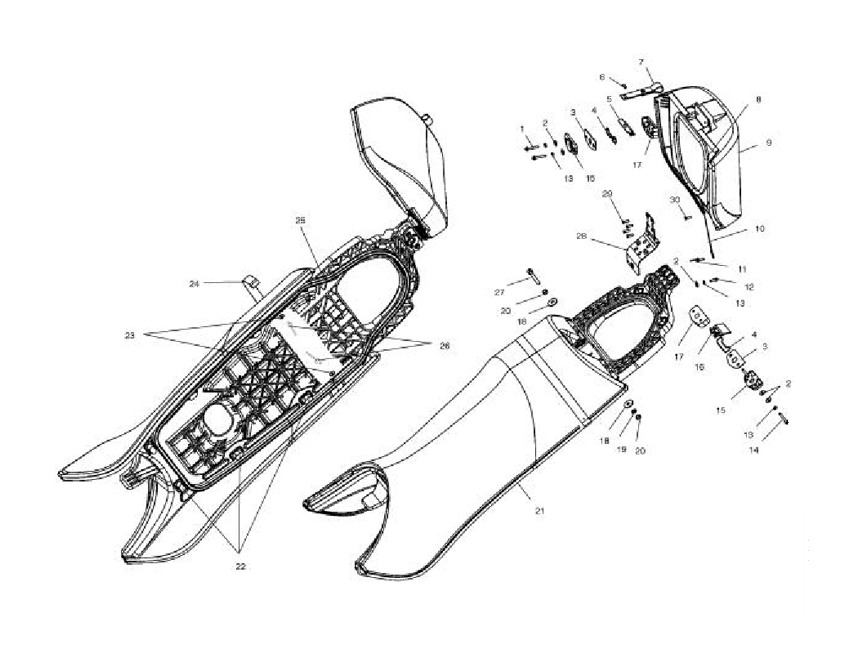

SHROUD для Polaris FREEDOM (DA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3280445 GAUGE-FUEL, WARNING 2'', 1PC HSNG
    GAUGE-FUEL, WARNING 2'', 1PC HSNG
  • 2
    2653011 LATCH ASM, CONSOLE
    LATCH ASM, CONSOLE
  • 3
    5434564-443 LID-CONSOLE, PUSH, S YLW CLR MET
    LID-CONSOLE, PUSH, S YLW CLR MET
  • 4
    7042007 SPRING-TORTION, 070.SS
    SPRING-TORTION, 070.SS
  • 5
    5521630 SEAL-LID, PORON, ADCHEM
    SEAL-LID, PORON, ADCHEM
  • 6
    7546705 NUT, 6 MM., S.S.
    NUT, 6 MM., S.S.
  • 7
    5812235 PAD
    PAD
  • 8
    7546704 NUT, NYLOK, SS.
    NUT, NYLOK, SS.
  • 9
    7556094 WASHER
    WASHER
  • 10
    5245455 HOOK, LATCH
    HOOK, LATCH
  • 11
    7517669 SCREW
    SCREW
  • 12
    7517668 SCREW
    SCREW
  • 13
    7556055 WASHER, LOCK, SS.
    WASHER, LOCK, SS.
  • 14
    7555831 WASHER, FLAT, S.S.
    WASHER, FLAT, S.S.
  • 15
    7081056 CABLE-CHOKE, SNGL.CARB, THK NECK
    CABLE-CHOKE, SNGL.CARB, THK NECK
  • 16
    5411674 GROMMET-ACCESS, 5.0 HOLE
    GROMMET-ACCESS, 5.0 HOLE
  • 17
    7546804 NUT, HEX, , NYLOK
    NUT, HEX, , NYLOK
  • 18
    7621491 RIVET,
    RIVET,
  • 19
    5434684 BRKT-HOOD POST
    BRKT-HOOD POST
  • 20
    7555835 WASHER, FLAT, S.S.,
    WASHER, FLAT, S.S.,
  • 21
    7547187 NUT-M8X1.25, SS
    NUT-M8X1.25, SS
  • 22
    5132781 PIN, LATCH
    PIN, LATCH
  • 23
    5411664 GROMMET-DECK, WIRE HARNESS
    GROMMET-DECK, WIRE HARNESS
  • 24
    7080138 CABLE TIE
    CABLE TIE
  • 25
    7661040 RIVET-POP 3/16
    RIVET-POP 3/16
  • 26
    5812357 COVER
    COVER
  • 27
    5811982 GASKET
    GASKET
  • 28
    5434562-443 SHROUD-STEER, 2'' DIA 6, AMP S YEL
    SHROUD-STEER, 2'' DIA 6, AMP S YEL
  • 29
    5812076 BUMPER, DOOR/SHROUD
    BUMPER, DOOR/SHROUD
  • 30
    7081037 KNOB, AB11116PAO
    KNOB, AB11116PAO
  • 31
    2080005 SCREW
    SCREW
  • 32
    7552613 WASHER, LOCK
    WASHER, LOCK
  • 33
    5333698 PIN-HINGE
    PIN-HINGE
  • 34
    5433384 HINGE, 3/16 PIN
    HINGE, 3/16 PIN
