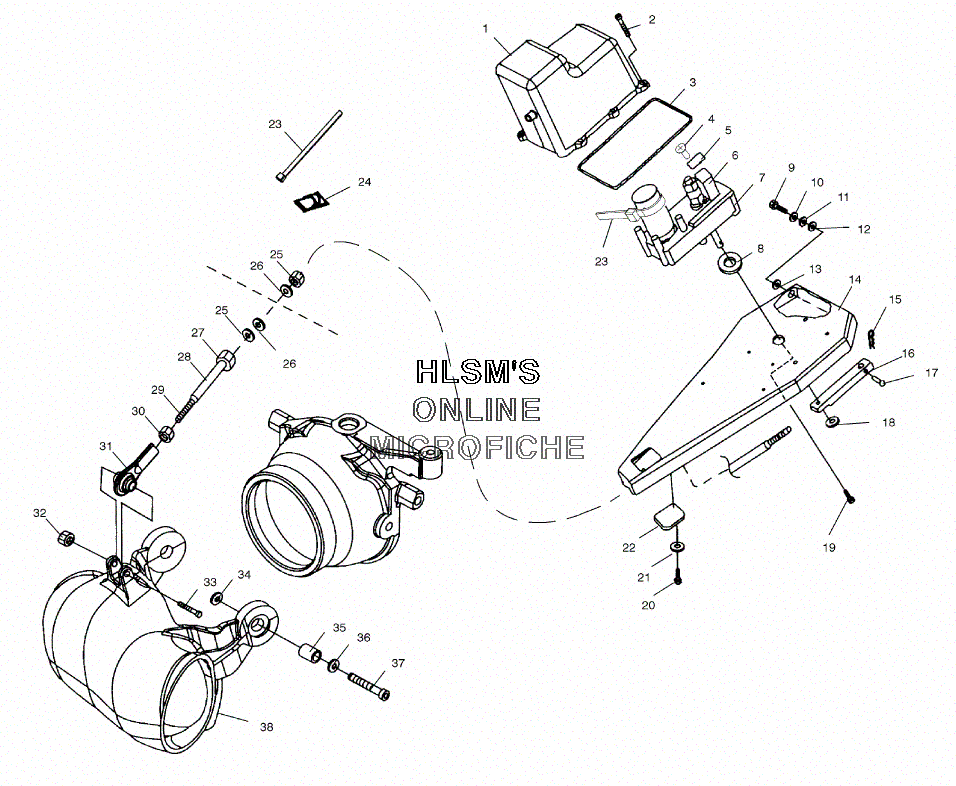

CARBURETOR для Polaris Freedom 3-Pass - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    1253368 CARBURETOR ASSY. (KEIHIN)
    CARBURETOR ASSY. (KEIHIN)
  • 1
    3050136 SCREW
    SCREW
  • 2
    2200687 FUELPUMP BODY KIT (KEIHIN)
    FUELPUMP BODY KIT (KEIHIN)
  • 3
    2200686 GASKET KIT FUELPUMP
    GASKET KIT FUELPUMP
  • 4
    5830062 GASKET, CARBURETOR (UPPER)
    GASKET, CARBURETOR (UPPER)
  • 5
    3050144 SCREEN, FUEL STRAINER
    SCREEN, FUEL STRAINER
  • 6
    2201309 PUMP, ACCEL.KIT
    PUMP, ACCEL.KIT
  • 7
    2200685 CHECKVALVE, MID-RANGE KIT
    CHECKVALVE, MID-RANGE KIT
  • 8
    2200733 NEEDLE VALVE 97DOM
    NEEDLE VALVE 97DOM
  • 9
    3050117 JET, MAIN 120 (KEIHIN)
    JET, MAIN 120 (KEIHIN)
  • 10
    3050189 JET, MAIN 148 (KEIHIN)
    JET, MAIN 148 (KEIHIN)
  • 11
    3050125 JET, PILOT 58 (KEIHIN)
    JET, PILOT 58 (KEIHIN)
  • 12
    3050119 JET, PILOT 42 (KEIHIN)
    JET, PILOT 42 (KEIHIN)
  • 13
    3050135 SCREW, JET BLOCK COVER
    SCREW, JET BLOCK COVER
  • 14
    3050139 COVER, JET BLOCK
    COVER, JET BLOCK
  • 15
    2200730 DIAPHRAGM, JET BLOCK KIT
    DIAPHRAGM, JET BLOCK KIT
  • 16
    3050137 SCREW, JET BLOCK
    SCREW, JET BLOCK
  • 17
    3050282 JET, BLOCK
    JET, BLOCK
  • 18
    3050147 O-RING, JET BLOCK
    O-RING, JET BLOCK
  • 19
    3050138 COLLAR
    COLLAR
  • 20
    3050148 O-RING (VALVE SEAT)
    O-RING (VALVE SEAT)
  • 21
    2200688 CHECKVALVE KIT MAIN (KEIHIN)
    CHECKVALVE KIT MAIN (KEIHIN)
  • 22
    2200689 IDLESCREW KIT (KEIHIN)
    IDLESCREW KIT (KEIHIN)
  • 23
    3050140 CAP, LIMITER
    CAP, LIMITER
  • 24
    5830043 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 25
    2200731 IDLESTOP SCREW KIT
    IDLESTOP SCREW KIT
