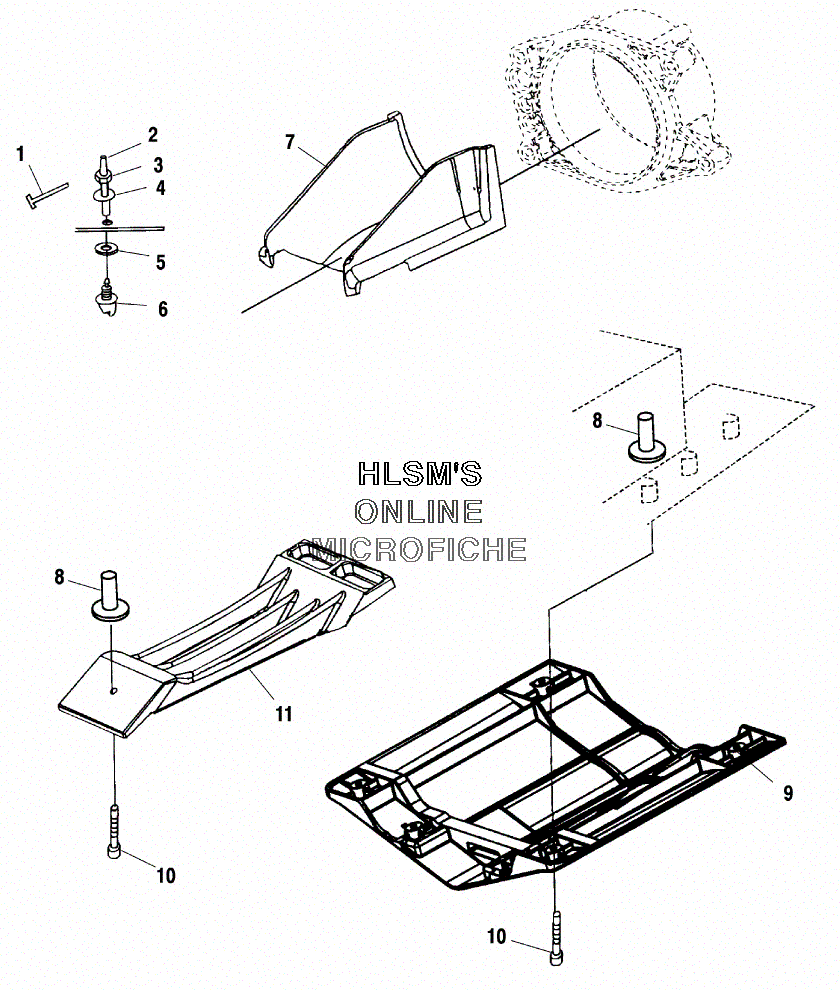

ENGINE MOUNTING W/ SHORT BLOCK для Polaris Genesis i 4-Pass Euro - 2001 года выпуска`
-
№АртикулНазвание
-
17515149 SCREW, SHOULDERSCREW, SHOULDER
-
27077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
33070189 SPARK PLUGSPARK PLUG
-
47075383 DECAL,''WARNINGDECAL,''WARNING
-
57556184 WASHER FLATWASHER FLAT
-
65631166 PLATE MOUNT, W/ WASHER (FRONT / BLACK)PLATE MOUNT, W/ WASHER (FRONT / BLACK)
-
77556170 WASHER, FLATWASHER, FLAT
-
85245460 LOCK, MOUNT PLATELOCK, MOUNT PLATE
-
97517330 SCREWSCREW
-
105244508 PLATE MOUNT, REPAIR (FRONT)PLATE MOUNT, REPAIR (FRONT)
-
113021253 MOUNT ENGINEMOUNT ENGINE
-
125211727 SHIM, ENGINE MOUNT (OPT)SHIM, ENGINE MOUNT (OPT)
-
137552610 WASHER, LOCKWASHER, LOCK
-
147542334 NUTNUT
-
157555848 WASHER, FLATWASHER, FLAT
-
167542725 NUT, NYLOKNUT, NYLOK
-
177556055 WASHER, LOCKWASHER, LOCK
-
187517497 BOLTBOLT
-
192201705 SHORT BLOCK ASSY. ( SEE FOOTNOTE)SHORT BLOCK ASSY. ( SEE FOOTNOTE)
-
205244176 CLIP, RETAINER TEMP SWITCHCLIP, RETAINER TEMP SWITCH
-
217516603 BOLTBOLT
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY BOX
- BILGE PUMP
- BILGE SIPHON
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ELECTRONIC MODULE
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- HULL
- INTAKE GRATE W/ RIDE PLATE
- MANIFOLD- CYLINDER W/ IGNITION
- OIL PUMP
- OIL TANK
- PROPULSION
- REVERSE
- SEAT
- SHROUD W/ INSTRUMENTS AND MIRRORS
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT
- THROTTLE BODY ASSY.
- TOOL KIT
