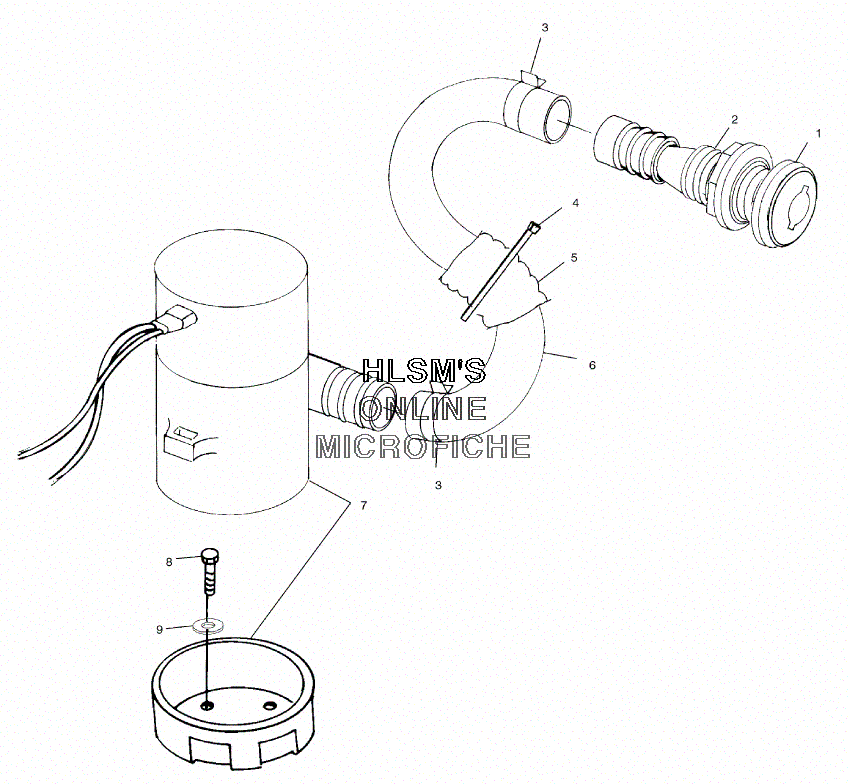

ENGINE FOGGING SYSTEM для Polaris Genesis 4-Pass - 2001 года выпуска

  • №
    Артикул
    Название
  • 1A
    2872635 FOGGING ASSY.
    FOGGING ASSY.
  • 1
    7080138 CABLE, TIE
    CABLE, TIE
  • 2
    7080484 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    7080476 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    7052139 FITTING, T
    FITTING, T
  • 5
    7075738 DECAL, PRIMER ENGINE FOGGER
    DECAL, PRIMER ENGINE FOGGER
  • 6
    8450062 OIL LINE (132 CM.) (OPT)
    OIL LINE (132 CM.) (OPT)
  • 7
    3160114 PRIMER, ENGINE FOG
    PRIMER, ENGINE FOG
  • 8
    7517710 SCREW
    SCREW
  • 9
    7552613 WASHER, LOCK
    WASHER, LOCK
  • 10
    7555870 WASHER, DISH
    WASHER, DISH
  • 11
    3240220 SEPARATOR, FUEL/WATER
    SEPARATOR, FUEL/WATER
  • 12
    7075732 DECAL, ''FOG OIL ONLY''
    DECAL, ''FOG OIL ONLY''
  • 13
    7555837 WASHER, FLAT
    WASHER, FLAT
  • 14
    7541931 NUT, HEX
    NUT, HEX
  • 15
    7052047 CHECKVALVE, VENT
    CHECKVALVE, VENT
  • 16
    7052138 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 17
    5432362 TANK, OIL FOG KIT
    TANK, OIL FOG KIT
  • 18
    5810279 GASKET
    GASKET
  • 19
    5432359 CAP, OIL BOTTLE
    CAP, OIL BOTTLE
  • 20
    7512045 BOLT
    BOLT
  • 21
    5244295 BRACKET, BOTTLE FOG
    BRACKET, BOTTLE FOG
