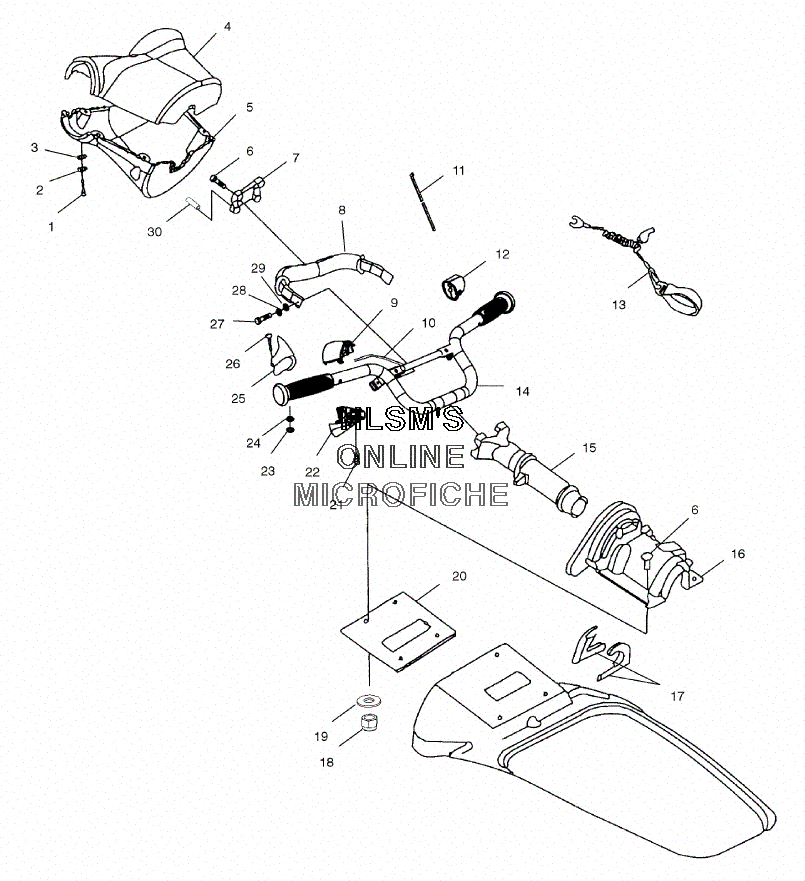

HANDLEBAR ASSY. W/ STEERING COLUMN для Polaris Virage 3-Pass - 2000 года выпуска`
-
№АртикулНазвание
-
17517717 SCREWSCREW
-
27552613 WASHER, LOCKWASHER, LOCK
-
37555836 WASHERWASHER
-
45433089-070 PAD, HANDLEBAR (BLACK)PAD, HANDLEBAR (BLACK)
-
55433819-070 PAD, HANDLEBAR W/DRAIN (BOTTOM/BLACK)PAD, HANDLEBAR W/DRAIN (BOTTOM/BLACK)
-
67517660 SCREWSCREW
-
75631017 CLAMP HANDLEBAR, W/PINCLAMP HANDLEBAR, W/PIN
-
85433355-070 HANDLE GRAB (BLACK)HANDLE GRAB (BLACK)
-
95433081 BLOCK THROTTLE, SPLITBLOCK THROTTLE, SPLIT
-
107080787 CABLE, THROTTLE W/THICK NECKCABLE, THROTTLE W/THICK NECK
-
117080138 CABLE TIECABLE TIE
-
122410168 SWITCH START/STOP/BILGESWITCH START/STOP/BILGE
-
137080675 LANYARD, W/WHISTLELANYARD, W/WHISTLE
-
141820820-070 HANDLEBAR ASSY., W/GRIP (BLACK)HANDLEBAR ASSY., W/GRIP (BLACK)
-
155132317 COLUMN STEERING, W/PINCOLUMN STEERING, W/PIN
-
165433136 STEERING, HOSUINGSTEERING, HOSUING
-
175433135 BEARING, STEERINGBEARING, STEERING
-
187542335 NUT, HEXNUT, HEX
-
197555831 WASHER, FLATWASHER, FLAT
-
205811551 GASKET, HOUSING STEERINGGASKET, HOUSING STEERING
-
217517787 SCREWSCREW
-
225433737 CLAMP, BLOCK THROTTLE NO TAPCLAMP, BLOCK THROTTLE NO TAP
-
237710426 RING, RETAINER EXTRING, RETAINER EXT
-
247555840 WASHER, FLATWASHER, FLAT
-
255433079 LEVER THROTTLE, THUMBLEVER THROTTLE, THUMB
-
267661053 PIN, RETAININGPIN, RETAINING
-
277517684 SCREWSCREW
-
287552615 WASHER, LOCKWASHER, LOCK
-
297556098 WASHERWASHER
-
307661099 PIN, ROLLPIN, ROLL
