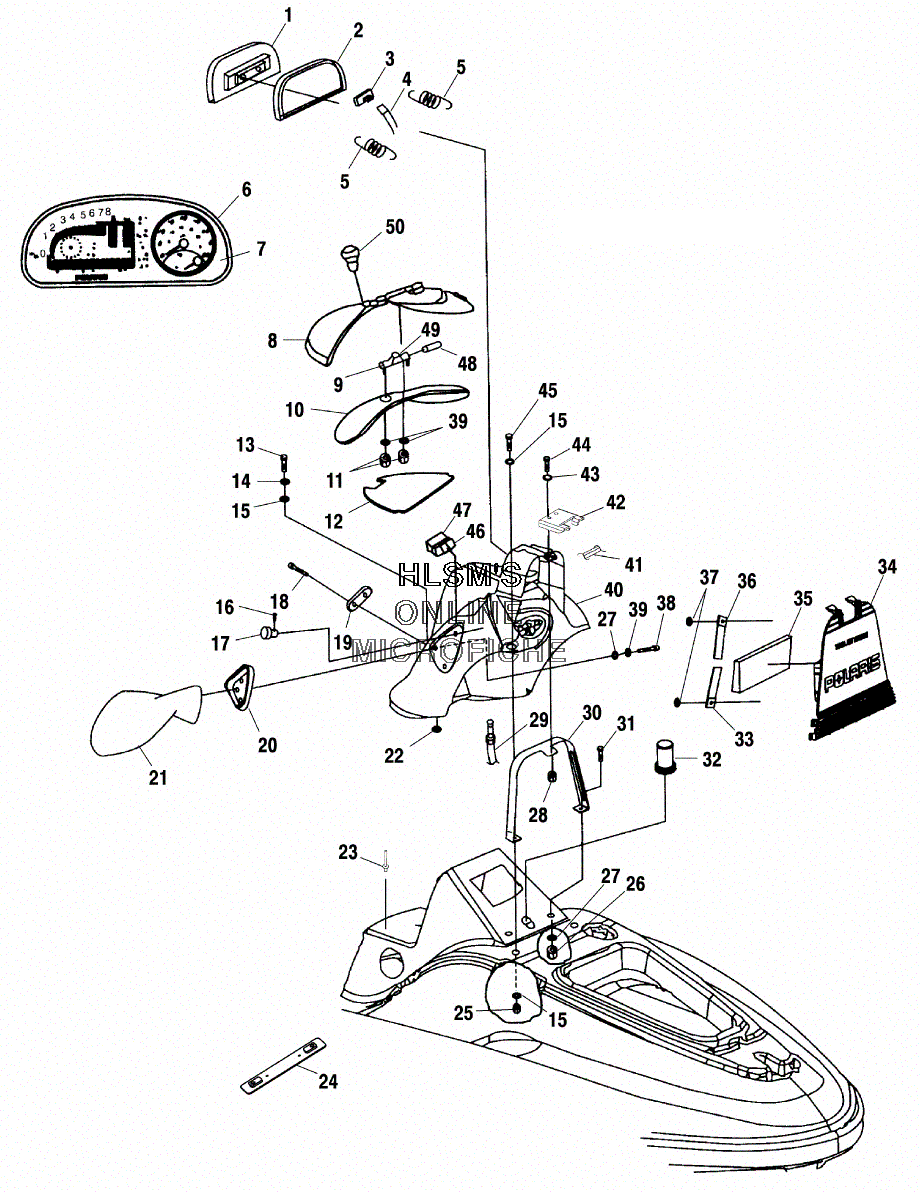

STEERING CABLE ASSY. для Polaris Genesis 4-Pass - 2000 года выпуска`
-
№АртикулНазвание
-
11860116 BOOT, STEERINGBOOT, STEERING
-
27542150 NUTNUT
-
37515120 BOLTBOLT
-
47555839 WASHER, FLATWASHER, FLAT
-
57060170 ROD, ENDROD, END
-
67542133 NUT, NYLOKNUT, NYLOK
-
71860115 SEAL, WASHER STEERINGSEAL, WASHER STEERING
-
81860117 WASHER, CLIP STEERING CABLEWASHER, CLIP STEERING CABLE
-
91860114 NUT, SPECIALNUT, SPECIAL
-
107080789 CABLE, STEERINGCABLE, STEERING
-
117542528 NUTNUT
-
121860103 WASHERWASHER
-
137571625 WASHER, LOCKWASHER, LOCK
-
141860101 SEAL, RODSEAL, ROD
-
157080931 TUBE, GUIDE ASSY. (5.2 INCH)TUBE, GUIDE ASSY. (5.2 INCH)
-
167060154 ROD ENDROD END
-
177555837 WASHER, FLATWASHER, FLAT
-
187541931 NUT, HEXNUT, HEX
-
197512041 BOLTBOLT
-
205132317 COLUMN, STEERINGCOLUMN, STEERING
-
217517660 SCREWSCREW
-
227555831 WASHER, FLATWASHER, FLAT
-
235244156 BRACKET, SUPPORT STEERINGBRACKET, SUPPORT STEERING
