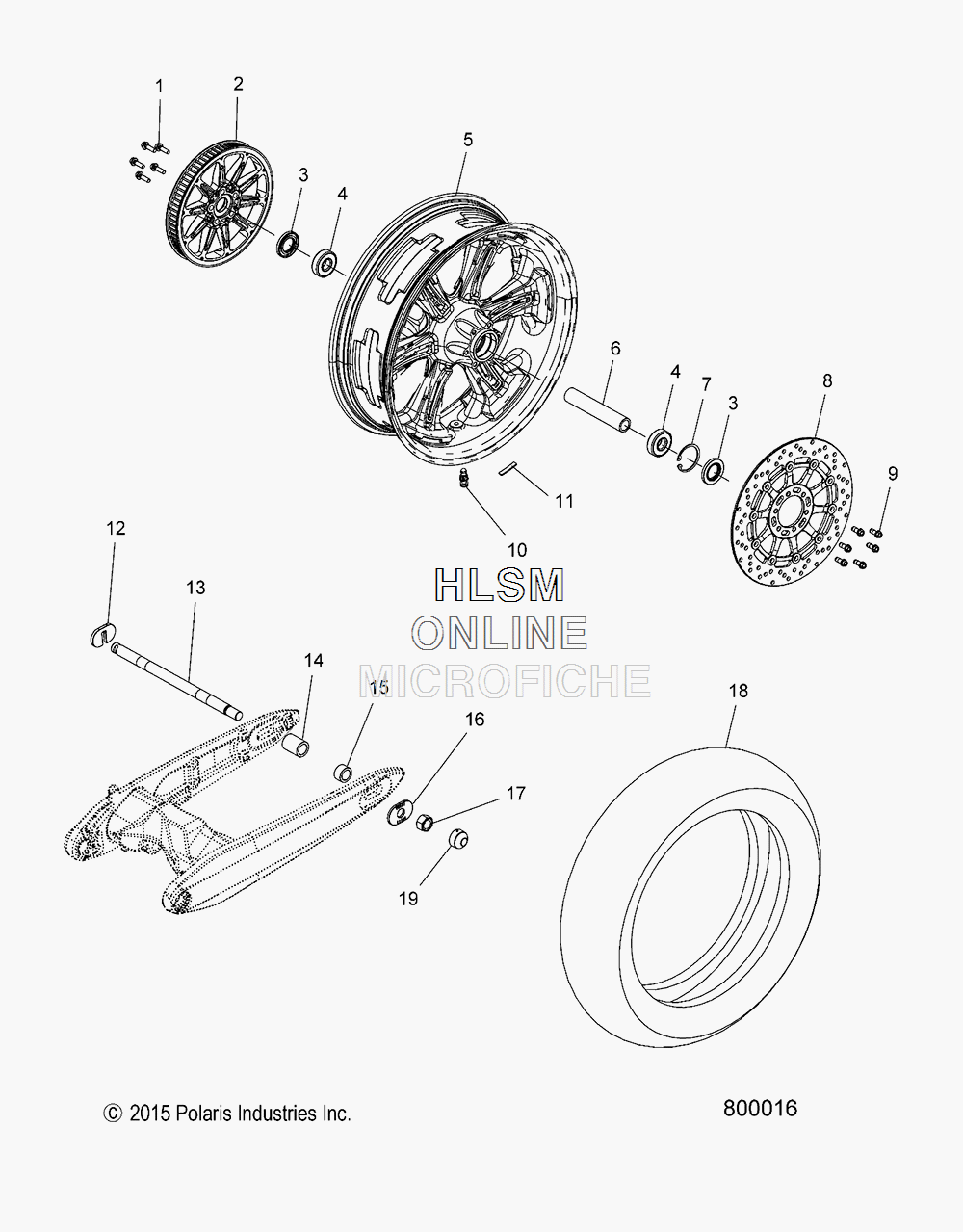

WHEELS- REAR для Polaris Vegas 8-Ball Gloss Black [V17CVBABAA] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7518878 SCREW
    SCREW
  • 2
    1333369-521 ASM., SPROCKET, 70T (BLACK ENGINE WRINKLE)
    ASM., SPROCKET, 70T (BLACK ENGINE WRINKLE)
  • 3
    3610094 SEAL
    SEAL
  • 4
    3514405 BEARING, BALL (20MMX52MMX15MM)
    BEARING, BALL (20MMX52MMX15MM)
  • 5
    1522515-463M ASM., WHEEL, REAR, CAST (FLAT BLACK MACHINE) (INCL. 3-7,10,11)
    ASM., WHEEL, REAR, CAST (FLAT BLACK MACHINE) (INCL. 3-7,10,11)
  • 6
    5335682 SPACER, BEARING, MID
    SPACER, BEARING, MID
  • 7
    7710526 RING, RETAINING
    RING, RETAINING
  • 8
    1911624-266 ROTOR, BRAKE (5MM) (BLACK)
    ROTOR, BRAKE (5MM) (BLACK)
  • 9
    7518661 SCREW
    SCREW
  • 10
    1522785 VALVE (90 DEG)
    VALVE (90 DEG)
  • 11
    1521682 WEIGHT, STEEL, BALANCE (BLACK)
    WEIGHT, STEEL, BALANCE (BLACK)
  • 12
    5248599 RETAINER-AXLE, REAR
    RETAINER-AXLE, REAR
  • 13
    5135743 AXLE, REAR
    AXLE, REAR
  • 14
    5631581 SPACER, WHEEL, REAR, RIGHT
    SPACER, WHEEL, REAR, RIGHT
  • 15
    5631479 SPACER, BEARING, REAR, LEFT
    SPACER, BEARING, REAR, LEFT
  • 16
    5248452-236 WASHER, INDICATOR, AXLE
    WASHER, INDICATOR, AXLE
  • 17
    7547226 NUT, HEX
    NUT, HEX
  • 18
    5413825 TIRE, REAR
    TIRE, REAR
  • 19
    7518449 SCR-SET,CUP POINT M4X0.7X6,SS (INT'L.)
    SCR-SET,CUP POINT M4X0.7X6,SS (INT'L.)
  • 19
    1017531 ASM-CVR,AXLE NUT,M18 (INT'L.)
    ASM-CVR,AXLE NUT,M18 (INT'L.)
