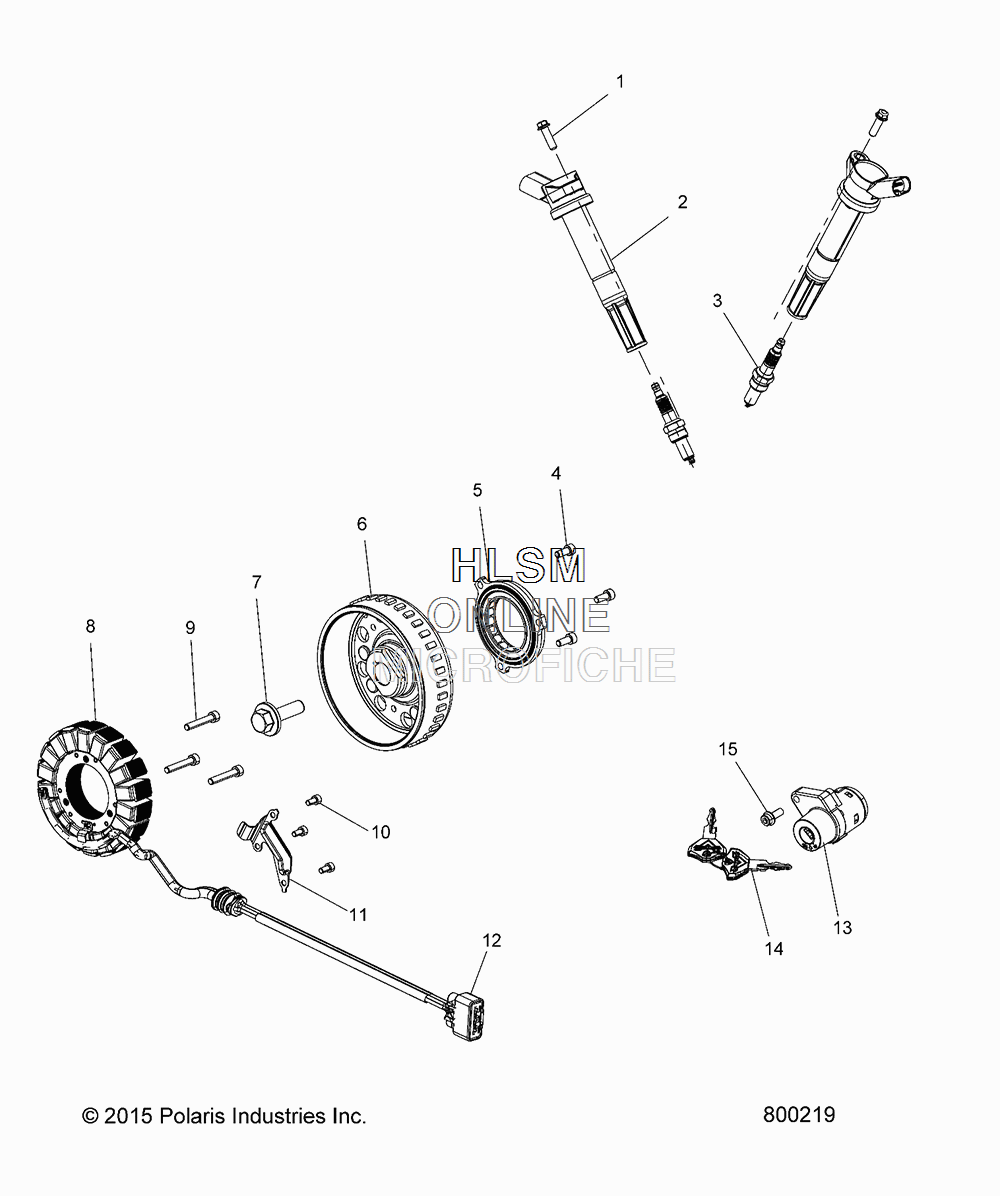

IGNITION SYSTEM для Polaris Octane Suede Metallic [V17FTB00AY] - 2017 года выпуска`
-
№АртикулНазвание
-
17520035 SCREWSCREW
-
24015017 COIL, IGNITIONCOIL, IGNITION
-
33022662 PLUG, SPARK, 10MMPLUG, SPARK, 10MM
-
47517431 SCREWSCREW
-
51204980 ASM., SPRAG CLUTCH HUB, STARTERASM., SPRAG CLUTCH HUB, STARTER
-
64014530 FLYWHEELFLYWHEEL
-
77520000 SCREW, HXFLSCREW, HXFL
-
84015586 STATORSTATOR
-
97517848 SCREW, M6SCREW, M6
-
107517847 SCREW, M5SCREW, M5
-
115258718 CLIP, STATOR WIRECLIP, STATOR WIRE
-
124014672 CONNECTORCONNECTOR
-
134014430-266 ASM., IGN./FUEL/STRG. LOCK (BLACK) (INT'L)(INCL. SWITCH, FUEL CAP, KEYS)ASM., IGN./FUEL/STRG. LOCK (BLACK) (INT'L)(INCL. SWITCH, FUEL CAP, KEYS)
-
134014431-266 ASM., IGN./FUEL (BLACK) (INCL. SWITCH, FUEL CAP, KEYS)ASM., IGN./FUEL (BLACK) (INCL. SWITCH, FUEL CAP, KEYS)
-
145258213 KEY, BLANKKEY, BLANK
-
157518803 SCREWSCREW
