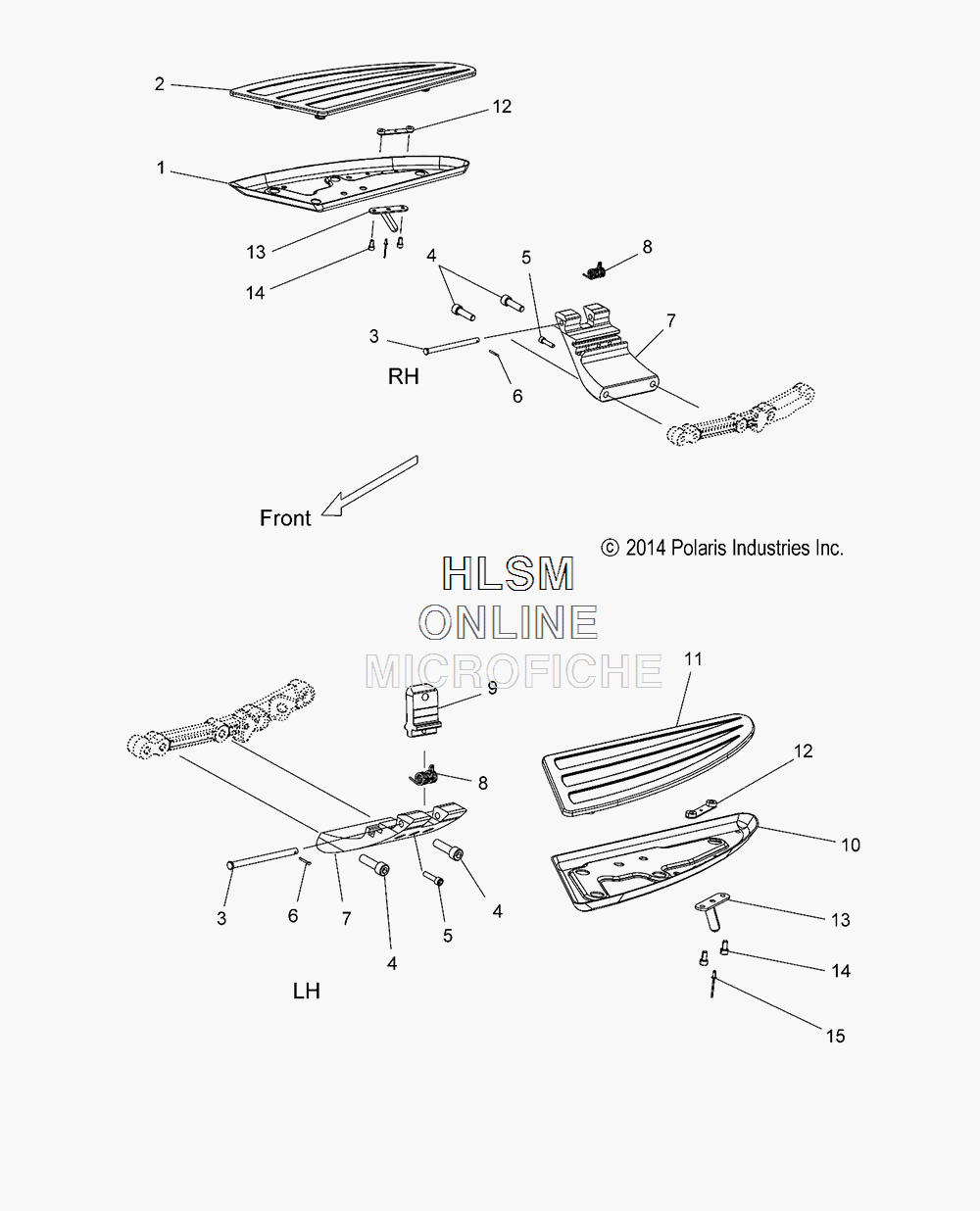

FLOORBOARD - DRIVER для Polaris Magnum Gloss Black/GFX [V17XMAAAAF] - 2017 года выпуска`
-
№АртикулНазвание
-
11021216-463 FLOORBOARD, DRIVER, RIGHT (FLAT BLACK)FLOORBOARD, DRIVER, RIGHT (FLAT BLACK)
-
25412876 PAD, FLOORBOARD, DRIVER, RIGHTPAD, FLOORBOARD, DRIVER, RIGHT
-
37661874 PIN, FLOORBOARD, SUPPORTPIN, FLOORBOARD, SUPPORT
-
47517367 SCREWSCREW
-
57518236 SCREWSCREW
-
67661094 PIN, COTTERPIN, COTTER
-
75135045-468 SUPPORT, FLOORBOARD (BLACK ANODIZED)SUPPORT, FLOORBOARD (BLACK ANODIZED)
-
87041623 SPRING, SUPPORT, FLOORBOARDSPRING, SUPPORT, FLOORBOARD
-
95137171-468 SUPPORT, SHIFT LEVEL (BLACK ANODIZED)SUPPORT, SHIFT LEVEL (BLACK ANODIZED)
-
101021215-463 FLOORBOARD, DRIVER, LEFT (FLAT BLACK)FLOORBOARD, DRIVER, LEFT (FLAT BLACK)
-
115412875 PAD, FLOORBOARD, DRIVER, LEFTPAD, FLOORBOARD, DRIVER, LEFT
-
121021264 ASM., BRACKET, FEELERASM., BRACKET, FEELER
-
131021214 ASM., FEELER, FLOORBOARDASM., FEELER, FLOORBOARD
-
147517781 SCREWSCREW
-
157662131 RIVETRIVET
