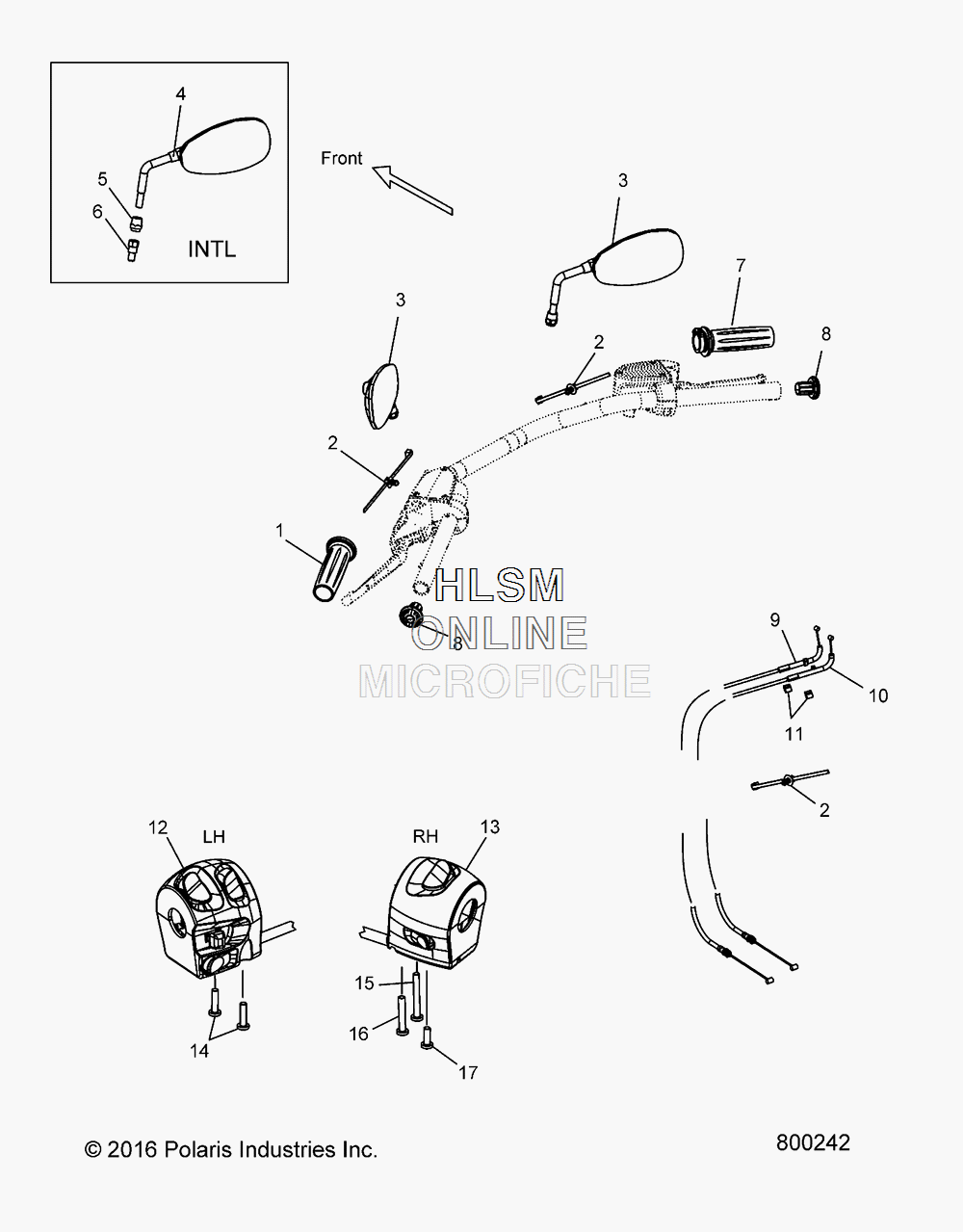

CONTROLS AND MIRRORS для Polaris Hammer S Gloss Black/GFX [V17CHRABAB] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5413019 GRIP, HANDLEBAR (1 IN) LEFT
    GRIP, HANDLEBAR (1 IN) LEFT
  • 2
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 3
    2633691-266 ASM., MIRROR, RIGHT, (BLACK) [INCL. JAM NUT][HAMMER S]
    ASM., MIRROR, RIGHT, (BLACK) [INCL. JAM NUT][HAMMER S]
  • 3
    2633690-266 ASM., MIRROR, LEFT, (BLACK) [INCL. JAM NUT][HAMMER S]
    ASM., MIRROR, LEFT, (BLACK) [INCL. JAM NUT][HAMMER S]
  • 3
    7547397-266 NUT, JAM, MIRROR, (BLACK) [1 PER]
    NUT, JAM, MIRROR, (BLACK) [1 PER]
  • 4
    2635251-266 ASM., MIRROR, RIGHT, (BLACK) [INCL. JAM NUT][INT'L]
    ASM., MIRROR, RIGHT, (BLACK) [INCL. JAM NUT][INT'L]
  • 4
    2635250-266 ASM., MIRROR, LEFT, (BLACK) [INCL. JAM NUT][INT'L]
    ASM., MIRROR, LEFT, (BLACK) [INCL. JAM NUT][INT'L]
  • 5
    7547455-266 NUT, JAM, MIRROR POST, (BLACK) [1 PER][INT'L]
    NUT, JAM, MIRROR POST, (BLACK) [1 PER][INT'L]
  • 6
    7547456-266 NUT, JAM, MIRROR, LEFT THREAD, (BLACK) [1 PER][INT'L]
    NUT, JAM, MIRROR, LEFT THREAD, (BLACK) [1 PER][INT'L]
  • 7
    5413501 GRIP, HANDLEBAR (1 IN) RIGHT
    GRIP, HANDLEBAR (1 IN) RIGHT
  • 8
    5439001 CAP, HANDLEBAR
    CAP, HANDLEBAR
  • 9
    7081452 CABLE, THROTTLE, PULL
    CABLE, THROTTLE, PULL
  • 10
    7081448 CABLE, THROTTLE, PUSH
    CABLE, THROTTLE, PUSH
  • 11
    5433039 CLIP, THROTTLE CABLE
    CLIP, THROTTLE CABLE
  • 12
    4012119-067 SWITCH, CONTROL, LEFT (BLACK)
    SWITCH, CONTROL, LEFT (BLACK)
  • 13
    4011357-067 SWITCH, CONTROL, RIGHT (BLACK)
    SWITCH, CONTROL, RIGHT (BLACK)
  • 14
    7517816 SCREW, 20MM (BLACK)
    SCREW, 20MM (BLACK)
  • 15
    7518890 SCREW, 55MM (BLACK)
    SCREW, 55MM (BLACK)
  • 16
    7518888 SCREW, 40MM (BLACK)
    SCREW, 40MM (BLACK)
  • 17
    7518886 SCREW, 12MM (BLACK)
    SCREW, 12MM (BLACK)
