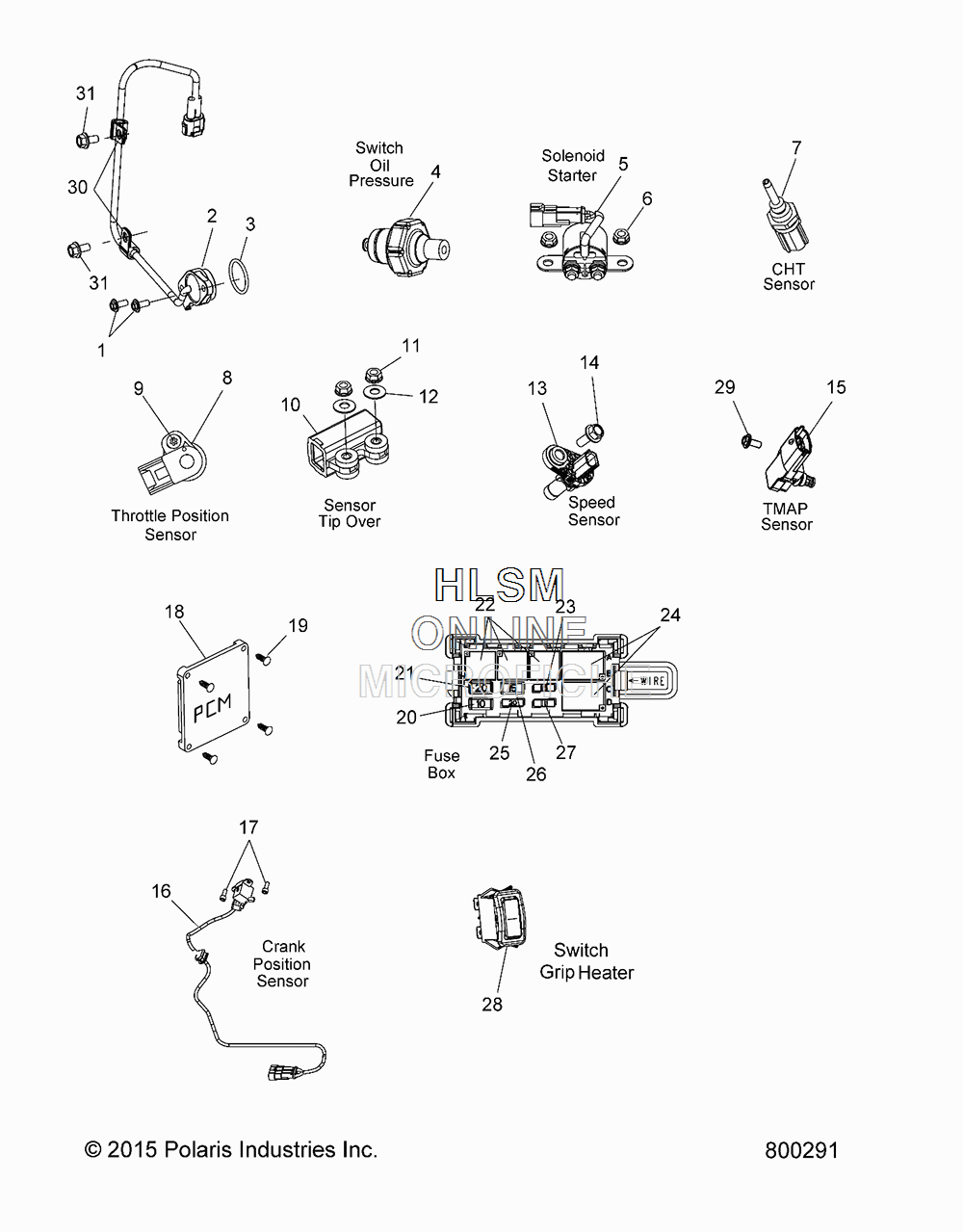

SWITCHES- SENSORS AND COMPONENTS 1 для Polaris Cross Country NOS II ABS ORANGE [V17XDAAAAE] - 2017 года выпуска`
-
№АртикулНазвание
-
17518338 SCREWSCREW
-
24013956 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
35412530 O-RINGO-RING
-
44012668 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
54014471 SOLENOID, STARTERSOLENOID, STARTER
-
67710495 NUTNUT
-
74014970 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
84012101 SENSOR, THROTTLE POSITION (45MM)SENSOR, THROTTLE POSITION (45MM)
-
97518901 SCREWSCREW
-
104011296 SENSOR, TIP OVER (45 DEG)SENSOR, TIP OVER (45 DEG)
-
117547126 NUTNUT
-
127556477 WASHER, FLATWASHER, FLAT
-
134011884 SENSOR, VEHICLE SPEEDSENSOR, VEHICLE SPEED
-
147517750 SCREWSCREW
-
152410422 SENSOR, T-MAPSENSOR, T-MAP
-
164012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
177518045 SCREWSCREW
-
184015775 PCM, SERVICEPCM, SERVICE
-
197670141 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
204011371 BREAKER, CIRCUIT (10 AMP.)BREAKER, CIRCUIT (10 AMP.)
-
214011372 BREAKER, CIRCUIT (20 AMP.)BREAKER, CIRCUIT (20 AMP.)
-
224016186 RELAY, SPST (12V, 20A)RELAY, SPST (12V, 20A)
-
234011406 CIRCUIT BREAKER (15 AMP.)CIRCUIT BREAKER (15 AMP.)
-
244016299 RELAY, SPST (12V, 35A)RELAY, SPST (12V, 35A)
-
252434017 FUSE, PARK (20 AMP.)FUSE, PARK (20 AMP.)
-
264011406 BREAKER, CIRCUIT (15 AMP.)BREAKER, CIRCUIT (15 AMP.)
-
272434016 FUSE (10 AMP.)FUSE (10 AMP.)
-
284011319 SWITCH, HANDWARMER, SPDTSWITCH, HANDWARMER, SPDT
-
297518923 SCREWSCREW
-
307080983 CLAMPCLAMP
-
317517278 SCREWSCREW
