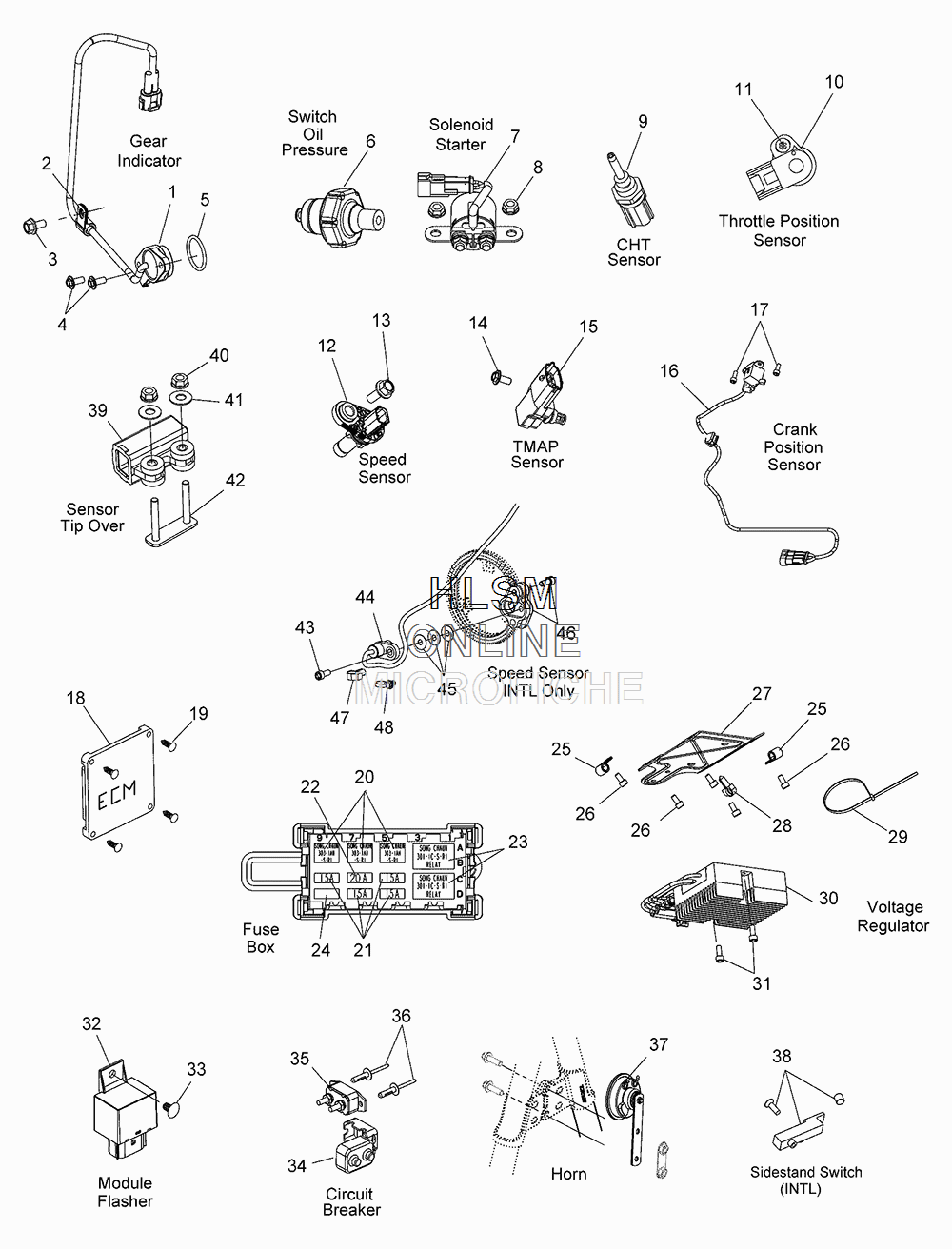

SWITCHES AND SENSORS AND COMPONENTS для Polaris HIGHBALL [V16WB36NA] - 2016 года выпуска`
-
№АртикулНазвание
-
14013956 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
27080983 CLAMPCLAMP
-
37517278 SCREWSCREW
-
47518338 SCREWSCREW
-
55412530 O-RINGO-RING
-
64012668 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
74014471 SOLENOID, STARTERSOLENOID, STARTER
-
87710495 NUTNUT
-
94012971 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
104012101 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
117518901 SCREWSCREW
-
124011884 SENSOR, VEHICLE SPEEDSENSOR, VEHICLE SPEED
-
137517750 SCREWSCREW
-
147519765 SCREWSCREW
-
152410422 SENSOR, T-MAPSENSOR, T-MAP
-
164012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
177518045 SCREWSCREW
-
184013160 PCM, SERVICEPCM, SERVICE
-
197670141 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
204011283 RELAY, SERIES 303RELAY, SERIES 303
-
212410280 FUSE, 15 AMP.FUSE, 15 AMP.
-
222434017 FUSE, 20 AMP.FUSE, 20 AMP.
-
234011284 RELAY, SERIES 301RELAY, SERIES 301
-
244013062 RESISTOR, 68 OHM, MINIRESISTOR, 68 OHM, MINI
-
257080983 CLAMPCLAMP
-
267517739 SCREWSCREW
-
275248079-408 BRACKET, CONNECTOR, ZINC/BLACKBRACKET, CONNECTOR, ZINC/BLACK
-
287670102 CLIPCLIP
-
297080138 CABLE TIECABLE TIE
-
304012718 REGULATOR, VOLT, BLACKREGULATOR, VOLT, BLACK
-
317517272 SCREWSCREW
-
324012103 MODULE, FLASHER, 10WMODULE, FLASHER, 10W
-
337670078 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
344010778 BOOTBOOT
-
352410332 BREAKER, CIRCUITBREAKER, CIRCUIT
-
357541931 NUTNUT
-
367081040 RIVETRIVET
-
374012448 HORNHORN
-
381017988 ASM., SIDE STAND SENSORASM., SIDE STAND SENSOR
-
384013130 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
384013131 MAGNET, SIDE STANDMAGNET, SIDE STAND
-
387519276 SCREWSCREW
-
394011296 SENSOR, TIP OVERSENSOR, TIP OVER
-
407710495 NUTNUT
-
417556477 WASHER, FLATWASHER, FLAT
-
421016624 PLATE, STUD, M4PLATE, STUD, M4
-
437517272 SCREWSCREW
-
444013251 SENSOR, WHEEL SPEED, ABSSENSOR, WHEEL SPEED, ABS
-
455255106 SHIM, SENSOR, ABSSHIM, SENSOR, ABS
-
465632575 MOUNT, SPEED SENSOR, ABS (FRONT)MOUNT, SPEED SENSOR, ABS (FRONT)
-
467517272 SCREW (FRONT)SCREW (FRONT)
-
477670102 CLIP, SILENCER (FRONT)CLIP, SILENCER (FRONT)
-
487081334 STRAP, TREE MOUNT, CABLE TIE (REAR)STRAP, TREE MOUNT, CABLE TIE (REAR)
