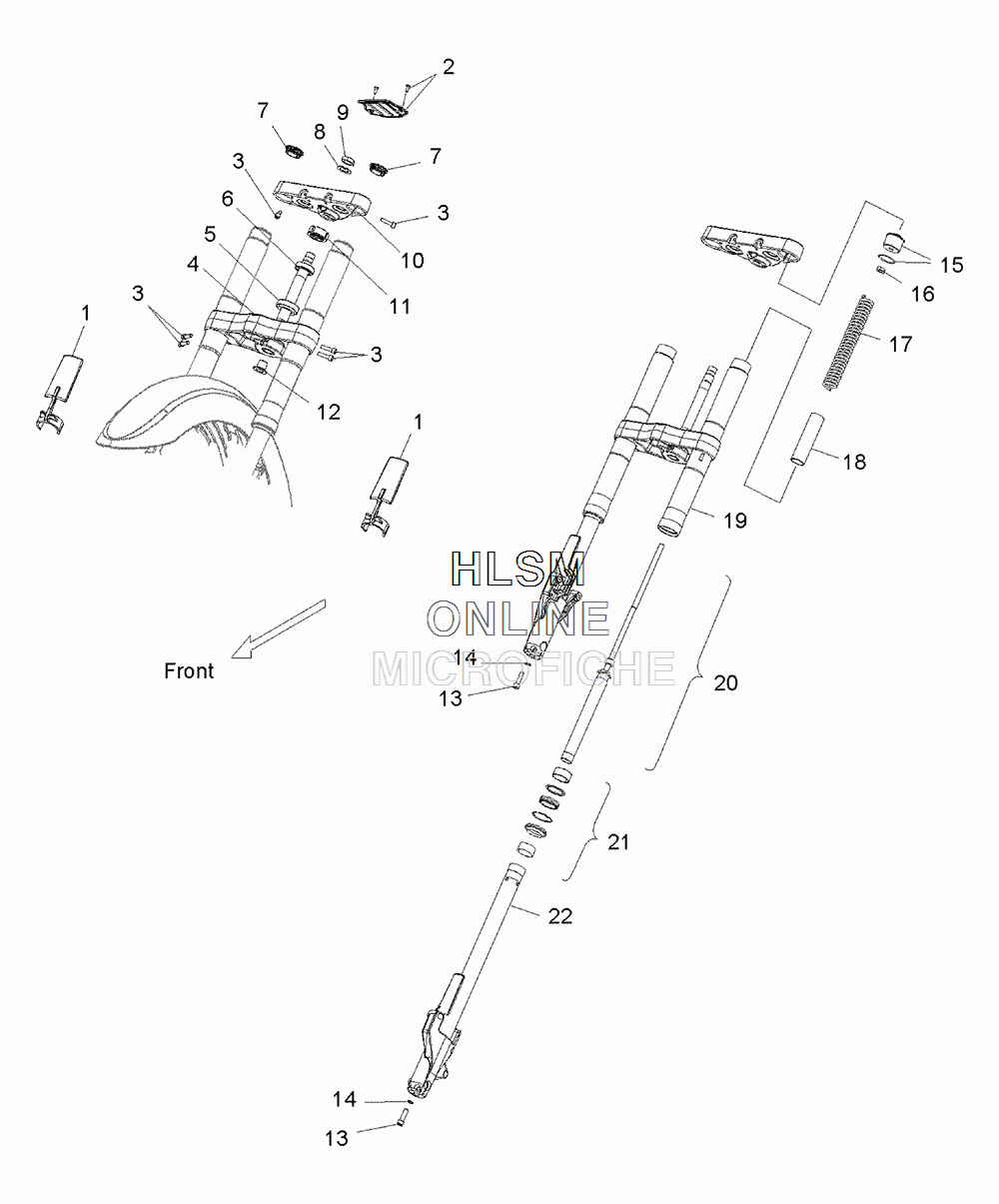

FRONT FORKS для Polaris HAMMER 8 BALL [V16HA36NB] - 2016 года выпуска

‹-+›
  • №
    Артикул
    Название
  • -
    1823815-1261 ASM., FORK W/BRK, LH, BLACK/BLACK (ALL)
    ASM., FORK W/BRK, LH, BLACK/BLACK (ALL)
  • -
    1823817-1261 ASM., FORK, NO BRK, RH, BLACK/BLACK
    ASM., FORK, NO BRK, RH, BLACK/BLACK
  • 1
    5438430 GUARD, FORK, INV., BLACK
    GUARD, FORK, INV., BLACK
  • 2
    5438513-156 COVER, TRIPLE CLAMP, CHROME
    COVER, TRIPLE CLAMP, CHROME
  • 2
    7518144 SCREW
    SCREW
  • 3
    7517361 SCREW
    SCREW
  • 4
    1823531-463 ASM., BRACKET, LOWER, 50MM, FLAT BLACK (INCL. 3)
    ASM., BRACKET, LOWER, 50MM, FLAT BLACK (INCL. 3)
  • 5
    3514416 BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    3514549 BEARING, BALL
    BEARING, BALL
  • 7
    5132481-156 CAP, CHROME
    CAP, CHROME
  • 8
    7556246 WASHER
    WASHER
  • 9
    5134148 NUT, TOP, TRIPLE CLAMP
    NUT, TOP, TRIPLE CLAMP
  • 10
    5135827-463 BRACKET, 50MM, UPPER, FLAT BLACK
    BRACKET, 50MM, UPPER, FLAT BLACK
  • 11
    5631935 NUT, STEERING HEAD
    NUT, STEERING HEAD
  • 12
    5412473 CAP, STEERING STEM
    CAP, STEERING STEM
  • 13
    7519082 BOLT
    BOLT
  • 14
    1500798 PACKING
    PACKING
  • 15
    5136807 CAP, COMPLETE (INCL. O-RING)
    CAP, COMPLETE (INCL. O-RING)
  • 15
    5413723 SEAL, O-RING
    SEAL, O-RING
  • 16
    7547446 NUT
    NUT
  • 17
    7043497 SPRING
    SPRING
  • 18
    7556495 SPACER
    SPACER
  • 19
    5632271-468 TUBE, OUTER, BLACK
    TUBE, OUTER, BLACK
  • 20
    5136804 CYLINDER COMPLETE
    CYLINDER COMPLETE
  • 21
    2204214 KIT, SEALS AND BUSHING (INCL. BUSHING, WASHER, OIL SEAL, DUST SEAL)
    KIT, SEALS AND BUSHING (INCL. BUSHING, WASHER, OIL SEAL, DUST SEAL)
  • 22
    5136811-067 TUBE, INNER, LH, BLACK (INCL. 3)
    TUBE, INNER, LH, BLACK (INCL. 3)
  • 22
    5137583-067 TUBE, INNER, RH, BLACK (INCL. 3)
    TUBE, INNER, RH, BLACK (INCL. 3)
