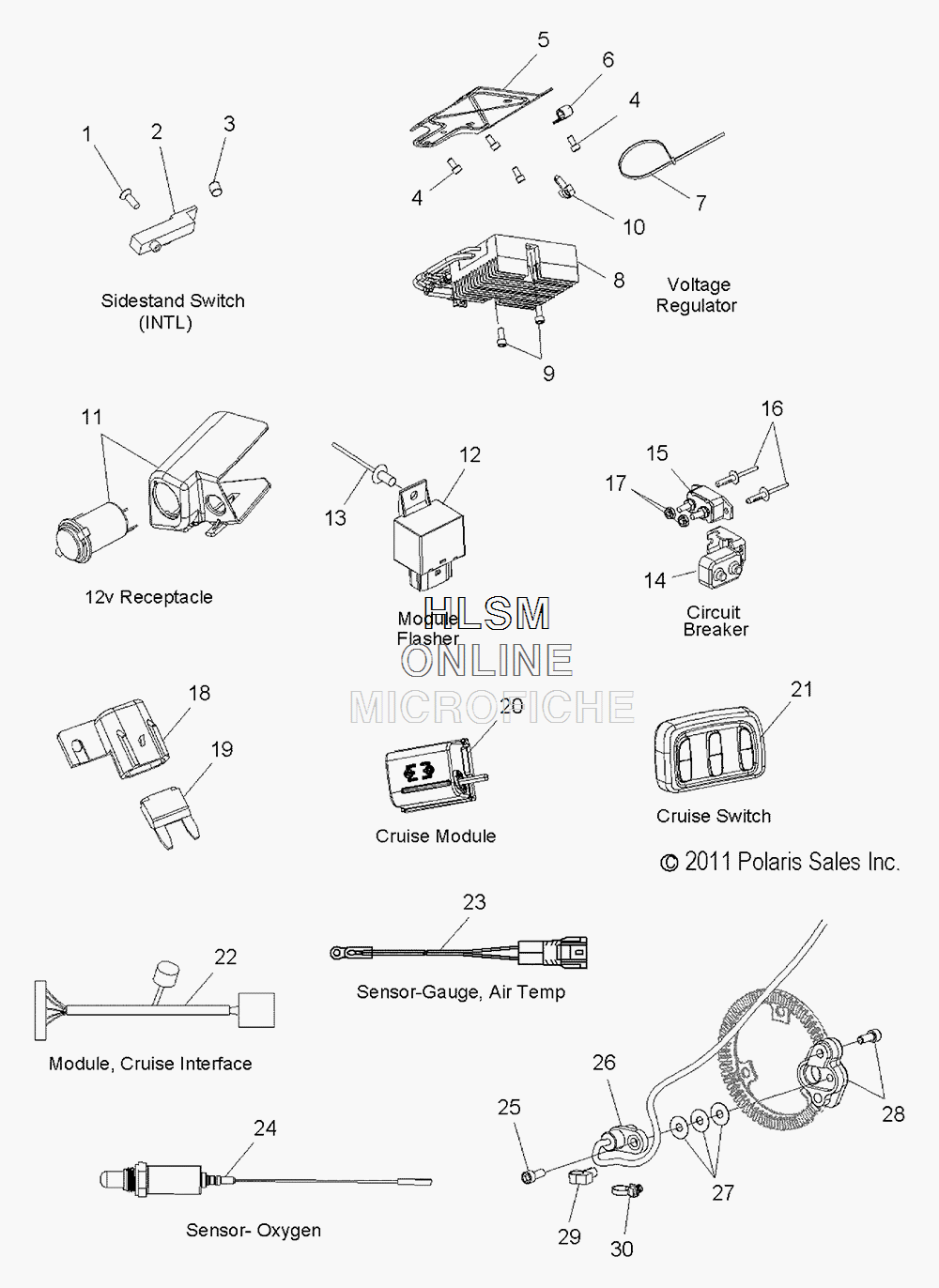

SWITCHES- SENSORS AND COMPONENTS 2 для Polaris CROSS COUNTRY [V16DB36NA] - 2016 года выпуска`
-
№АртикулНазвание
-
17519276 SCREW (INTL.)SCREW (INTL.)
-
24013130 SWITCH, SIDE STAND (INTL.)SWITCH, SIDE STAND (INTL.)
-
34013131 MAGNET, SIDE STAND (INTL.)MAGNET, SIDE STAND (INTL.)
-
47517739 SCREWSCREW
-
55248079-408 BRACKET, CONNECTOR, ZINC/BLACKBRACKET, CONNECTOR, ZINC/BLACK
-
67080983 CLAMPCLAMP
-
77080138 CABLE TIECABLE TIE
-
84012717 REGULATOR, VOLTAGE, BLACKREGULATOR, VOLTAGE, BLACK
-
97517272 SCREWSCREW
-
107670102 CLIPCLIP
-
114012393 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
115439002 HOUSING, SOCKET (TW)HOUSING, SOCKET (TW)
-
124013199 MODULE, FLASHER, LEDMODULE, FLASHER, LED
-
137081617 RIVETRIVET
-
144010778 BOOTBOOT
-
152410332 BREAKER, CIRCUIT, 40ABREAKER, CIRCUIT, 40A
-
167081040 RIVETRIVET
-
177541931 NUTNUT
-
184012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
192434015 FUSE, PARK, 30 AMPFUSE, PARK, 30 AMP
-
204012752 MODULE, CRUISEMODULE, CRUISE
-
214013049 SWITCH, CRUISE, HIGH CURRENT, BLACKSWITCH, CRUISE, HIGH CURRENT, BLACK
-
224013839 MODULE, INTERFACE, FERITEMODULE, INTERFACE, FERITE
-
232410443 SENSOR, GAUGE, AIR TEMPSENSOR, GAUGE, AIR TEMP
-
244011853 SENSOR, LAMBDA, LSF 4.2SENSOR, LAMBDA, LSF 4.2
-
257517272 SCREWSCREW
-
264013251 SENSOR, WHEEL SPEED, ABSSENSOR, WHEEL SPEED, ABS
-
275255106 SHIM, SENSOR, ABSSHIM, SENSOR, ABS
-
285632575 MOUNT, SPEED SENSOR, ABS (FRONT)MOUNT, SPEED SENSOR, ABS (FRONT)
-
287517272 SCREW (FRONT)SCREW (FRONT)
-
297670102 CLIP, SILENCER (FRONT)CLIP, SILENCER (FRONT)
-
307081334 STRAP, TREE MOUNT, CABLE TIE (REAR)STRAP, TREE MOUNT, CABLE TIE (REAR)
