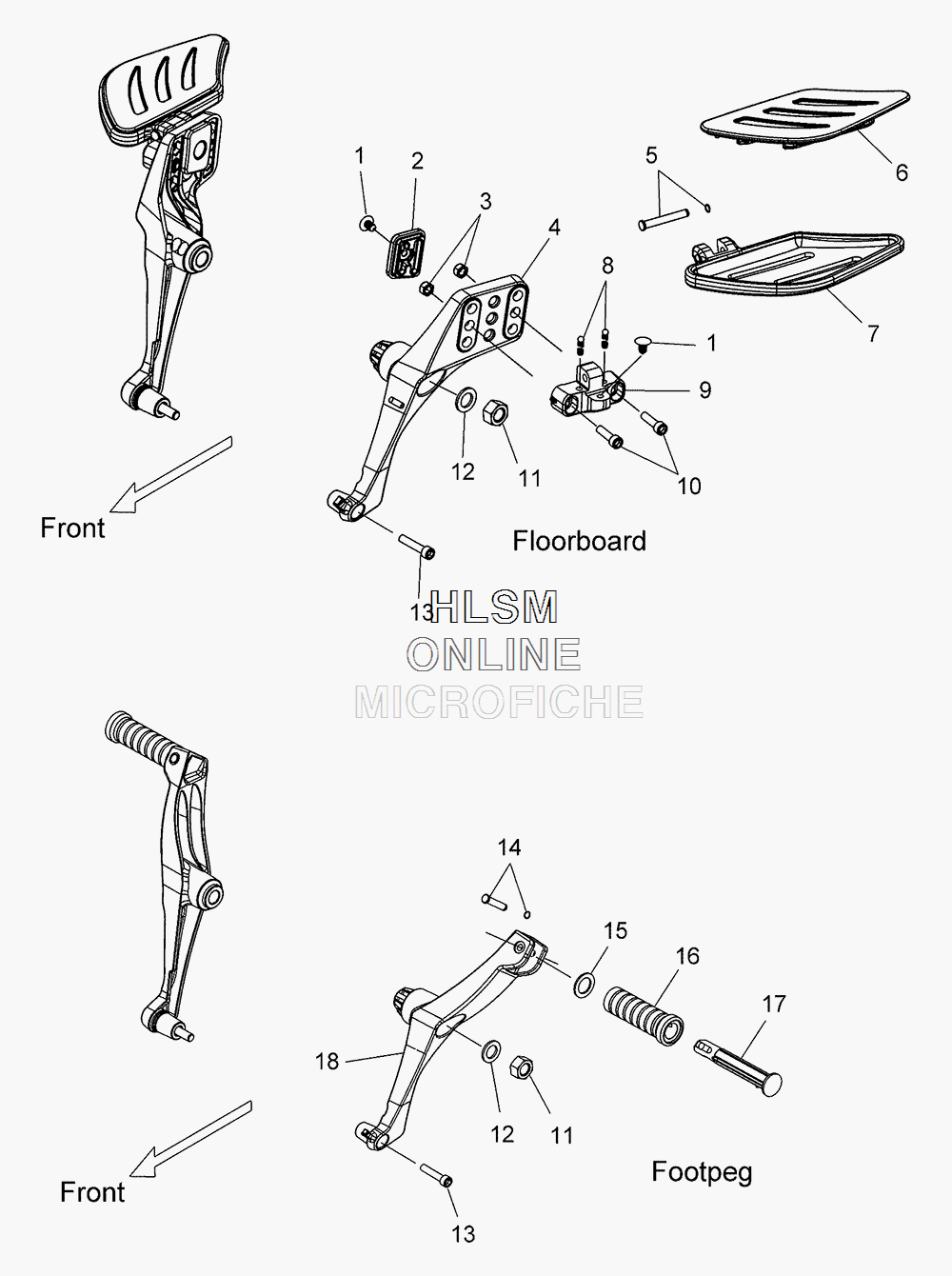

FLOORBOARD AND FOOTPEG - PASSENGER для Polaris CROSS COUNTRY 8-BALL [V16DW36NA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7670088 CLIP, PLASTIC DART
    CLIP, PLASTIC DART
  • 2
    5414251 BUMPER, FLOORBOARD, PASSENGER
    BUMPER, FLOORBOARD, PASSENGER
  • 3
    7547144 NUT, NYLOK
    NUT, NYLOK
  • 4
    5137787-626 MOUNT, FLOORBOARD, ADJ, LH, JET BLACK
    MOUNT, FLOORBOARD, ADJ, LH, JET BLACK
  • 4
    5137788-626 MOUNT, FLOORBOARD, ADJ, RH, JET BLACK
    MOUNT, FLOORBOARD, ADJ, RH, JET BLACK
  • 5
    7661979 PIN, PIVOT
    PIN, PIVOT
  • 5
    7710644 RING, RETAINING
    RING, RETAINING
  • 6
    5413024 PAD, PASSENGER, FLOORBOARD, LH
    PAD, PASSENGER, FLOORBOARD, LH
  • 6
    5413025 PAD, PASSENGER, FLOORBOARD, RH
    PAD, PASSENGER, FLOORBOARD, RH
  • 7
    5137338-626 FLOORBOARD, PASSENGER, LH, VIS, JET BLACK
    FLOORBOARD, PASSENGER, LH, VIS, JET BLACK
  • 7
    5137339-626 FLOORBOARD, PASSENGER, RH, VIS, JET BLACK
    FLOORBOARD, PASSENGER, RH, VIS, JET BLACK
  • 8
    5133944 BALL, DETENT
    BALL, DETENT
  • 8
    7042255 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 9
    5137789-626 MOUNT, FLOORBOARD, PIVOT, JET BLACK
    MOUNT, FLOORBOARD, PIVOT, JET BLACK
  • 10
    7517361 SCREW
    SCREW
  • 11
    7540001 NUT
    NUT
  • 12
    7556236 WASHER, FLAT
    WASHER, FLAT
  • 13
    7518178 SCREW (LH SIDE)
    SCREW (LH SIDE)
  • 13
    7518146 SCREW (RH SIDE)
    SCREW (RH SIDE)
  • 14
    7661980 PIN, PIVOT, FOOTPEG
    PIN, PIVOT, FOOTPEG
  • 14
    7710644 RING, RETAINING
    RING, RETAINING
  • 15
    7556274 WASHER, FOOTPEG, PIVOT
    WASHER, FOOTPEG, PIVOT
  • 16
    5412261 PAD, FOOTPEG, REAR
    PAD, FOOTPEG, REAR
  • 17
    5136035-411 FOOTPEG, LH, BRU
    FOOTPEG, LH, BRU
  • 17
    5136036-411 FOOTPEG, RH, BRU
    FOOTPEG, RH, BRU
  • 18
    5136384-463 MOUNT, FOOTPEG, PASSENGER, LH, FLAT BLACK
    MOUNT, FOOTPEG, PASSENGER, LH, FLAT BLACK
  • 18
    5136385-463 MOUNT, FOOTPEG, PASSENGER, RH, FLAT BLACK
    MOUNT, FOOTPEG, PASSENGER, RH, FLAT BLACK
