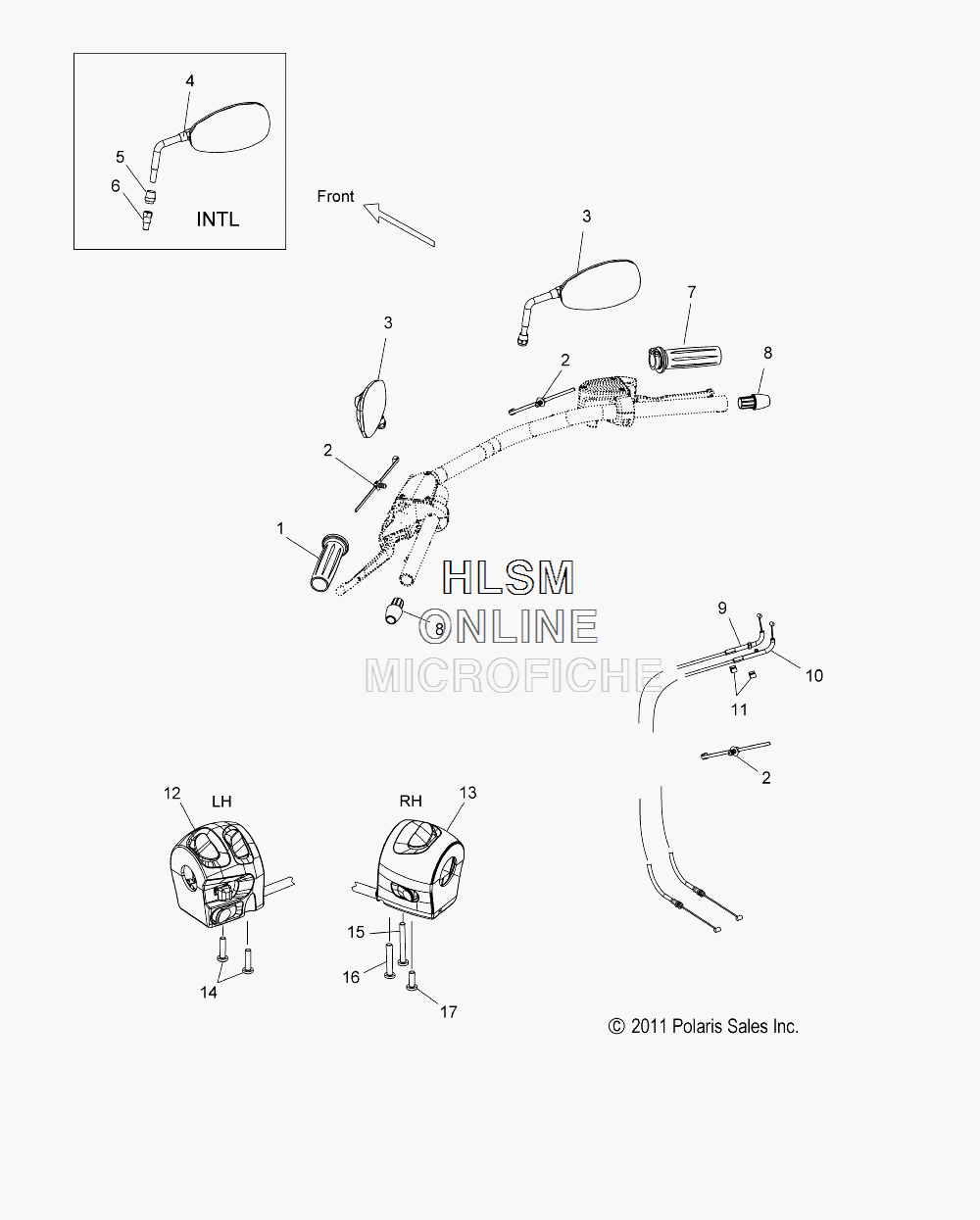

CONTROLS AND MIRRORS для Polaris VEGAS 8-BALL [GA36] - 2015 года выпуска`
-
№АртикулНазвание
-
15413019 GRIP, HANDLEBAR, 1 INCH, LEFT HANDGRIP, HANDLEBAR, 1 INCH, LEFT HAND
-
27081496 CLIP, ROUTINGCLIP, ROUTING
-
32633690-266 ASM., MIRROR, LEFT HAND, (BLACK) (INCL. JAM NUT)ASM., MIRROR, LEFT HAND, (BLACK) (INCL. JAM NUT)
-
32633691-266 ASM., MIRROR, RIGHT HAND, (BLACK) (INCL. JAM NUT)ASM., MIRROR, RIGHT HAND, (BLACK) (INCL. JAM NUT)
-
37547397-266 NUT, JAM, MIRROR, (BLACK)NUT, JAM, MIRROR, (BLACK)
-
42635250-266 ASM., MIRROR, LEFT HAND, (BLACK) (INCL. JAM NUT) (INT'L)ASM., MIRROR, LEFT HAND, (BLACK) (INCL. JAM NUT) (INT'L)
-
42635251-266 ASM., MIRROR, RIGHT HAND, (BLACK) (INCL. JAM NUT) (INT'L)ASM., MIRROR, RIGHT HAND, (BLACK) (INCL. JAM NUT) (INT'L)
-
57547455-266 NUT, MIRROR POST, (BLACK) (1 PER MIRROR) (INT'L)NUT, MIRROR POST, (BLACK) (1 PER MIRROR) (INT'L)
-
67547456-266 NUT, JAM, MIRROR, LEFT HAND THREAD, (BLACK) (1 PER MIRROR) (INT'L)NUT, JAM, MIRROR, LEFT HAND THREAD, (BLACK) (1 PER MIRROR) (INT'L)
-
75413501 GRIP, HANDLEBAR, 1 INCH, RIGHT HANDGRIP, HANDLEBAR, 1 INCH, RIGHT HAND
-
85437103 CAP, HANDLEBARCAP, HANDLEBAR
-
97081452 CABLE, THROTTLE, PULLCABLE, THROTTLE, PULL
-
107081448 CABLE, THROTTLE, PUSHCABLE, THROTTLE, PUSH
-
115433039 CLIP, THROTTLE CABLECLIP, THROTTLE CABLE
-
124012119-067 SWITCH, CONTROL, LEFT HAND, (BLACK)SWITCH, CONTROL, LEFT HAND, (BLACK)
-
134011357-067 SWITCH, CONTROL, RIGHT HAND, (BLACK)SWITCH, CONTROL, RIGHT HAND, (BLACK)
-
147517816 SCREW, 20MM, (BLACK)SCREW, 20MM, (BLACK)
-
157518890 SCREW, 55MM (BLACK)SCREW, 55MM (BLACK)
-
167518888 SCREW, 40MM (BLACK)SCREW, 40MM (BLACK)
-
177518886 SCREW, 12MM (BLACK)SCREW, 12MM (BLACK)
