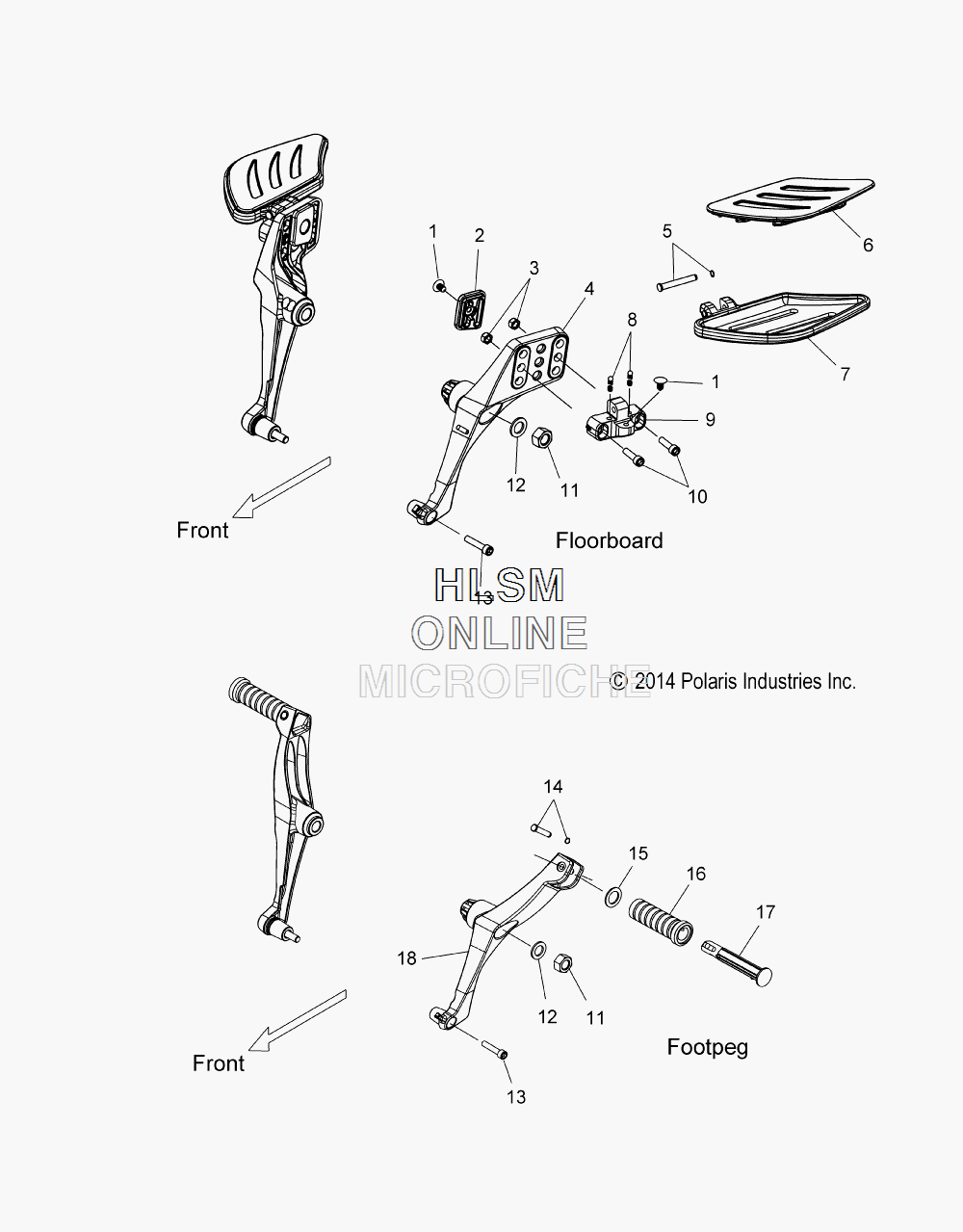

FLOORBOARD AND FOOTPEG - PASSENGER для Polaris CROSS COUNTRY/TOURING ALL OPTIONS [DW36] - 2015 года выпуска
-
№АртикулНазвание
-
17670088 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
25414251 BUMPER, FLOORBOARD, PASSENGERBUMPER, FLOORBOARD, PASSENGER
-
37547144 NUT, NYLOKNUT, NYLOK
-
45137787-626 MOUNT, FLOORBOARD, ADJ, LEFT HAND, (JET BLACK)MOUNT, FLOORBOARD, ADJ, LEFT HAND, (JET BLACK)
-
45137788-626 MOUNT, FLOORBOARD, ADJ, RIGHT HAND, (JET BLACK)MOUNT, FLOORBOARD, ADJ, RIGHT HAND, (JET BLACK)
-
57661979 PIN, PIVOTPIN, PIVOT
-
57710644 RING, RETAININGRING, RETAINING
-
65413024 PAD, PASSENGER, FLOORBOARD, LEFT HANDPAD, PASSENGER, FLOORBOARD, LEFT HAND
-
65413025 PAD, PASSENGER, FLOORBOARD, RIGHT HANDPAD, PASSENGER, FLOORBOARD, RIGHT HAND
-
75137338-626 FLOORBOARD, PASSENGER, LEFT HAND, VIS, (JET BLACK)FLOORBOARD, PASSENGER, LEFT HAND, VIS, (JET BLACK)
-
75137339-626 FLOORBOARD, PASSENGER, RIGHT HAND, VIS, (JET BLACK)FLOORBOARD, PASSENGER, RIGHT HAND, VIS, (JET BLACK)
-
85133944 BALL, DETENTBALL, DETENT
-
87042255 SPRING, COMPRESSIONSPRING, COMPRESSION
-
95137789-626 MOUNT, FLOORBOARD, PIVOT, (JET BLACK)MOUNT, FLOORBOARD, PIVOT, (JET BLACK)
-
107517361 SCREWSCREW
-
117540001 NUTNUT
-
127556236 WASHER, FLATWASHER, FLAT
-
137518178 SCREW (LEFT HAND SIDE)SCREW (LEFT HAND SIDE)
-
137518146 SCREW (RIGHT HAND SIDE)SCREW (RIGHT HAND SIDE)
-
147661980 PIN, PIVOT, FOOTPEGPIN, PIVOT, FOOTPEG
-
147710644 RING, RETAININGRING, RETAINING
-
157556274 WASHER, FOOTPEG, PIVOTWASHER, FOOTPEG, PIVOT
-
165412261 PAD, FOOTPEG, REARPAD, FOOTPEG, REAR
-
175136035-411 FOOTPEG, LEFT HAND, BRUFOOTPEG, LEFT HAND, BRU
-
175136036-411 FOOTPEG, RIGHT HAND, BRUFOOTPEG, RIGHT HAND, BRU
-
185136384-463 MOUNT, FOOTPEG, PASSENGER, LEFT HAND, (FLAT BLACK)MOUNT, FOOTPEG, PASSENGER, LEFT HAND, (FLAT BLACK)
-
185136385-463 MOUNT, FOOTPEG, PASSENGER, RIGHT HAND, (FLAT BLACK)MOUNT, FOOTPEG, PASSENGER, RIGHT HAND, (FLAT BLACK)
